FSO300-700 Backstop Cam Clutch One-Way Bearing
- Shanghai ; Ningbo for fso one way bearing
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
MX 22 One Way Backstop Bearing ( Cam Clutch )
-
Quality NFR Roller Type Freewheel One Way Clutch Bearing
-
FE443Z FE448Z Roller Clutch One Way Clutch Bearing
-
DC7221B Indexing Clutch Bearing With Sprag Type in High Quality
-
One Way Clutch FWD BRS Series Clutch With High Quality in China
-
BSEU25-25 Cam Clutch Backstop With Special Outer Race
Product Details
| Brand Name | SUMA of fso one way bearing | Bore Size | 15, 70 | |
| Outside Diameter | 76, 180 | Model Number | HPI FSO | |
| Precision Rating | P6 | Seals Type | sealed | |
| Place of Origin | Jiangsu, China |
Product Description

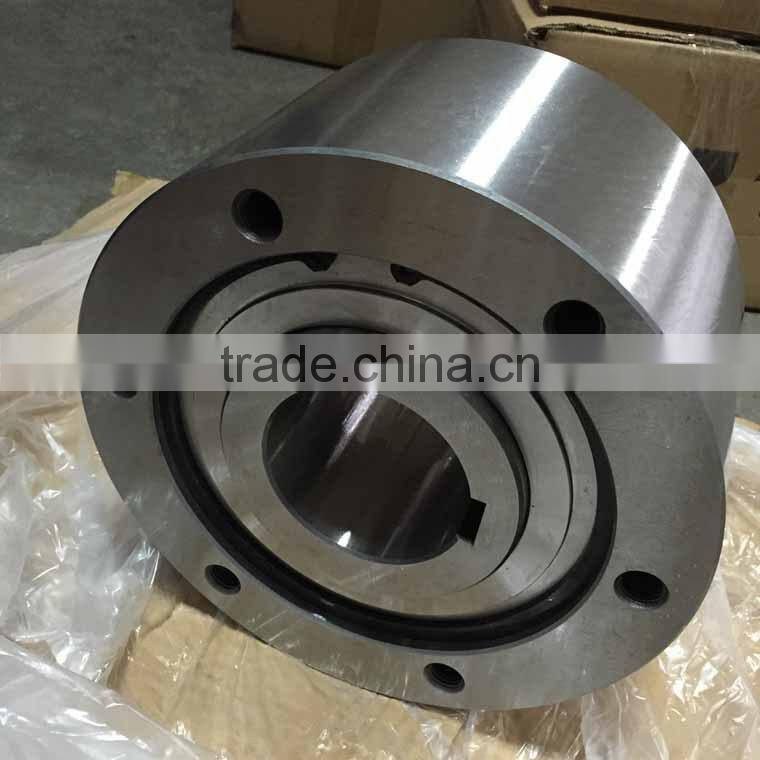

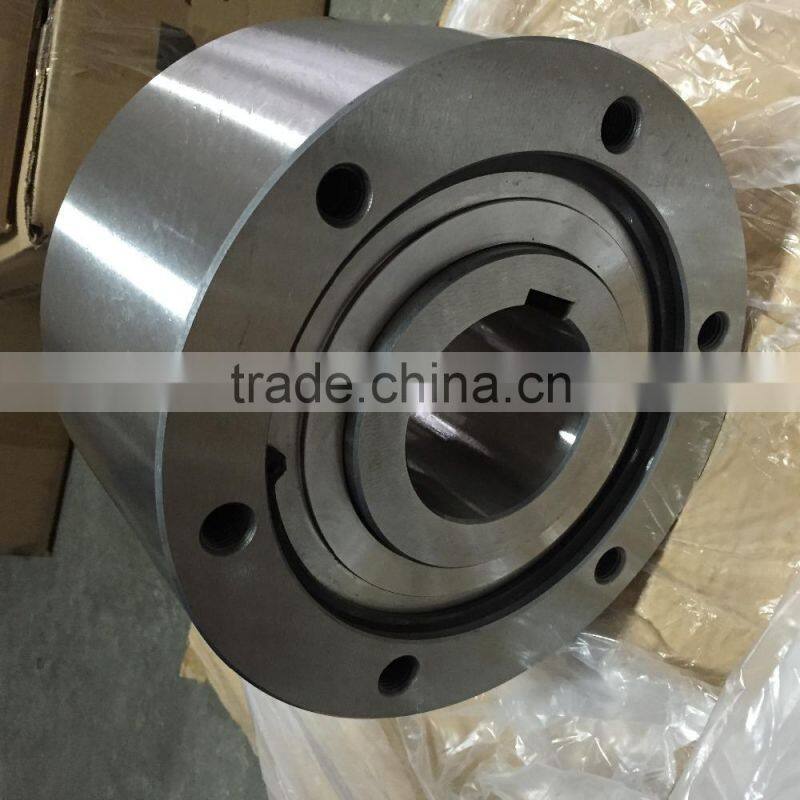

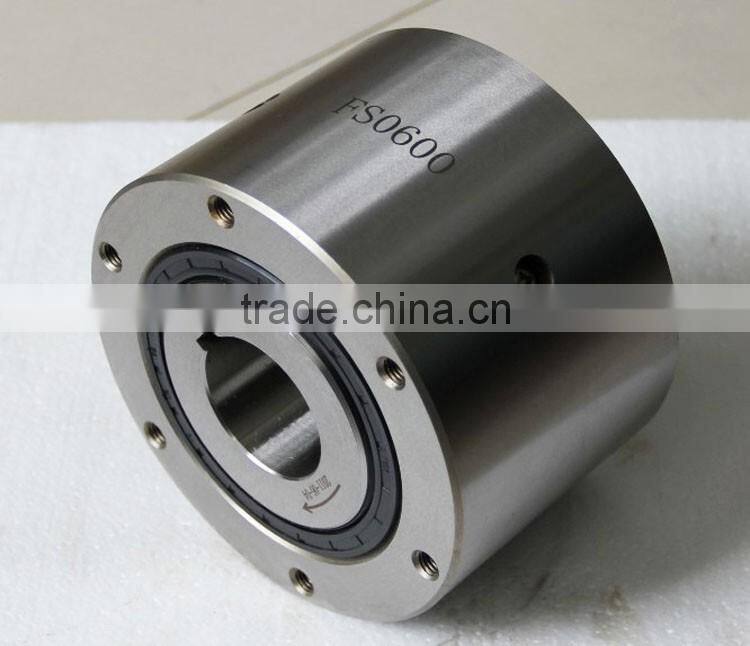

FSO300-700 Backstop Cam Clutch One-Way Bearing
Features of fso one-way bearing
Type HPI/FSO is sealed, sprag type freewheel, self contained, bearing supported,with two ball bearings
Product name | one direction sprag clutch |
Model | HPI700 |
Material | GCr15 |
Inner diameter | 60mm |
Outer diameter | 180.975mm |
Torque capacity | 6900Nm |
Weight | 19kg |
Structure | Sprag type |
Application | Gear Units, Inclinded conveyor, Electric motors, elevators |
Package | Wooden box or customizable |
Payment terms | TT. L/C, D/A,D/P,Western Union,Payapl |
Delivery time | 2-4 days for the sample, 7 days for big order |

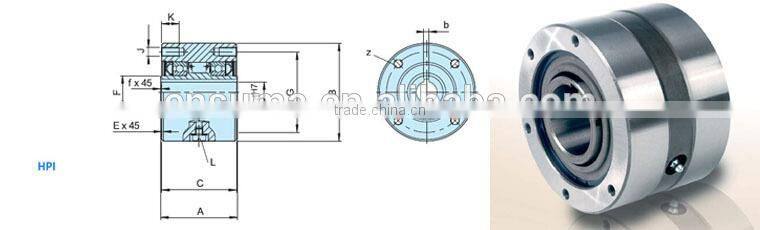

Catalogue of fso one-way bearing
| Type | Size | Overrunning speeds | Weight | Torque Drag | |||||||||||
| HPI | HPI | dH7-bxh | d4) | A | B | C | E | F | G | K | f | TR | |||
| TKN1) | nmax2) | min-max | -0.05 | ||||||||||||
| [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | [Ncm] | ||
| 300 | 379 | 3000/900 | 15-5x5 | 12...19 | 63.5 | 76.2 | 60.45 | 1.6 | 28.58 | 66.67 | 13 | 0.8 | 1.6 | 18 | |
| 400 | 407 | 2800/850 | 18-6x6 | 12...22 | 69.85 | 88.9 | 68.07 | 1.6 | 30 | 73 | 13 | 0.8 | 2.7 | 27 | |
| 500 | 1621 | 2500/800 | 30-8x7 | 19...33 | 88.9 | 107.95 | 85.73 | 1.6 | 45 | 92 | 16 | 1.5 | 4.8 | 31 | |
| 40-12x8 | |||||||||||||||
| 600 | 3105 | 2200/750 | 45-14x9 | 24...57 | 95.25 | 136.525 | 92.2 | 1.6 | 63.5 | 120.6 | 16 | 1.6 | 8.6 | 62 | |
| 50-14x6 | |||||||||||||||
| 50-14x9 | |||||||||||||||
| 700 | 6900 | 1600/450 | 60-18x11 | 48...82 | 127 | 180.975 | 123.85 | 1.6 | 90 | 158.75 | 20 | 1.6 | 19 | 156 | |
| 65-18x11 | |||||||||||||||
| 70-20x12 | 101.65 |

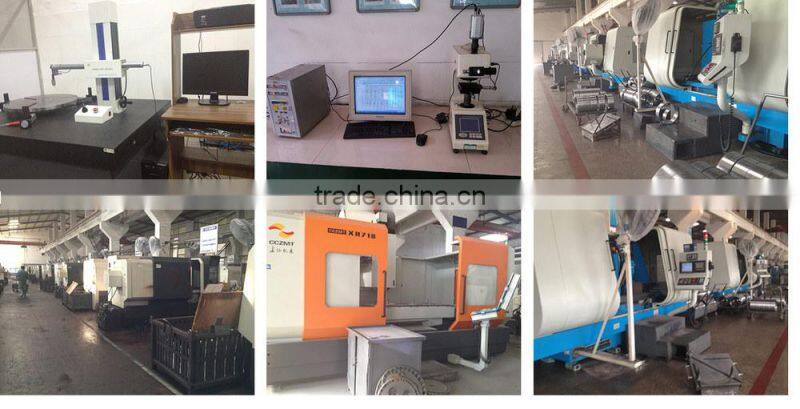

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Accept Payment terms are: L/C,D/A,D/P,T/T,Western Union,Money Gram
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the fso one-way bearing?
A: Usually fso one-way bearing are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of fso one-way bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the fso one-way bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
