Sprag Manufactures CSK15 One Way Bearings by Size
- Shanghai ; Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Brand Name | SUMA or OEM | Bore Size | 15, | |
| Outside Diameter | 35, | Model Number | CSK15 | |
| Precision Rating | P0 | Seals Type | sealed | |
| Place of Origin | Jiangsu, China |
Product Description

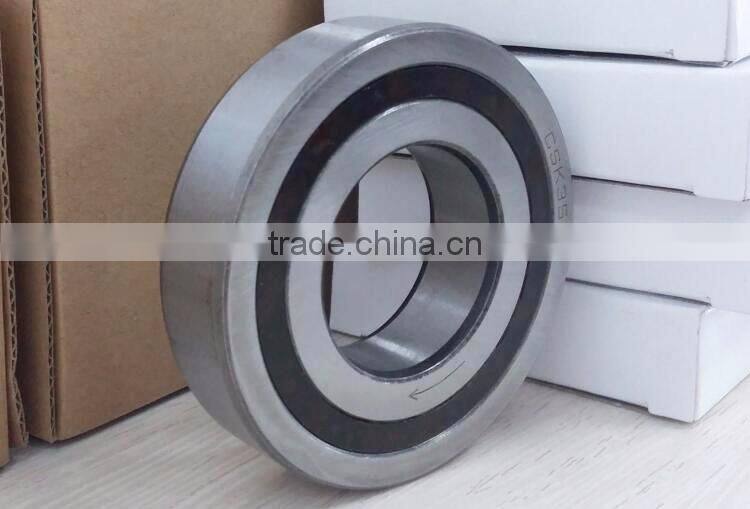

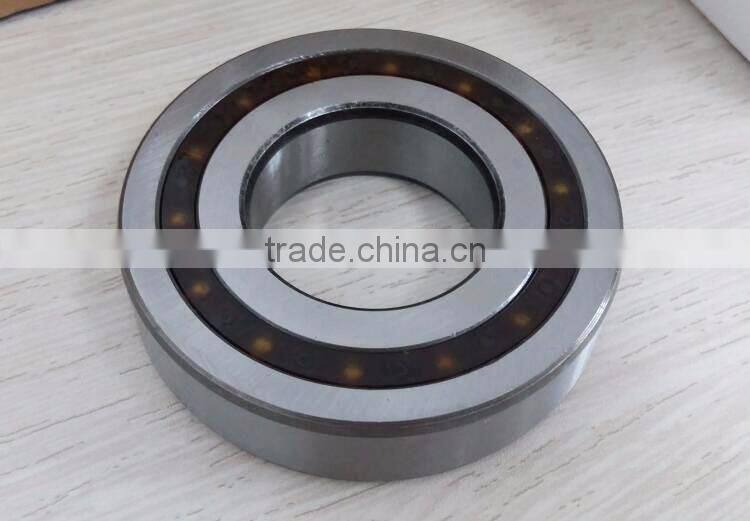

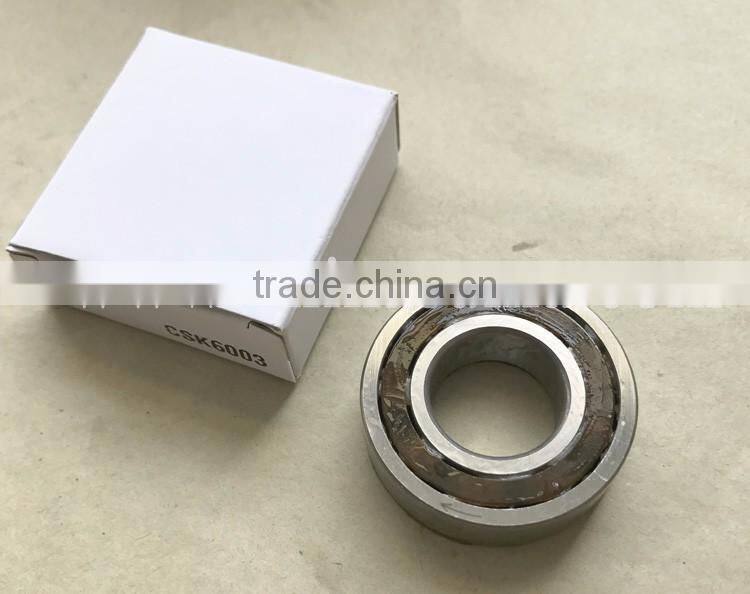

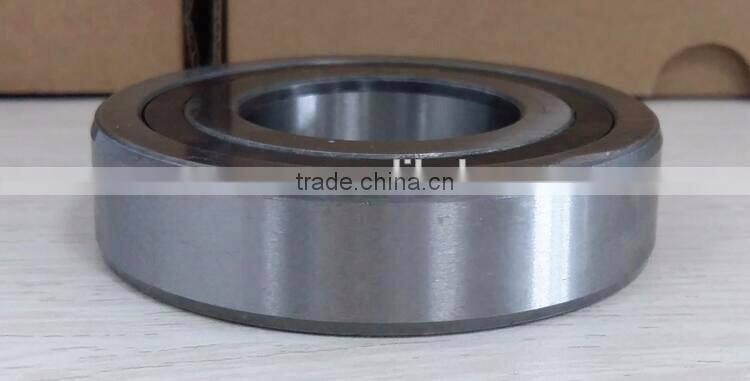

Sprag manufactures CSK15 one way bearings by size
Type CSK is a sprag type freewheel integrated into a 62 series ball bearing (except sizes 8 and 40). It is bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm. The use of additional "nylos" type seals is recommended especially when the working temperature exceeds 50°C. Oil bath lubrication is also possible.
All the CSK versions are equipped with "form chromed" sprags. This process increases several times the overrunning life time. Torque transmission is ensured by a press fit assembly into a rigid outer housing with N6 tolerance, and onto a shaft with n6 tolerance. The initial bearing radial clearance is set at C5, and is reduced if using the press fit as specified.
Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60C. CSK..2RS is 5 mm wider but is equiped with lip seals to be water splash resistant.
| Type | Size | Bearing series | Bearing loads | Weight | Drag torque | |||||
| dynamic | static | |||||||||
| CSK(KK) | d | TKN1) | N max | D | L | C | C0 | TR | ||
| [mm] | [Nm] | [min-1] | [mm] | [mm] | [kN] | [kN] | [kg] | [Ncm] | ||
| 8* | – | 2.5 | 15000 | 22 | 9 | 3.28 | 0.86 | 0.015 | 0.5 | |
| 12 | 6201 | 9.3 | 10000 | 32 | 10 | 6.1 | 2.77 | 0.04 | 0.7 | |
| 15 | 6202 | 17 | 8400 | 35 | 11 | 7.4 | 3.42 | 0.06 | 0.9 | |
| 17 | 6203 | 30 | 7350 | 40 | 12 | 7.9 | 3.8 | 0.07 | 1.1 | |
| 20 | 6204 | 50 | 6000 | 47 | 14 | 9.4 | 4.46 | 0.11 | 1.3 | |
| 25 | 6205 | 85 | 5200 | 52 | 15 | 10.7 | 5.46 | 0.14 | 2 | |
| 30 | 6206 | 138 | 4200 | 62 | 16 | 11.7 | 6.45 | 0.21 | 4.4 | |
| 35 | 6207 | 175 | 3600 | 72 | 17 | 12.6 | 7.28 | 0.3 | 5.8 | |
| 40 | – | 325 | 3000 | 80 | 22 | 15.54 | 12.25 | 0.5 | 7 | |
| CSK..2RS | 8** | 2.5 | 15000 | 22 | 9 | 3.28 | 0.86 | 0.015 | 0.8 | |
| 12 | – | 9.3 | 10000 | 32 | 14 | 6.1 | 2.77 | 0.05 | 3 | |
| 15 | 17 | 8400 | 35 | 16 | 7.4 | 3.42 | 0.07 | 4 | ||
| 17 | 30 | 7350 | 40 | 17 | 7.9 | 3.8 | 0.09 | 5.6 | ||
| 20 | 50 | 6000 | 47 | 19 | 9.4 | 4.46 | 0.145 | 6 | ||
| 25 | 85 | 5200 | 52 | 20 | 10.7 | 5.46 | 0.175 | 6 | ||
| 30 | 138 | 4200 | 62 | 21 | 11.7 | 6.45 | 0.27 | 7.5 | ||
| 35 | 175 | 3600 | 72 | 22 | 12.6 | 7.28 | 0.4 | 8.2 | ||
| 40 | – | 325 | 3000 | 80 | 27 | 15.54 | 12.25 | 0.6 | 10 | |
NOTE
*) One Z seal on the bearing side only. Looking from this side, the outer race runs free in the counterclockwise direction
**) Only one RS seal on the ball bearing side looking from this side, the outer race runs free in the counterclock-wise direction
MOUNTING EXAMPLE
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Advantages
1. Advanced producing equipment.
2. Strict requirement for the raw material
3. Complete&perfect process flow
4. Good quality of each batch of the product
5. Different grades of price for different quality
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: Why do we choose your company?
A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples of one way clutch bearing to check quality first.
If you have any needs,pls contact me at any time!
