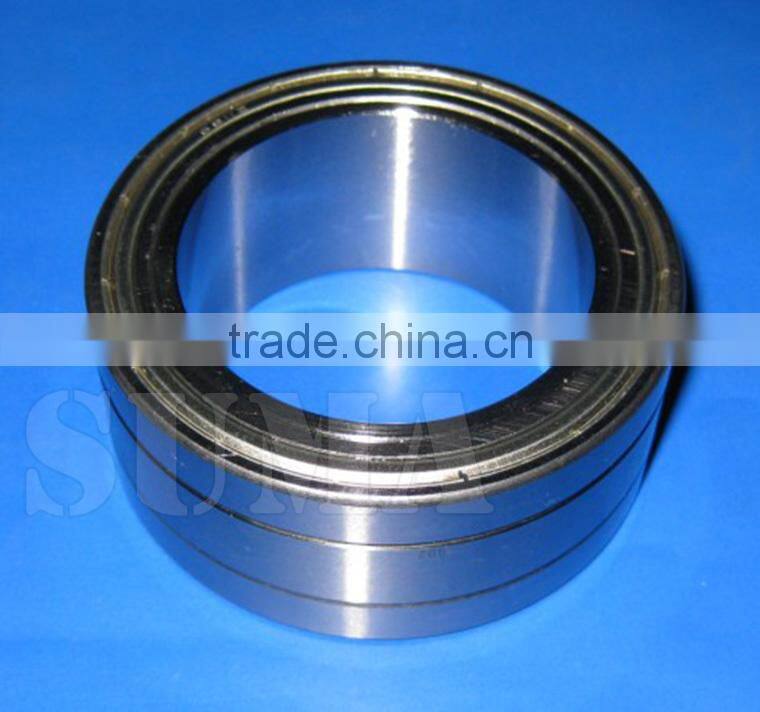

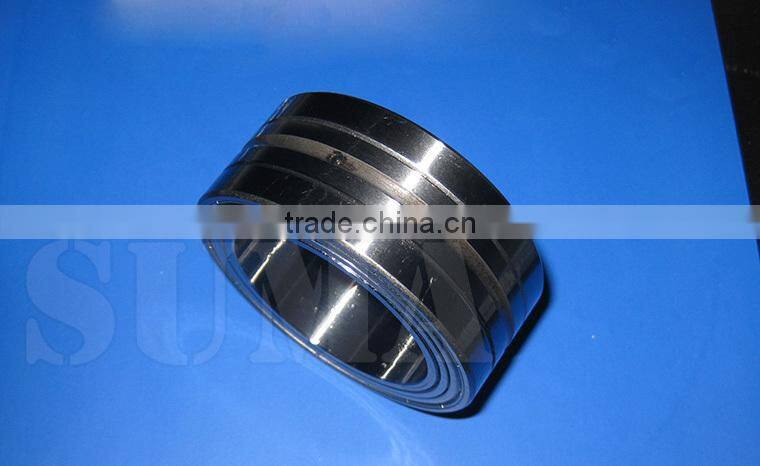

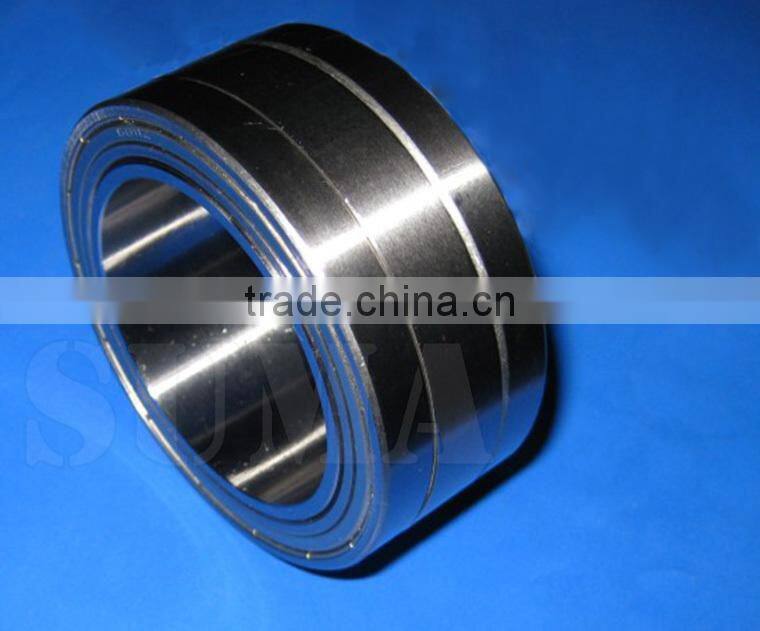

GFK45 Sprag Type One-Way Bearing for High Tension Switch
- Shanghai ; Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
DC One Way Bearing Sprag Cage/ One Way Bearing Race/sprag Clutch With Races
-
Industrial Spare Parts Type AA Roller Bearing
-
AE12 Roller Type Rubber Wheel Bearing With Backstop Function
-
NF40 One Way Clutch Printer Machine Bearing
-
Bearing Supported HPI 300-700 Sprag Type Freewheel Clutch Bearing Used for Reducer
-
Sprag Type Freewheel One Way Clutch Bearing SMZ60
Product Details
| Brand Name | Suma | Bore Size | 45, | |
| Outside Diameter | 68, | Model Number | GFK45 | |
| Precision Rating | P6 | Seals Type | sealed | |
| Place of Origin | Jiangsu, China |
Product Description
| GFK45 Sprag Type One-Way Bearing for High Tension Switch | ||
| Model | GFK45 | |
| Material | GCr15 | |
| Type | sprag | |
| Inner Diameter | 45mm | |
| Outer Diameter | 68mm | |
| Weight | 0.34kg | |
| With | 30mm | |
| Overrunning Speed | Inner Race | 3800r/min |
| Outer Race | 2500r/min | |
| Application | general machinery,packing machinery,printing machinery,conveyor machinery,high pressure switch,etc. | |
Features

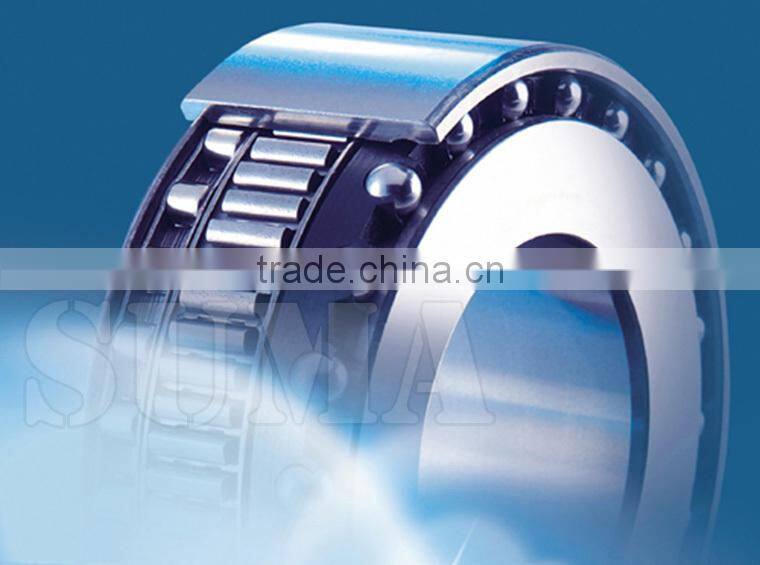

1.Sprag Type:Type GFK is a sprag type freewheel integrated into a 59.series ball bearing. This design provides high torque capacity for minimal outside diameter.
2.It is a bearing supported type, delivered grease lubricated. Oil bath lubrication is also possible. Whatever the lubrication type, seals should be provided.
3.Installation:Torque transmission must be ensured by a press fit assembly into a rigid outer housing with R6 tolerance, and onto a shaft with p5 tolerance. Initial radial clearance has been provided to take into account this heavy press fit.
4.Operating temperature range: –20°C to +100°C. Peaks up to +120°C are acceptable for short periods. Please contact us for higher temperatures.
Detail Images
Main Technical Specification
Type | Size | Bearing Series |
| Overrunning speeds | Outside Diameter | Height |
| Bearing loads | Weight | ||||
Rollers dyn. | Balls dyn. | Rollers Stat. | Balls Stat. | ||||||||||
GFK | d (mm) |
| TKN1) (Nm) | nimax2) (min-1) | namax3) (min-1) | D (mm) | L (mm) | r (mm) | C (N) | C (N) | C0 (N) | C0 (N) |
(kg) |
20 | 5904 | 51 | 5500 | 4000 | 37 | 23 | 0.5 | 5600 | 4400 | 2900 | 2750 | 0.09 | |
25 | 5905 | 65 | 5300 | 3800 | 42 | 23 | 0.5 | 6300 | 5300 | 3450 | 3350 | 0.11 | |
30 | 5906 | 95 | 5000 | 3500 | 47 | 23 | 0.5 | 7700 | 5500 | 4600 | 3650 | 0.13 | |
35 | 5907 | 204 | 4600 | 3200 | 55 | 27 | 1 | 8200 | 8500 | 5200 | 5700 | 0.20 | |
40 | 5908 | 315 | 4200 | 3000 | 62 | 30 | 1 | 8650 | 9300 | 5750 | 6700 | 0.30 | |
45 | 5909 | 370 | 3800 | 2500 | 68 | 30 | 1 | 9200 | 9700 | 6350 | 7300 | 0.34 | |
50 | 5910 | 460 | 3400 | 2200 | 72 | 30 | 1 | 9650 | 10000 | 6950 | 7800 | 0.36 | |
Main application
General machinery,packing machinery,printing machinery,conveyor machinery,food-making machiney,plastic-processing machinery,petrochemical machinery,handling equipment,high pressure switch,fan,etc.
| Changzhou Suma Precsion Machinery Co.,Ltd |
Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and needle roller bearing with high technology

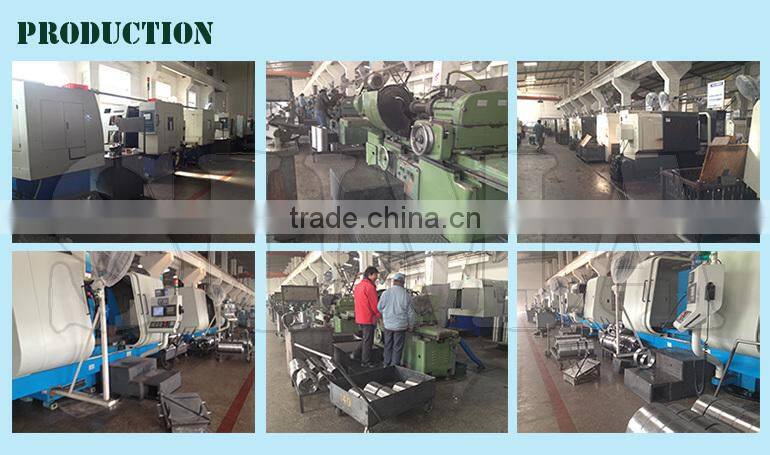

| Production Flow |
Q: Why do we choose your company?
A: We always insist quality firstl. We have our bearing factory, therefore we have advantage in quality control and price of cylindrical roller bearing.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples of SL cylindrical roller bearing to check quality first.
