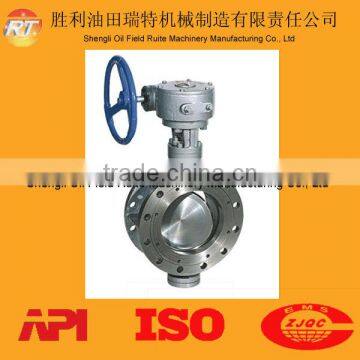

Oilfield equipment API standard Butterfly Valves high quality manufacturer

Specifications

Specifications:

FEATURES
Body

• One piece ribbed wafer and lugged body is Polyester coated as standard for a superior appearance and excellent resistance to external corrosion.
• Heavy duty ISO5211 Top plate is slotted for use of actuation and engineered to accept direct mounting of operators.
• Standard extended neck provides full clearance for 2" of insulation.

Disc

• Streamlined design offers higher CV and lower pressure drop.
• Machined Double D drive ensures close tolerances thereby elimating the imprecision commonly found in the cast-in drives offered by our competitors.

Shaft

• Triple shaft seals support the primary seal on machined radius of the disc. Our triple shaft seals ensure a dry stem design.
• Two secondary shaft seals are located inside the seat shaft holes and an environmental shaft seal eliminates contaminates from entering the shaft bore.
• Two self lubricated bronze bearings offer consistent torque value and eliminate side loading.

Disc/Shaft Connection

• A high strength machined Double D drive ensures a positive shaft to disc connection.
• Disc floats inside the seat for positive sealing and extended seat life.
• No pins or bolts are exposed to flow.
• Offset shaft retainers mechanically retain the shaft in the body ensuring a blow out proof design.

    Manual Controls

Handle Kit
The Handle Kit is designed for manual on/off and throttling service for quarter turn, resilient seated butterfly valves ranging from 2" - 12". The Polyester coated ductile iron handle kit includes the handle assembly with a locking lever and bolt on plate notched at 10 degree increments. The notched plate also includes on/off stops to prevent over travel of the handle and can be used with a padlock as standard. Other available options include an Infinite Throttling Handle Kit, Memory Stop and a 2" Square Nut.


Handwheel Gear Kit
The Handwheel Gear Operator is designed for manual on/off and throttling service for quarter turn butterfly valves ranging from 2"?-12".The Handwheel gear operator's constructed with a heavy duty, Polyester coated cast iron housing, is Completely self lubricated and weatherproof. Along with the gear operator, it also includes a valve position indicator, ductile iron Handwheel and mechanical travel stops for field adjustment. Other available options include a Chainwheel Kit, Padlock Kit and a 2" Square Nut.

SPECIFICATIONS
Materials of Construction 2" - 12"
Body

• Cast Iron ASTM A126 Class B
• Ductile Iron ASTM A-536 (65-45-12)
• Ductile Iron ASTM A395 (60-40-18)

• Electroless Nickel Plated Ductile Iron ASTM A536 (65-45-12)
• Aluminum Bronze ASTM B148 (954)
• Nylon 11 Coated Ductile Iron ASTM A536 Grade (65-45-12)
• 316 Stainless Steel ASTM A351 (CF8M)

• 316 Stainless Steel ASTM A276 Type 316
• 416 Stainless Steel ASTM A582 Type 416
• Phosphate coated steel
