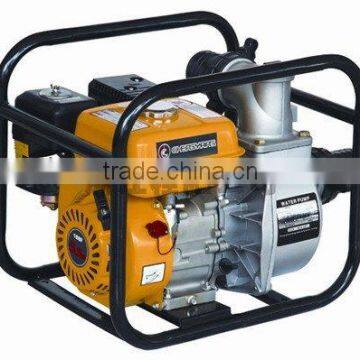

Garden Power Water Pump CY-8QG50
- Ningbo/Shanghai Port
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | ChengYang | |
| Model Number | CY-8QG50 | Theory | Jet Pump | |
| Structure | Diaphragm Pump | Usage | Water | |
| Power | Hydraulic | Standard or Nonstandard | Standard | |
| Fuel | Gasoline | Pressure | Low Pressure | |
| Application | Metering |
Product Description
Specifications
Garden Water Pumpweight less, high pressure, high lifts, range from 1inch to 4 inch powered by gasoline engine.
Engine:168F
| Type | Model | CY-8QG50 |
| Water pump | Outlet size(mm) | 50(2'') |
| Inlet size(mm) | 50(2'') | |
| Rated speed(rpm) | 3600 | |
| Maximum flow(m3/h) | 50 | |
| Lift(m) | 25 | |
| Suction(m) | 5 | |
| Engine | Engine model | 168F |
| Displacement(ml) | 163 | |
| Max output (KW) | 4.5 | |
| Fuel capacity(L) | 3.6 | |
| Bore xStroke(mm) | 68×45 | |
| Rated Speed(rpm) | 3600 | |
| Ignition System | Non-contact transistorized | |
| Starting model | Recoil | |
| Size | Dimensions(mm) | 525×415×470 |
| G.W(Kg) | 25 |
Following is the the basic process of transaction
Purchase Step
1.Design We supply customerized designs
2.Negotiation The quality,price,material,deliverytime,
payment terms.ect
3.Place Order According your own design or your chose our design
4.Production According customers confirmed details
5.Delivery Time Delivery cargos by sea or by air,according
customers requests
Welcome Customerized brand!
