Production Introduction :

Detailed instructions
Secondary reduction was our own research and development of new equipment, mainly used for building mortar spraying, inside and outside wall body hair, ordinary building mortar conveying, secondary reduction water, as well as the slope spray anchor support.
With its powerful function and broader range of USES, once listed rolled up sales boom.

New secondary structure equipment advantages as follows:
1. To adapt to the spraying material: putty powder, paint, latex paint, really stone paint, cement mortar, dry mortar, insulation mortar, waterproof, fire prevention materials, insulation materials, sound-absorbing materials such as water soluble materials.1
2. Adjust the flow, bring up the best painting effect.3
3. Besides you can switch on the electric cabinet, also equipped with remote control switch spraying.9
4. Spray gun and feeding tube connections can rotate and easy operation.3
5. Construction of high efficiency and good quality.2
6. Small size, convenient for on-site handling, and low cost of accessories, maintenance is simple.1
7. Easy to use, high speed, province materials, artificial and cheaper, one machine with three people, only 150 square thickness 2 cm/hour.5
8. Material ratio of cement 0.7:3 mortar.
The first-class quality, first-class services, to upgrade become a kind of enjoyment, let new equipment into a single heat flow allows you to buy our products, with the rest assured.

Brand: other types: TL - 20 specification: 2300 * 800 * 1300 mm product alias: fine stone mortar pump
Purpose: fine stone mortar Applicable industry: the secondary structure
Detailed description:
Product introduction
Ash mortar used in high-rise building and fine stone concrete conveying, secondary post grouting, reservoir, all kinds of pressure grouting in hydropower stations, ports, docks, foundation treatment, soft ground, grouting reinforcement, tunnel, subway, backfill grouting bolt support in mine construction.
Product attributes
Hydraulic piston type TL - 20 work form the largest 25 Mpa pressure conveying mortar wait the aniseed diameter 1 cm construction 0.5-10 m3 contrast 1:3 proportion of mortar, mortar and gravel 1:2:1 vertical conveying distance transmission distance of 100 m 100 m the weight 600 kg dimension (length x width x height) 2300 * 800 * 1300 mm hydraulic cylinder diameter 110 mm discharging mouth 51 mm diameter of the inlet diameter is 51 mm 18 kw power voltage 380 v
Other instructions
This product adopts the hydraulic pumping, vibration mesh filter two cylinder reciprocating assignments completely can transport all kinds of mortar in building applications, fine stone concrete and so on, this product has the large displacement, high pressure, the province province, mobile and flexible characteristics, is an ideal mortar conveying equipment.

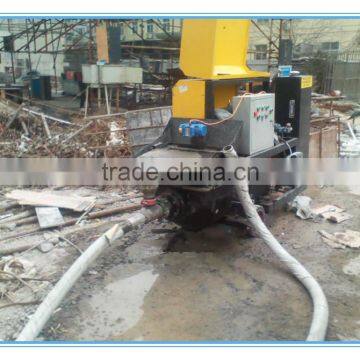

Production Picture:
