95mm 4D95 4D95L 6D95L Diesel Engine Piston
- Guangzhou
- Money Gram Credit Card
You May Like
Product Details
| Type | Piston | Size | 95 mm | |
| Car Make | Truck | OE NO. | 6204-31-2121 6204-31-2410 | |
| Place of Origin | Anhui, China | Brand Name | Longk | |
| Model Number | 4D95 | Warranty | 1 Years |
Product Description
95mm 4D95 4D95L 6D95L diesel engine piston
| 4D95L 6D95L | 6204-31-2121 6204-31-2410 3P95S01-A | Dia: | 95 |
| GL: | 94.1 | ||
| KH: | 50.9 | ||
| Pin Dia: | 30 | ||
| Length: | 74 | ||
| none-reinforced | |||
Production Details:
Mechanical Properties (%) | |||||
CODE | AC8A | AC8B | AC8C | AC9B | AC9A |
Tensile Strength Kg/mm | T5>22 | T5>21 | T5>21 | T5>20 | T5>18 |
T6>28 | T6>28 | T6>28 | T6>22 | T6>18 | |
T7>25 | T7>25 | T7>25 | T7>21 |
| |
Hardness HRB | T5 57~69 | T5 57~69 | T5 57~69 | T5 57~69 |
|
T6 64~74 | T6 64~74 | T6 64~74 | T6 64~74 | T6 63~75 | |
T7 55~65 | T7 55~65 | T7 55~65 | T7 55~66 | T7 54~66 | |
Elongation (%) | T5>0.5 | T5>0.5 | T5>0.5 | T5>0.3 |
|
T6>0.5 | T6>0.5 | T6>0.5 | T6>0.3 | T6>0.3 | |
T7>0.6 | T7>0.6 | T7>0.6 | T7>0.3 | T7>0.3 | |

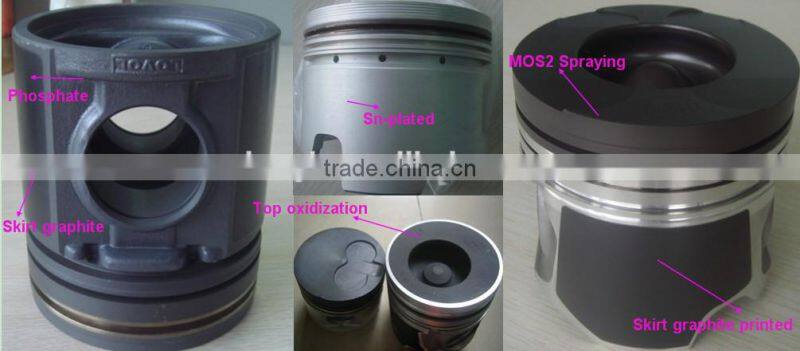

Piston Surface Treatment
Piston workmanship
Remarks: The specification of pistons
(1) Available size: STD, STD+, STD++, +0.25, +0.50, +0.75, +1.00, etc.
(2) Common material: Aluminum Alloy (lighter in weight and higher thermal conductivity); Senior Cast Iron (heavier in weight, greater strength and resistance to wear); Heat-resisting Steel, Hypereutectic Al-Si Alloy, Hypoeutectic Al-Si Alloy, Eutectic Al-Si Alloy, Multi-Cast Iron and Ductile-Cast Iron etc.
(3) Produce process: Casting, Forging, Melted Metal Squeezing.
(4) Piston structure: Piston Head, Piston Pin Bore, Piston Pin, Skirt, Ring Grooves, Ring Lands and Piston Rings.
(5) Piston types: Solid Skirt Pistons, Shim Type Pistons, Strut Type Pistons, Ring Carrier Pistons, Strut with Ring Carrier Type Pistons, Keystone Groove Pistons, Oil Cooled Pistons.

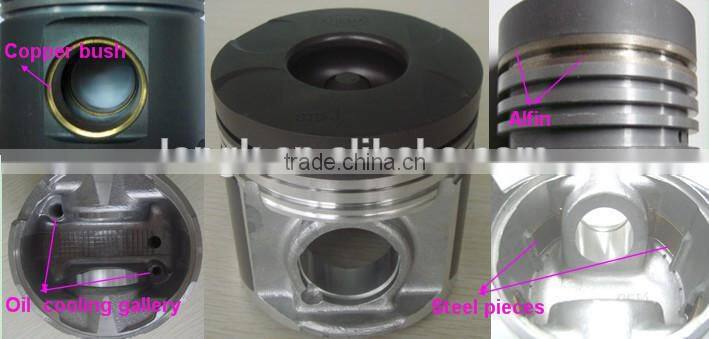

(6) Piston features: Phosphating, Top Oxidization, Top Molybdenium Disulfide, Sn(tin)Plated on Skirt, Graphite on Skirt, Alfin, Double Alfin, None Alfin, Steel Pieces, Drilling, Oil-cooling Channel, Three or Four Ring Grooves, Ceramic Spraying and Hard Iron Plating, etc.
(7) Treatment: Sn Plated, Skirt Printing Graphite, Phosphating, Spray MoS2, Top Anodic Oxidation.
(8) Functions: High Temperature Resistant, High Pressure Resistant, Anti Abrasive.
(9) Suitable Vehicle Scope: Japanese Korean American European Russian Vehicles.
(10) Smaple and Drawing are available to meet your specifications.

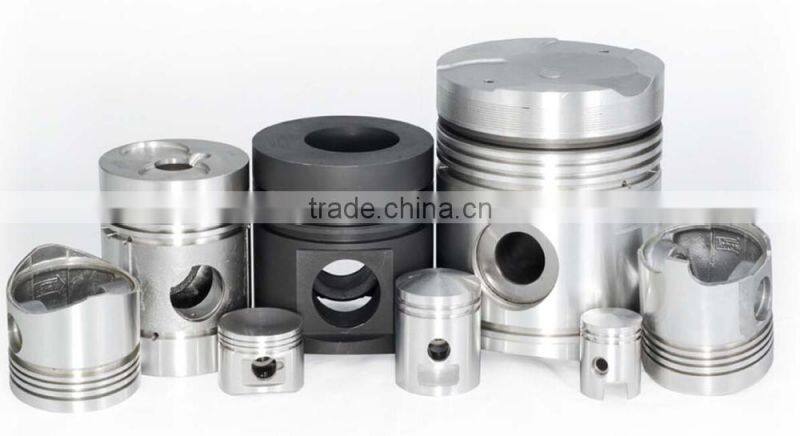

The pistons we offer for other brands of vehicle:
Why choose us?
Guangzhou Longk Auto Parts Limited has specialized in manufacturing and exporting piston, piston ring, cylinder liner for 13 years. Now have developed many types of products for Japanese vehicles, Korean vehicles, Russian vehicles, European vehicles, American vehicles. Quality meet ISO 9002 and ISO/TS 16949 certificate. High quality has help us win a good reputation and lots of good customers.
Now we are Trade Assurance Supplier of Alibaba, 100% secure guaranteed for product quality and on-time shipment.
Advanced machines and Professional engineers
Certificate Guaranteed for Quality
Exhibition show

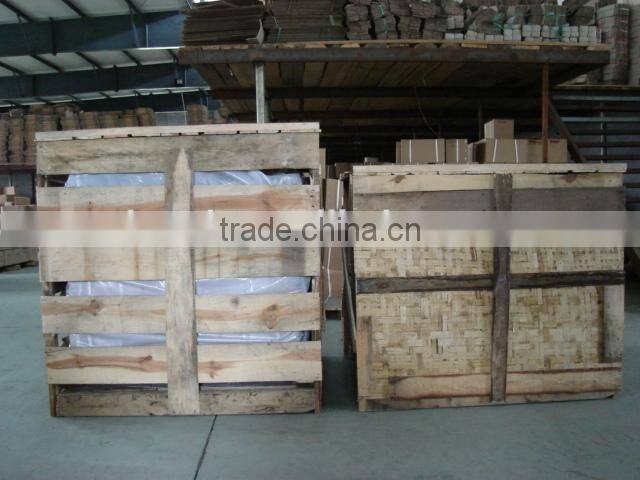

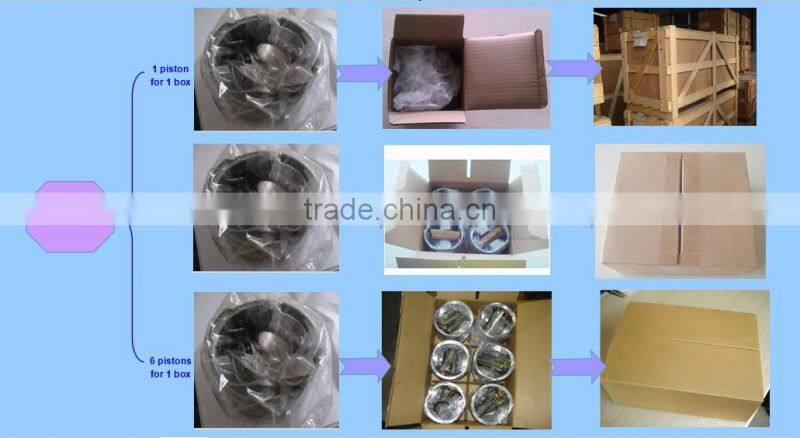

Piston packing (Safe and Stable)
(1) Thousands of OEM piston, or can be made by drawing.
(2) 12 months warranty and 100000 miles guaranteed.
(3) Trade assurance supplier, with very flavorable price and timely delivery.
Do not heasitate to send inquiry to us for high quality pistons !
