Truck Spare Part S6D155 Ring Piston
- FOB Guangzhou
- Credit Card
You May Like
Product Details
| Type | Piston | Truck Model | Other, komatsu | |
| Size | 155 | OEM No. | 6128-31-2022 6128-31-2033 | |
| Material | Cast iron | Place of Origin | Anhui, China | |
| Brand Name | CNFLAP | Model Number | S6D155 |
1. OEM genuine packing
2. Your own brand packing
3. Wooden packing/ Pallet
4. Neutral packing/white box/blank box(45*42*38)
Product Description
Specifications
S6D155 piston ring1. Cast iron
2. Stocks delivery in 3-5 days
3. Over 20 years experience

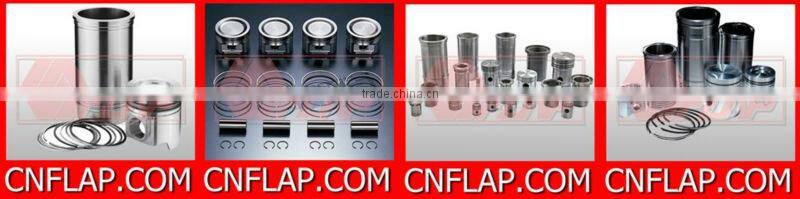

Truck part S6D155 piston ring, piston, cylinder liner
A: S6D155 engine liner kits
Application for Komatsu engines:
| C/F-No | E-Model | OEM No | Piston Size | OEM No | Ring Size | OEM No | Liner Size | ||
| CF-KU-09 | S6D155 | 6127-31-2140 6127-31-2030 6127-31-2410 | Dia: | 155 | 6128-31-2022 6128-31-2033 SDK04-008 3R55S01 6128-31-2060 6128312070 R18370 | 3.68 3.548 4.737 | 6128-21-2215 6128-21-2214 6128-29-2210 3L55S01-FNP 6128-21-2216 3A55S01 KMKT2711400 | A: | 155 |
| GL: | 167.5 | B: | 184 | ||||||
| KH: | 102.5 | C: | 327 | ||||||
| Pin Dia: | 60 | ||||||||
| Length: | 129.9 | ||||||||
| Remark | alfin | ||||||||
B: For Komatsu engine details:
we can offer the following engines as well:
1. 4D95L/6D95L
2. S6D95-6
3. S6D95-5/6D95L-1/S4D95L-1A
4. S4D102E-1/S6D102E-1
5. S6D105-1
6. SA6D108-1
7. S6D110-1C
8. S6D125-1
9. S6D155
10. NH220
11. 4D105-5H
C: and also, for construction machine engines, we have the following brand:
caterpillar, Komatsu, Cummins, Detroit ......
D: Production details:
A.Our piston details:
1. Piston Material : ZL109 Aluminium Alloy , Alloy cast iron.
2. Piston Type :1 Steel-insert piston , 2 ALFIN piston , 3 Cast Iron piston , 4 Cooling channel piston , 5 One piece casting piston , 6 Compages piston , 7 Forged piston
3. Piston Feature : Satin Anodised Aluminium ,phosphating , Alfin ,Double Alfin , No Alfin , Graphite , Oil cooling channel , Sn(tin) plated , Steel Piece , Top Oxidization , Skirt Graphite Printed , Three or Four Ring Grooves ,Ceramic Spraying
4. We can offer you The 1 Steel-insert piston , 2 ALFIN piston , 3 Cast Iron piston , 4 Cooling channel piston , 5 One piece casting piston , 6 Compages piston , 7 Forged piston piston, 8 Two pieces piston/Double piston
1. Chemical Elements of materials for piston: Aluminum: ZL109
Cu: 0.5~1.5 Si: 11.0~13.0 Mg: 0.8~1.3 Zn: 0.20max
Fe: 0.70max Mn:0.20max Ni:0.8~1.5 Ti:0.20max
Sn:0.05max
2. materials for the piston pin: 40CrMo.
Cu:0.38~0.45 Si:0.17~0.37 Mn:0.50~0.80
Sn:<0.0035 Cr:0.90~1.20 Mo:0.15~0.25
Ni:allow to the impurity less than 0.030
P:allow to the impurity less than 0.035
B.Our Piston ring details:
1. Piston ring Material : Cast iron , Alloy , Steel
2. Piston ring Feature : 1 Chrome-plating ,2 Line-honing ,3 nitridation , 4 phosphating , 5 Molybdenum plated(Moly-inlaid) ,6 Nitrided ,7 Oxidized,8 Nano,9 Zirconium-plating ,10 Sandblasted ,11 Special honing, 12 Titanium-plating, 13 Rail With Teflon
C.Our Cylinder Liner details:
1. Cylinder liner/ sleeves Material : Boron-containing Alloy Cast Iron
2. Cylinder liner/ sleeves Treatment: laser quenching , high-frequency quenching
3. Cylinder liner/ sleeves Feature : Dry, Wet & Air Cooled Blocks
Company Profile

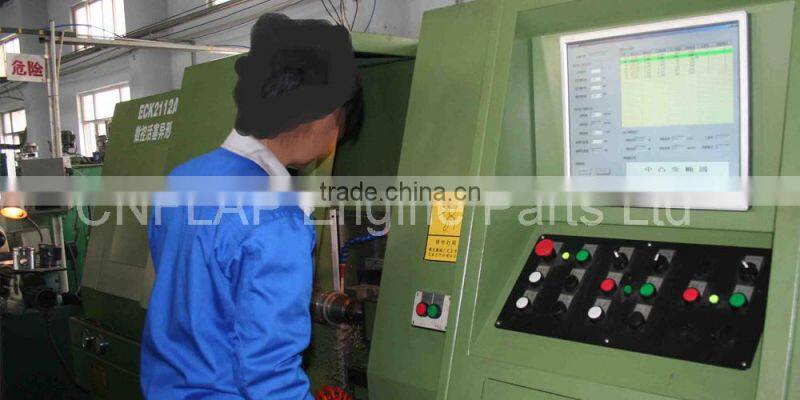

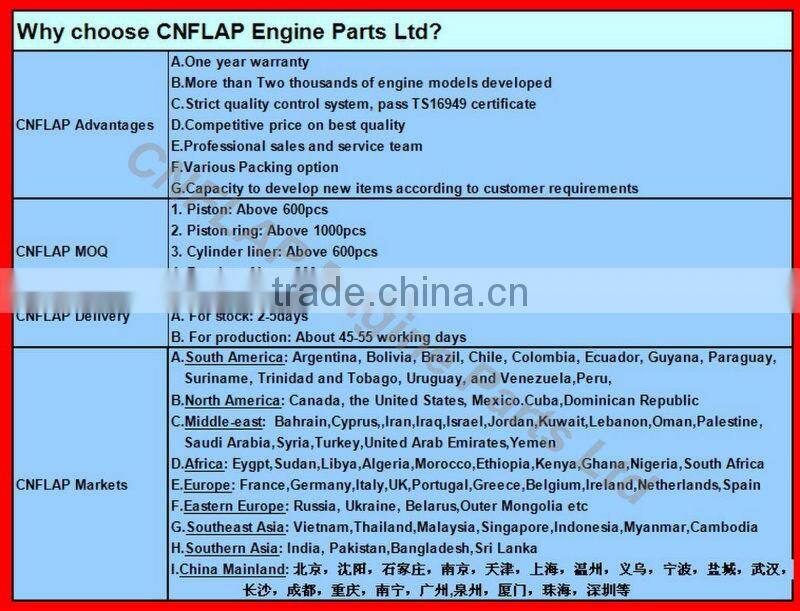

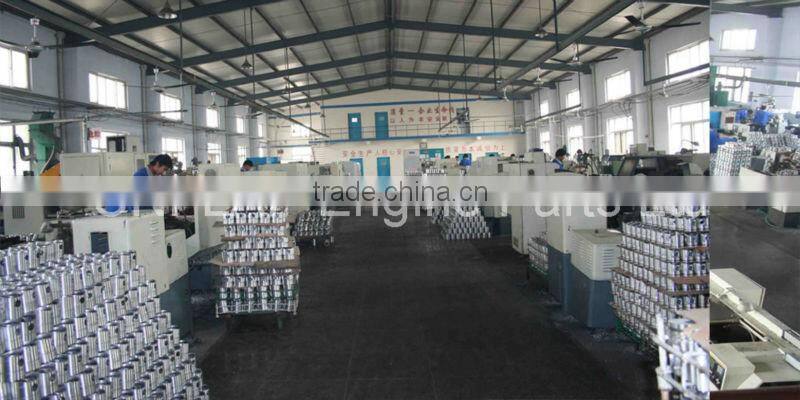

Guangzhou Longjian Auto Parts Co.,Ltd belongs to Cnflap Engine Parts (GZ) Ltd., established in 1995, which main producing in piston, piston ring, and cylinder liner for auto engine parts, especially in diesel engines, have developed more than 300 models of products. You can get these from us: piston, piston ring, cylinder liner, Engine liner kits 1) For European& American, Korean & Japanese and Russian etc. Engines. 2) Good quality, good packing,good finish. 3) Competitive price, guarantee 100000km. 4) Secure service & Packing Details: Meet your requirements. 5) We can develop new items for you especially. We carry out the scientific management throughout the past 15 years; the CNFlap team has designed, manufactured, and built our own brand. In the attention to update of technique and improvement of quality. CNFlap are developing new products continuously and introducing of the advanced equipment and technology from Germany and Japan. The production facilities are precise and the inspection ways have the criterion. Our special technological background, experience of over five years and abundant inventory enable us to answer our customers inquiries promptly. Our sales team is equipped with professional knowledge so that we can provide satisfactory products and services. Under the quality control system of TS16949 and ISO9002, we strive to ensure each piston, piston ring, and liner in your hands is zero defect.
