Draaikrans Oplegger Draaitafel Oiles # 500sp Slijtage Plaat
- shanghai ningbo shenzhen changsha etc
- T/T Credit Card
You May Like
-
Graphit Lager Bearing Graphite Inlaid Oiles Bronze Bushing
-
Graphite Inlaid Oiles Bronze Bushing Tungsten Radial Bearing
-
Jdb Graphite Bronze Bushings Sizes Jdb Bushing Solid Lubricant Embedded Bushing
-
Festschmierstoff Eingebettet Buchse
-
Motor Electrico Buje Insertos de Grafito Del Buje
-
JDB Products Bronze + Graphite Bushing Catalogue JTW,JDB Size 20*28*20 L mm Material Brass+graphite Slide Bearing
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DYB, JIASHAN DINGYI BEARING | |
| Model Number | DYB500 / SOB SPB WF 500 JDB SPF WFF 500-series JFB | Type | Other, flanged,sleeve,washer | |
| Material | bronze graphit,cast iron graphit,high stress brass,steel, BRONZE+GRAPHITE,High Stress Brass,HT250# Cast Iron, |
Product Description
BWG Bronze Graphite Bushing PBM PBMF LM LMF Sleeve Plain Bearing BWG-GT Graphite Bush
Introduction:
Model | Material | Photo | International Mode |
DYB500 | TYPE: FLANGE, WASHER, SLEEVE
BRONZE+GRAPHITE Bronze,High Stress Brass,Cast Iron (+ Graphite) | |
JDB,JCB,SPB,SOB
|
DYB501
|
High-stress Brass(CuZn25Al6Fe3Mn3)+Graphite
| |
JDB,JCB,SPB,SOB
|
DYB503
|
High-stress Brass(ZCuAl9Fe4Ni4Mn2)+Graphite
| | JDB,JCB,SPB,SOB
|
DYB504 |
High-stress Brass(ZCuSn5AlPb5Zn5)+Graphite
| | flange JDB |
DYB505 |
High-stress Brass(ZCuSn10Zn2)+Graphite
| | JDB,JCB,SPB,SOB
|
DYB506 |
HT250# Cast Iron+Graphite
| |
JDB,JCB,SPB,SOB
|
DYB509 |
High-stress Brass(CuZn25Al6Fe3Mn3) | |
JDB,JCB,SPB,SOB
|
| Supply All Various Of Bushing Bearing For 15 Years! | |||
| 8 Years Gold Supplier In Alibaba! | |||
| Contact Person | Email id | Skype id | |
| Ms. Susan Shi | | susan3397 | |
DYB500 Bronze+Graphit Bushing Technical Data:
Max. dynamic load: 100N/mm2
- Max. Temperature: 300 [ °C ]
- Base Hardness: HB210-270
- Friction coefficient: <0.16
- Highest sliding speed: dry 0.4m/s; oil 5m/s
- Quality Standard: DIN 1494
Material | Bronze | CuZn25Al6Fe3Mn3 + Graphite |
Iron | Cast-iron + Graphite | |
Density |
| 8.2g/cm3 |
Tensile Strength |
| >=755N/mm2 |
Anti-compact Tenacity |
| >=400~500KJ/m3 |
Hardness |
| >=200HB |
Max Load Pressure |
| 100N/mm2 |
Speed Limit |
| 0.5m/s |
PV value limit |
| 1.65N/mm2.m/s |
Friction coef | Oil Lubrication | 0.03 |
Dry Friction | 0.16 | |
Working temperature |
| -40~+300°C |
JDB material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.
- Feature
1. It can work without oil for long time
2. High load capacity
3. Inner Diameter machineable parts are available against order
4. High level thermal conductivity
5. Minimum overall dimensions

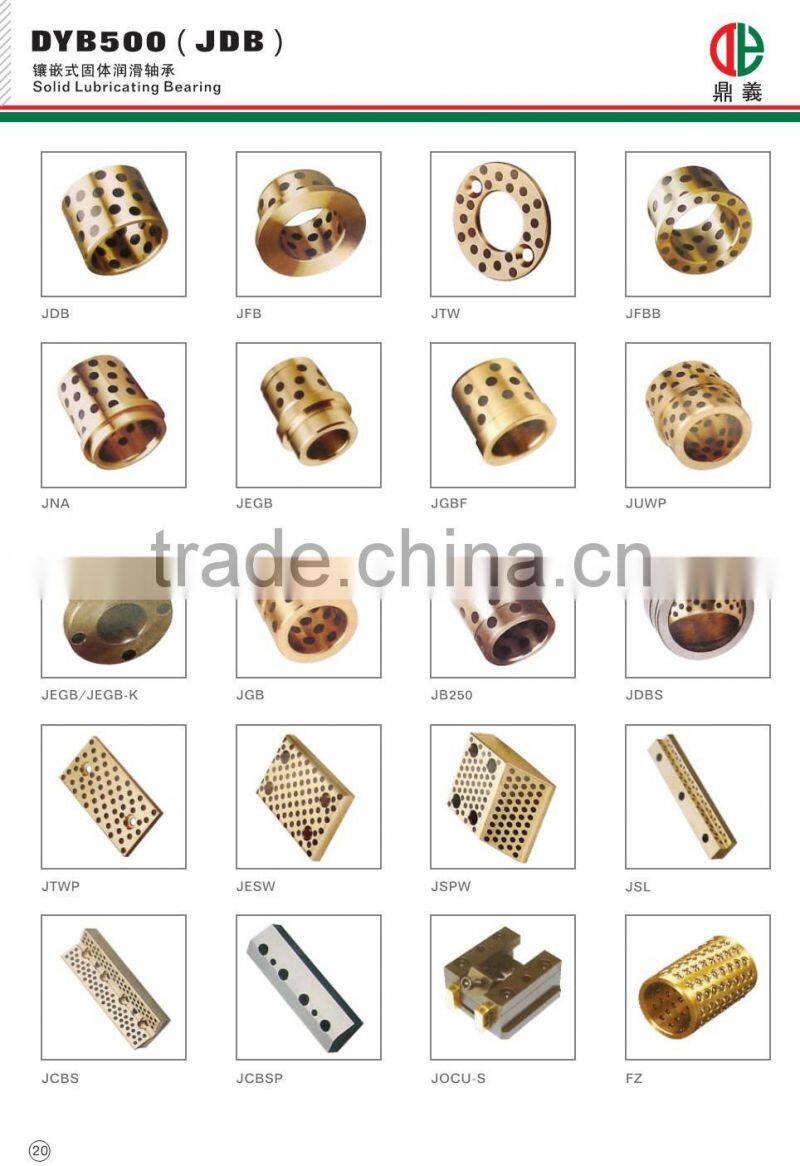

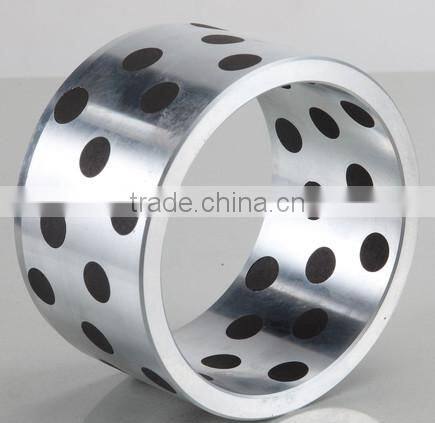

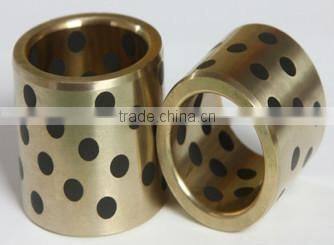

DYB500 Bronze+Graphit Bushing Photo:

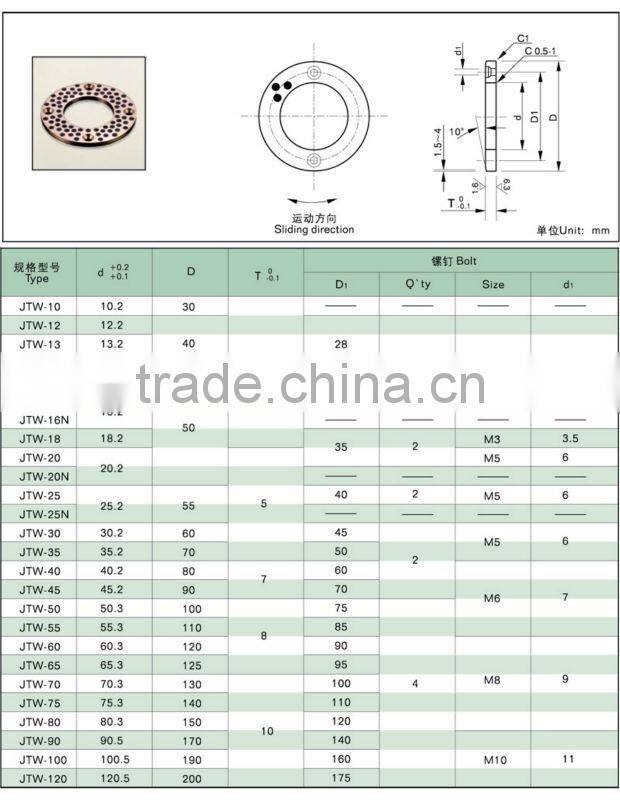

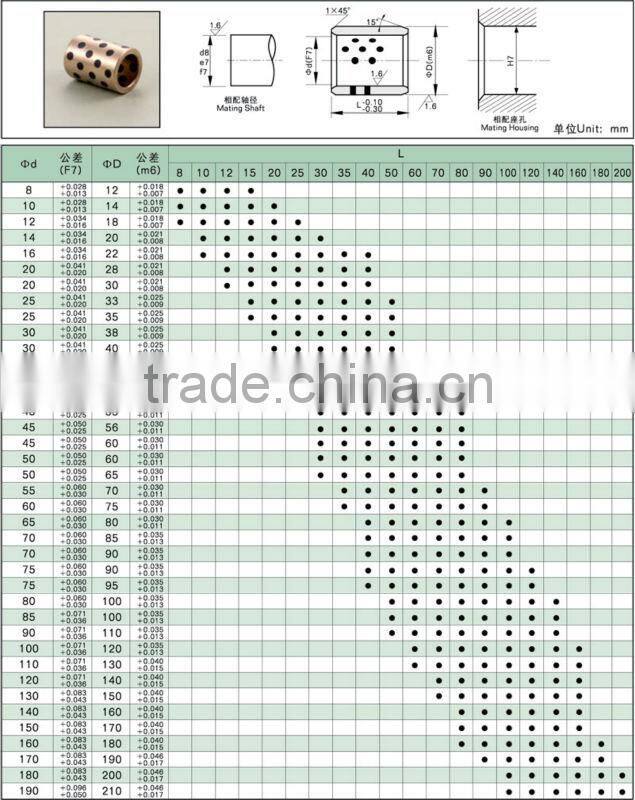

DYB500 Bronze+Graphit Drawing and Size:
Factory shows:
We Supply All Various Of Bushing Bearing For 15 Years !
We Are 8 Years Gold Supplier In Alibaba !
Please Contact Me For Get Catalogue & Inquiry !
