Home > Products > FB092 Bronze bushing > DYB900 DYB905 Bronze Bush FB090 FB092 Sleeve Flange Slide Bearing FB09G FB08G Holes Bushing With Grasphite
DYB900 DYB905 Bronze Bush FB090 FB092 Sleeve Flange Slide Bearing FB09G FB08G Holes Bushing With Grasphite
- 250000 Piece / Pieces per Month
- shanghai ningbo etc
- T/T Credit Card
You May Like
-
Groove Bronze Bushing
-
WB802 WB702 flange bronze bushing / Wrapped broze bearing with lubrication depots oil holes
-
PRMF AB 090 FB090F FBB090 WF-WB800 Flanged Bronze Bushing
-
WF-WB802 FB092F FBB092 Wrapped bronze bushing flanged with oil holes HB125 HB150 hardness bearing
-
S-WB802 FB092H ABB092 HB125 - HB150 oil hole plain wrapped bronze bushing
-
WF-WB800 bronze bushing with oil pockets HB 90 - HB 150 PRMF AB 090 FB090F FBB090 copper plain bush , brass bearing bush
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DINGYI | |
| Model Number | FB09G FB092 FB090 DYB900 WB702 WB802 WB800 WB700 | Type | Other, flanged,sleeve, flanged,sleeve,washer,slide pad,skate board,pipe,roll | |
| Material | bronze,bronz,brone |
Product Description
DYB900 DYB905 Bronze Bush FB090 FB092 Sleeve Flange Slide Bearing FB09G FB08G Holes Bushing With Grasphite
Introduction:
Model | Material | Photo | International Mode |
DYB900 (FB090) | Bronze (CuSn6.5P / CuSn8P / CuZn31Si )
SLEEVE, FLANGE, WASHER | | WB700, WB800 WB702, WB802, WF-WB700 WF-WB702 WF-WB800 WF-WB802 |
DYB900
(FB090)
| Bronze CuSn6.5P | | |
DYB902 (FB092)
| Bronze CuSn6.5P | | |
DYB900
(FB090)
| Bronze(Flanged) CuSn6.5P | | |
| Supply All Various Of Bushing Bearing For 15 Years! | |||
| 8 Years Gold Supplier In Alibaba! | |||
| Contact Name | Email ID | Skype ID | |
| Ms. Susan Shi | | susan3397 | |
These are similar to the DYB900 range, except there are solid lubricants embedded into the diamond shaped lubrication indents on the bearing surface, which provide good lubrication conditions at the start up stage, even with a lack of oil. It can be used in construction machinery, gear boxes, automotive clutch parts etc.
Feature:
1. Easy of fitting and lubrication
2. High load capacity
3. Excellent wear resistance with lower friction
4. High level thermal conductivity
5. Minimum overall dimensions
6. Chemical resistance
7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving
Technical Data:
Material | DYB900 | Bronze(CuSn8Pb/ CuSn6.5Pb) |
DYB901 | Bronze(CuZn31Si) | |
DYB902 | Bronze(CuSn8Pb/ CuSn6.5Pb) | |
DYB904 | Bronze(CuSn8Pb/ CuSn6.5Pb)+Seal Rings | |
FB090G | Bronze(CuSn8Pb/ CuSn6.5Pb)+Graphite | |
Load capacity |
| 100N/mm2 |
Speed limit |
| 2m/s |
PV value limit |
| 2.8N/mm2.m/s |
Tensile Strength |
| 460N/mm2 |
Yeild Strength |
| 260N/mm2 |
Hardness |
| 90~150HB |
Mating axis required | Hardness | >=50HRC |
Roughness | Ra=0.4~1.0 | |
Friction coef |
| 0.05~0.2 |
Working temperature max. |
| 150°C |
Application:
Industrial: Widely used in construction machinery, agricultural machinery and so on.

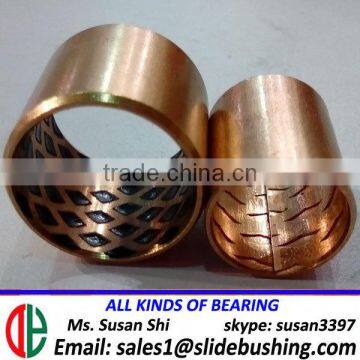

DYB900 Bronze Bushing Photo:
DYB900 Bronze Bushing Drawing and Size:
DYB902 Bronze Bushing Drawing and Size:
Factory shows:
We Supply All Various Of Bushing Bearing For 15 Years !
We Are 8 Years Gold Supplier In Alibaba !
Please Contact Me For Get Catalogue & Inquiry !
Contact Information:
Contact Us
- Jiashan Dingyi Interaction Bearing Co., Ltd.
- Contact nameLin ZOU Chat Now
- Phone86-573-84632328
- AddressNO.16 LIZHENG ROAD,ECONOMIC DEVELOPMENT ZONE, Jiaxing, Zhejiang
