Home > Products > FB090 Bronze bushing > LB PRM MBZ-B09 AB090 FB090 S-WB700 HB90-HB120 Plain Wrapped Bronze Bushing With Oil Pockets Bearing
LB PRM MBZ-B09 AB090 FB090 S-WB700 HB90-HB120 Plain Wrapped Bronze Bushing With Oil Pockets Bearing
- shanghai ningbo shenzhen etc
- T/T Credit Card
You May Like
-
LD LDD FB092H ABB092 Harvester Bronze Bushing CuSn6.5P Best Price Copper Bush With Flanged HB125 - HB150 Brass Bushes
-
S-WB700 S-WB800 FB092 FB090 Copper Bushing CuSn8P 6.5P LB PRM MBZ-B09 FB090H ABB090 Brass Bush Copper Slide Bearing
-
S-WB700 Bronze Bushing / LB PRM MBZ-B09 Plain Wrapped Bronze Bushing With Oil Pockets HB90-HB120 FB090 Copper Bush
-
Wood Machine Copper Bushing , Pure Bronze Bearing Bush , High Quality Brass Bushing
-
Best Selling FB090 WF700 Bronze Bushing With Diamond Oil Groove Full Brass Bush , Havester Machine CuSn6.5P 8P Copper Bushing
-
DU SF-2 10mm Bushings Sliding Bushings DX Bush for Automotive Industry Bushing
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DYB | |
| Model Number | DYB900 | Type | Other, flanged,sleeve,washer,slide pad,skate board,pipe,roll | |
| Material | Bronze |
Product Description
LB PRM MBZ-B09 AB090 FB090 S-WB700 HB90-HB120 Plain Wrapped Bronze Bushing With Oil Pockets Bearing
Product Description
Model | Material | Photo | International Mode |
DYB900 (FB090) | Bronze (CuSn6.5P / CuSn8P / CuZn31Si )
SLEEVE, FLANGE, WASHER | | WB700, WB800 WB702, WB802, WF-WB700 WF-WB702 WF-WB800 WF-WB802 |
DYB900
(FB090)
| Bronze CuSn6.5P | | |
DYB902 (FB092)
| Bronze CuSn6.5P | | |
DYB900
(FB090)
| Bronze(Flanged) CuSn6.5P | | |
| Supply All Various Of Bushing Bearing For 15 Years! | |||
| 8 Years Gold Supplier In Alibaba! | |||
| Contact Name | Email ID | Skype ID | |
| Ms. Susan Shi | | susan3397 | |
These are similar to the DYB900 range, except there are solid lubricants embedded into the diamond shaped lubrication indents on the bearing surface, which provide good lubrication conditions at the start up stage, even with a lack of oil. It can be used in construction machinery, gear boxes, automotive clutch parts etc.
Feature:
1. Easy of fitting and lubrication
2. High load capacity
3. Excellent wear resistance with lower friction
4. High level thermal conductivity
5. Minimum overall dimensions
6. Chemical resistance
7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving
Technical Data:
Material | DYB900 | Bronze(CuSn8Pb/ CuSn6.5Pb) |
DYB901 | Bronze(CuZn31Si) | |
DYB902 | Bronze(CuSn8Pb/ CuSn6.5Pb) | |
DYB904 | Bronze(CuSn8Pb/ CuSn6.5Pb)+Seal Rings | |
FB090G | Bronze(CuSn8Pb/ CuSn6.5Pb)+Graphite | |
Load capacity |
| 100N/mm2 |
Speed limit |
| 2m/s |
PV value limit |
| 2.8N/mm2.m/s |
Tensile Strength |
| 460N/mm2 |
Yeild Strength |
| 260N/mm2 |
Hardness |
| 90~150HB |
Mating axis required | Hardness | >=50HRC |
Roughness | Ra=0.4~1.0 | |
Friction coef |
| 0.05~0.2 |
Working temperature max. |
| 150°C |
Application:
Industrial: Widely used in construction machinery, agricultural machinery and so on.

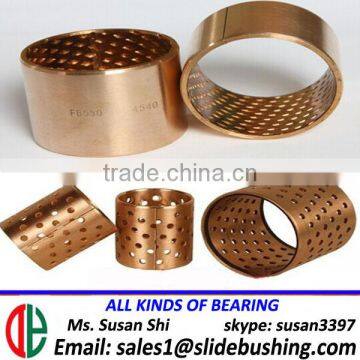

DYB900 Bronze Bushing Photo:
DYB900 Bronze Bushing Drawing and Size:
DYB902 Bronze Bushing Drawing and Size:
Factory shows:
We Supply All Various Of Bushing Bearing For 15 Years !
We Are 8 Years Gold Supplier In Alibaba !
Please Contact Me-Susan Shi, For Get Catalog & Inquiry !
