Product Details
| Place of Origin | Zhejiang, China | Brand Name | DYB | |
| Model Number | DYB900,S-WB702 LD AB092 FB092 S-WB802 FB092H ABB092 WF-WB802 FB092F | Type | Other, flanged,sleeve,washer,slide pad,skate board,pipe,roll | |
| Material | Bronze |
Product Description
GLT BRO-MET BMZ BRO-MET BMB BRO-MET BMA BRO-LUB BLZ BRO-LUB BLA BIV-LUB BUZ BIV-LUB BUA BRO-MET BMZ/L WRAPPED BRONZE BEARING
Introduction:
Model | Material | Photo | International Mode |
DYB900 (FB090) | Bronze (CuSn6.5P / CuSn8P / CuZn31Si )
SLEEVE, FLANGE, WASHER | | WB700, WB800 WB702, WB802, WF-WB700 WF-WB702 WF-WB800 WF-WB802 |
DYB900
(FB090)
| Bronze CuSn6.5P | | |
DYB902 (FB092)
| Bronze CuSn6.5P | | |
DYB900
(FB090)
| Bronze(Flanged) CuSn6.5P | | |
| Supply All Various Of Bushing Bearing For 15 Years! | |||
| 8 Years Gold Supplier In Alibaba! | |||
| Contact Name | Email ID | Skype ID | |
| Ms. Susan Shi | | susan3397 | |
These are similar to the DYB900 range, except there are solid lubricants embedded into the diamond shaped lubrication indents on the bearing surface, which provide good lubrication conditions at the start up stage, even with a lack of oil. It can be used in construction machinery, gear boxes, automotive clutch parts etc.
Feature:
1. Easy of fitting and lubrication
2. High load capacity
3. Excellent wear resistance with lower friction
4. High level thermal conductivity
5. Minimum overall dimensions
6. Chemical resistance
7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving
Technical Data:
Material | DYB900 | Bronze(CuSn8Pb/ CuSn6.5Pb) |
DYB901 | Bronze(CuZn31Si) | |
DYB902 | Bronze(CuSn8Pb/ CuSn6.5Pb) | |
DYB904 | Bronze(CuSn8Pb/ CuSn6.5Pb)+Seal Rings | |
FB090G | Bronze(CuSn8Pb/ CuSn6.5Pb)+Graphite | |
Load capacity |
| 100N/mm2 |
Speed limit |
| 2m/s |
PV value limit |
| 2.8N/mm2.m/s |
Tensile Strength |
| 460N/mm2 |
Yeild Strength |
| 260N/mm2 |
Hardness |
| 90~150HB |
Mating axis required | Hardness | >=50HRC |
Roughness | Ra=0.4~1.0 | |
Friction coef |
| 0.05~0.2 |
Working temperature max. |
| 150°C |
Application:
Industrial: Widely used in construction machinery, agricultural machinery and so on.

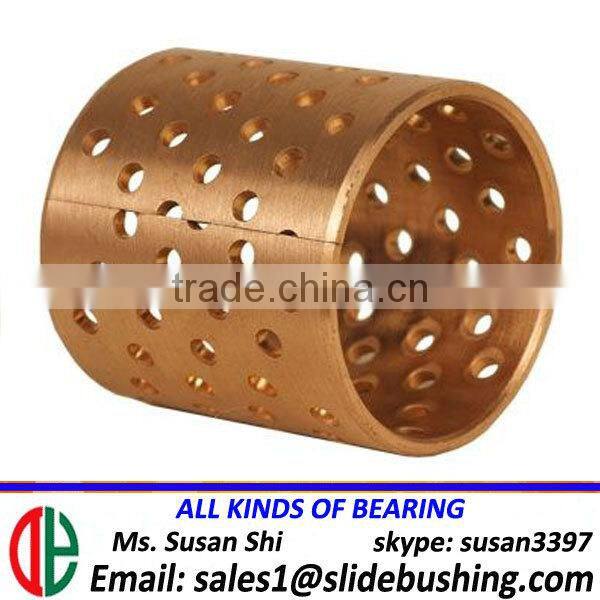

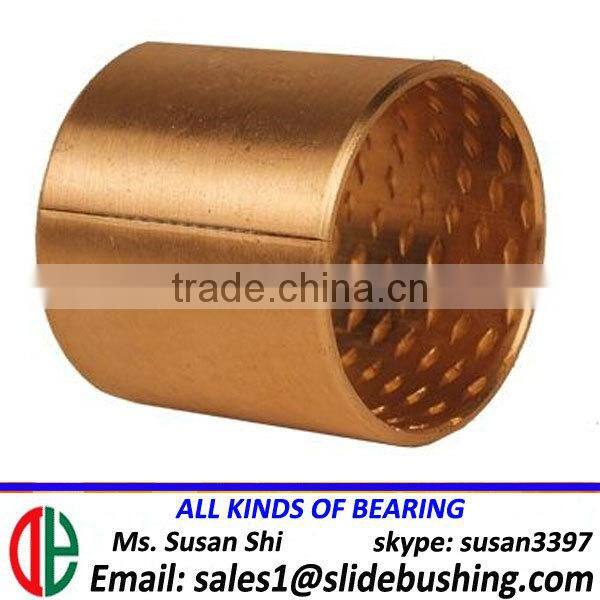

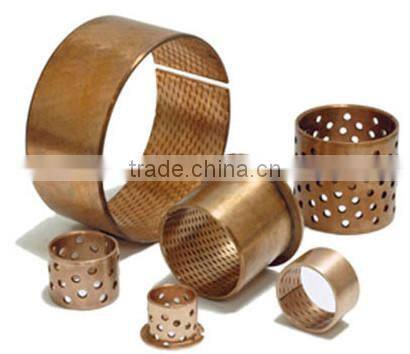

DYB900 Bronze Bushing Photo:
DYB900 Bronze Bushing Drawing and Size:
DYB902 Bronze Bushing Drawing and Size:
Factory shows:
We Supply All Various Of Bushing Bearing For 15 Years !
We Are 8 Years Gold Supplier In Alibaba !
Please Contact Me For Get Catalogue & Inquiry !
