steel slide rotary bush self-lubricating bearing pump sleeve stainless steel bushing
- 100000 Piece / Pieces per Month
- shanghai ningbo guangzhou shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DYB,Jiashan Dingyi Interaction Bearing Co,LTD | |
| Model Number | DYB100,DYB101,DYB105,DYB106,DYB107,DYB200,DYB202 | Type | Other, flanged,sleeve,washer | |
| Material | steel,bronze,composite |
Product Description
steel slide rotary bush self-lubricating bearing pump sleeve stainless steel bushing
Introduction:
Model | Material | Photo | International Mode |
DYB100 | TYPE: FLANGE, WASHER, SLEEVE MATERIAL: CARBON STEEL,STAINLESS STEEL,BRONZE -(TIN-COATING, COPPER-COATING,ZINC-PLATING) |  | DU,PAP,PAF,P10,P20, PTFE TEFLON BUSHING |
DYB200 | TYPE: FLANGE, WASHER, SLEEVE | | DX,PAP,P20,POM |
DYB101 | Carbon steel+Bronze powder+PTFE+Polymer | | DU,PAP,P10,LFB |
DYB105 | Bronze+Bronze powder+PTFE+Polymer | | DU-B,PAP,P11 |
DYB106 | Steel+Bronze powder+PTFE+Polymer | | DP4,DP-4 |
DYB107 | Stainless steel+Bronze powder+PTFE+Polymer | | DU PAP P10 - SS |
| Supply All Various Of Bushing Bearing For 15 Years! | |||
| 8 Years Gold Supplier In Alibaba! | |||
| Contact Person | Email id | Skype id | |
| Ms. Susan Shi | | susan3397 | |
DU Bushing Structure:
| 1, PTFE/Teflon (with lead or without lead) : 0.01-0.03mm |
| 2, Porous Bronze powder : 0.2-0.3mm |
| 3, Steel backing : 0.7-2.3mm |
| 4, Tin-coating 0.005mm or Copper coating 0.008mm |
Tin & Copper Coating :
DYB100 Technical Data:
| Items | Value | Unit | |
| Thermal Conductivity | 40 | W/mK | |
| Maximum Operating Temperature Tmax | 280 | °C | |
| Minimum Operating Temperature Tmin | -200 | °C | |
| Compressive Yield Strength | 350 | N/mm2 | |
| Maximum Static Load Psta,max | 250 | N/mm2 | |
| Maximum Dynamic Load Pdyn,max | 140 | N/mm2 | |
| Maximum Sliding Speed V-dry | 2.5 | m/s | |
| Maximum PV Factor-dry, continuous operation | 1.8 | N/mm2 * m/s | |
| Maximum PV Factor-dry, intermittent operation | 3.5 | N/mm2 * m/s | |
| Coefficient of friction f-dry | 0.02-0.25 | ||
| Coefficient of friction f-oil lubricated | 0.02-0.12 | ||
Feature:
1).Good load capacity and anti-wear.
2).It is in high load capacities and low speed with rotational,oscillationg or frequent stop-start motion.
3).It can work for a long time without oil in the condition of boundary lubrication,under oil or grease lubrication interval, the working-life will be longer.
4).It is machinable for the thicker of PTFE.

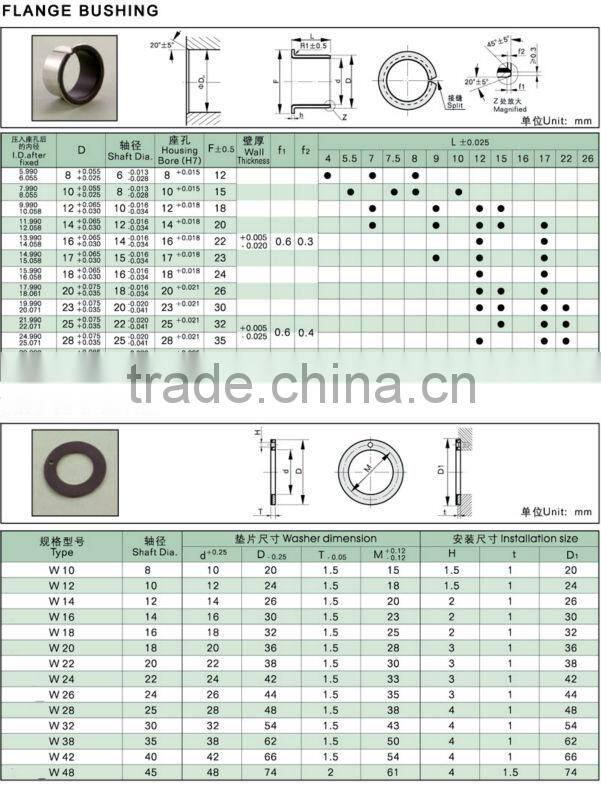

Drawing and Size:
Technology & Procedure:
Application:
Automotive:
McPherson struts and shock absorbers, doors, bonnets and tailgate hinges, steering columns, clutches, gearbox selector fork guides, wiper arms, power steering pumps, pedal bushes, ABS equipment, etc.
Industrial:
Aerospace, agricultural equipment, construction equipment, material handling equipment, forming machines-metal, plastic and rubber, office equipment, medical and scientific equipment, packaging equipment, pneumatic and hydraulic cylinders, pumps and motors, railroad and ramways, textile machinery, valves, etc.
Factory Shows:
Large various bushings manufacture.
Click the following and view more details
1,DYB100 DU SF-1 Teflon bushings PAP P10
2,DYB200 DX SF-2 POM bushings PAP P20
3,DYB300 SJ/JF Bimetal steel+bronze bushings
4,DYB500 JDB SOB WF Bronze metal graphite bushings
5,DYB900 FB Bronze wrapped oilite bushings
6,DYB FU sintered bronze bush,Oilite metal sintered bushings
7,DYB BTU ball transfer unit, ball caster bearing
8,DYB FZ ball retainer, ball bearing cage
