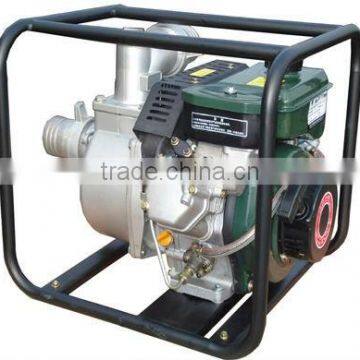

2 inch diesel water pump 170F diesel engine

FOB Price

USD $1 - $70 / Watt

1 Watt(Min.Order)

Supply Ability 200 Unit / Units per Month
Port chongqing
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	winyou	Model Number	WY50ZB22-2.5C
Theory	Centrifugal Pump	Structure	Piston Pump
Usage	Water	Standard or Nonstandard	Nonstandard
Fuel	Diesel	Pressure	Low Pressure
Application	Other, farming

Product Description

Specifications

2 inch outlet/inlet
lift is 22m
4.0hp diesel engine power
212cc ,key starter/recoil starter

Technical Datas :

Model	WY50ZB22-2.5C	WY80ZB22-2.5C	WY100ZB25-3.5C
Pump	Inlet Size(mm)	50	80	100
	Outlet size(mm)	50	80	100
	Specified point of flux(m3/h)	20	45	78
	Lift(m)	22	22	25
	Suction(m)	5	5	5
	Rotation Speed(rpm)	3600	3600	3600
Diesel Engine	Engine Model	WY170FG	WY170FG	WY178FG
	Bore x Stroke	70mmx55mm	70mmx55mm	78mmx62mm
	Horse Power	4hp	4hp	6hp
	Displacement	211ml	211ml	296ml
	Compression Ratio	20:01	20:01	20:01
	Rated Power	2.3kw/3000min	2.3kw/3000min	4.0kw/3000min
	Idling Speed	1300rpm	1300rpm	1300rpm
	Oil Injection Pressure	20±0.5MPa	20±0.5MPa	20±0.5MPa
	Fuel Tank Capacity	2.52L	2.52L	3.5L
	Fuel Consumption	280.2g/kw.h	280.2g/kw.h	286g/kw.h
	Continuous Running Time	3h	3h	2.4h
	Engine Oil Capacity	0.75L	0.75L	1.3L
	Fuel Number	0#;-10#;-20#	0#;-10#;-20#	0#;-10#;-20#
	Engine Oil Number	10W/30;15W/40	10W/30;15W/40	10W/30;15W/40
Packing Detail	N.W/G.W(kg)	31/34	35/38	52/55
	Dimension(L×W×H)mm	490×450×425	560×450×475	680×520×660
	20Q	295Unites	250Unites
	40HQ	720Unites	525Unites
