Home > Products > Water Pumps > WINYOU 2 ihcn, 3 inch, 4 inch diesel powered water pump WY80ZB22-2.5C

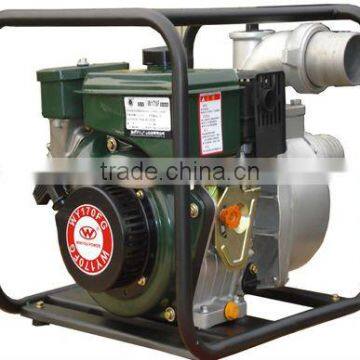

WINYOU 2 ihcn, 3 inch, 4 inch diesel powered water pump WY80ZB22-2.5C
Negotiable
/ Unit
100 Units(Min.Order)
- 150 Unit / Units per Month
- Chongqing/Shanghai
- T/T Credit Card
You May Like
-
WINYOU 2 ihcn, 3 inch, 4 inch diesel powered water pump WY80ZB22-2.5C
-
Diesel water pump 2.0 inche /4.0hp
-
diesel engine water pumps for water with 6.5hp gasoline engine 3 inch
-
3 inches diesel water pump
-
WP40 4'' inch gasoline water pump with 13hp kobal engine
-
WP15 1.5'' inch/cun hand operated water pumps with honda engne
Product Details
| Place of Origin | Chongqing, China | Brand Name | WINYOU | |
| Model Number | WYWY80ZB22-2.5C | Theory | Centrifugal Pump | |
| Structure | Piston Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | Low Pressure | |
| Application | Other, aricultural irrigation/farming |
Product Description
Specifications
1.we are the factory2.high lift and suction head,
3.easy operation,
4.low maintenance cost,
5.Fuel:diesel
Details :
outlet/inlet is 3inche(80mm) water pumps.
Powered by 4hp gasoline engine
self-priming,lift is 22m
Products Feature
1,Stable running
2,Easy Operation
3,Quality Gurantee
4,Small order accepted.
5,Good Quality and Comepettetive Price,
6,Low Oil Consumption,Low Noisce,Pollution Free
Packing&Delivery Days
*Packing: Chima Packing/ Netural Packing /Customer's Packing
*Delivery Days:15-20days after Deposit received
Service&Quality Control
*We are manufacturer , professional enough to provide good service&quality control.
*Inquiry Is welcome.Technology support is available from us.
Specification :
| Model | WY50ZB22-2.5C | WY80ZB22-2.5C | WY100ZB25-3.5C | |
| Pump | Inlet Size(mm) | 50 | 80 | 100 |
| Outlet size(mm) | 50 | 80 | 100 | |
| Specified point of flux(m3/h) | 20 | 45 | 78 | |
| Lift(m) | 22 | 22 | 25 | |
| Suction(m) | 5 | 5 | 5 | |
| Rotation Speed(rpm) | 3600 | 3600 | 3600 | |
| Diesel Engine | Engine Model | WY170FG | WY170FG | WY178FG |
| Bore x Stroke | 70mmx55mm | 70mmx55mm | 78mmx62mm | |
| Horse Power | 4hp | 4hp | 6hp | |
| Displacement | 211ml | 211ml | 296ml | |
| Compression Ratio | 20:01 | 20:01 | 20:01 | |
| Rated Power | 2.3kw/3000min | 2.3kw/3000min | 4.0kw/3000min | |
| Idling Speed | 1300rpm | 1300rpm | 1300rpm | |
| Oil Injection Pressure | 20±0.5MPa | 20±0.5MPa | 20±0.5MPa | |
| Fuel Tank Capacity | 2.52L | 2.52L | 3.5L | |
| Fuel Consumption | 280.2g/kw.h | 280.2g/kw.h | 286g/kw.h | |
| Continuous Running Time | 3h | 3h | 2.4h | |
| Engine Oil Capacity | 0.75L | 0.75L | 1.3L | |
| Fuel Number | 0# -10# -20# | 0# -10# -20# | 0# -10# -20# | |
| Engine Oil Number | 10W/30 15W/40 | 10W/30 15W/40 | 10W/30 15W/40 | |
| Packing Detail | N.W/G.W(kg) | 31/34 | 35/38 | 52/55 |
| Dimension(L×W×H)mm | 490×450×425 | 560×450×475 | 680×520×660 |
