Home > Products > special chain > Self Tooth Forming Chain ( PIV Chain )
Self Tooth Forming Chain ( PIV Chain )
US$ 1 - 30
/ Meter
1 Meter(Min. Order)
- NINGBO
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Type | Other, piv chain | |
| Material | Alloy | Place of Origin | Zhejiang, China | |
| Brand Name | HUIJI | Model Number | A0 |
Product Description
Specifications
PIV chainISO9001 factory
short delivery time
good price good quality
small order acceptable
PIV chain
ISO9001 factory
short delivery time
good price good quality
small order acceptable

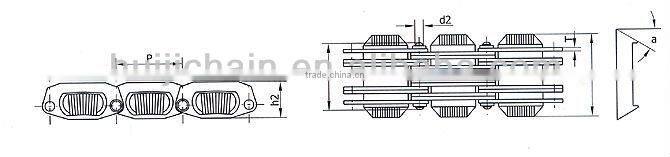

DIN ISO | Pitch | Pin | Pin | Plate depth | Plate thickss | Width over friction plate | Angle of | Ultimate | Average | Weight |
P | d2 | L | h2 | T | Lf | a | Q | Q0 | q | |
mm | mm | mm | mm | mm | mm | n | kN | kN | kg/m | |
A0 | 18.75 | 3.00 | 19.5 | 9.5 | 1.0 | 24.0 | 15 | 9.0 | 9.9 | 1.00 |
A1(A2) | 25.0 | 3.00 | 30.1 | 13.5 | 1.5 | 37.8 | 15 | 21.0 | 23.3 | 2.23 |
A3 | 28.6 | 3.00 | 35.3 | 16.0 | 1.5 | 44.2 | 15 | 38.5 | 42.7 | 3.04 |
A4 | 36.0 | 4.00 | 48.5 | 20.5 | 1.5 | 58.5 | 15 | 61.5 | 68.2 | 5.54 |
A5 | 36.0 | 4.00 | 60.5 | 20.5 | 1.5 | 70.0 | 15 | 71.0 | 78.8 | 6.70 |
