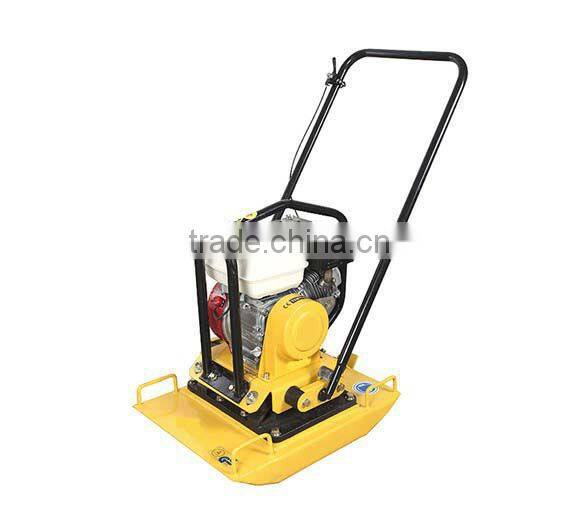

WH-C100R Petrol Plate Compactor

FOB Price

US$ 250 - 350 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Widely used in construction size,civil work and etc
Power Type	Gasoline	Brand Name	W&H
Model Number	C100R	Place of Origin	Jiangsu, China
Power(W)	5.0HP	Dimension(LWH)	694873cm
Weight	92kg	Certification	CE/ISO/EP/SGS/BV
Warranty	One year

WH-100C Petrol Plate Compactor
1.Vibration isolated reversible handle for easy operation and reduced operator fatigue.

Petrol Plate Compactor WH-C100R

Petrol Plate Compactor Features:

1. Vibration isolated reversible handle for easy operation and reduced operator fatigue.

1. Open design reduces dirt building.

2. Centrally mounted fully enclosed exciter for an even spread of compactive force over the whole base plate.

3. Heavy-duty shock mounts reduce vibration to the upper engine & handle.

4. Protective frame is available as optional.

Petrol Plate Compactor Specification:

Model	WH-C100H	WH-C100HC	WH-C100R	WH-C100RC	WH-C100D
Engine type	air-cooled, single cylinder,4-stroke
Engine	Honda GX160	Honda copy WH168F	Robin EY20	Robin copy EY20	Diesel,WH170F
Power(HP)	5.5	5.5	5	5	4
Weight kg	88	88	88	88	91
*Size of base plate(LW)(cm)**	58.5*46
Max. centrifugal force(KN)	15
Compaction depth (cm)	30
Travel speed(cm/s)	25
Vibration frequency(V·P·M)	4500
Efficiency	770
Package(*LWH)(cm)*	694873				7048.5 80

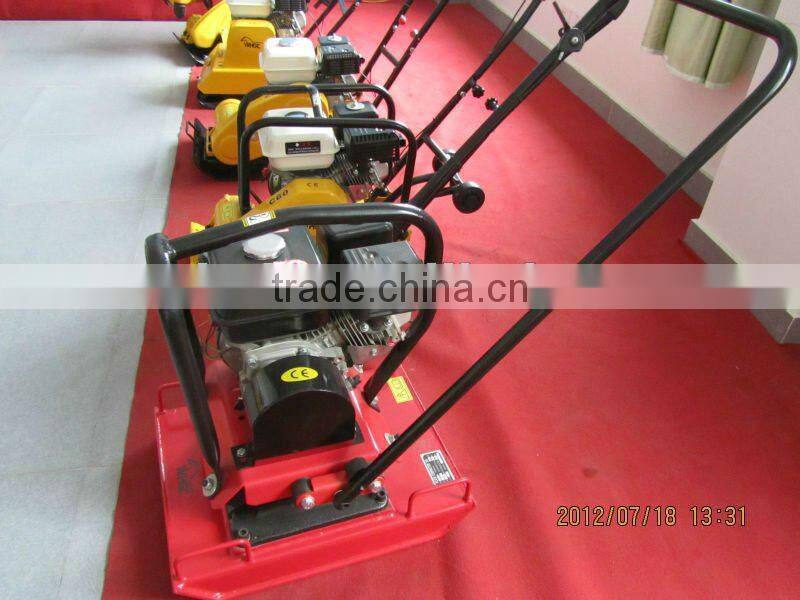

Petrol Plate Compactor Photos and Certificates:
