Product Details

Place of Origin	Guangxi, China		Brand Name	Gemred
Model Number	GR365

Product Description

About Product

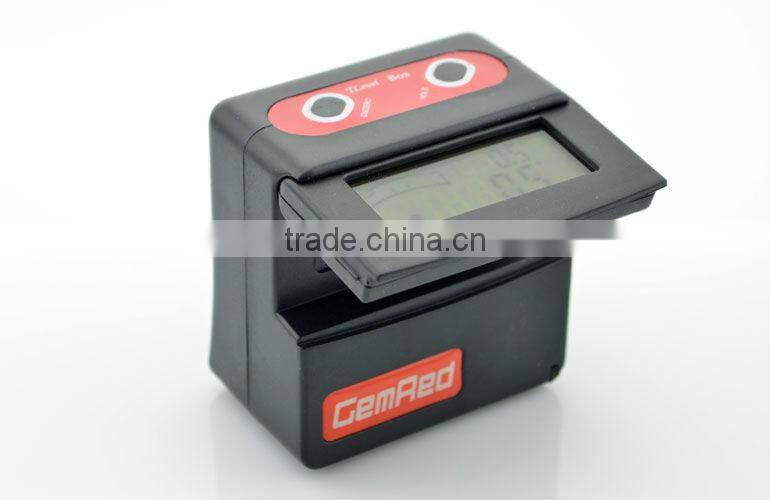

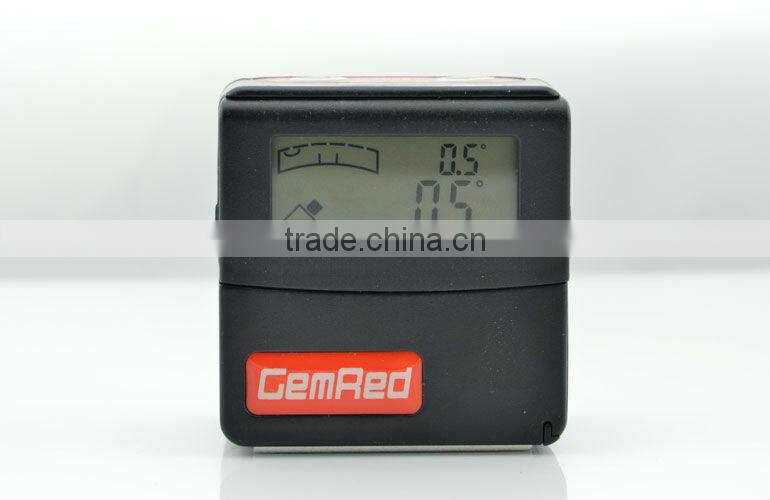

angle measuring tool for machinery digital level sensor is an innovative tool that provides digital reading between ±180.00°. Extra LCD is convenient to read. Small and light, it is real easy to be carried and used. Measuring plane containing disk magnet can stick to the surface to be measured. It is especially easy to measure bevel angle of mitre saw, automobile test and repair,etc.

ON/ZERO: A. Press once to turn ON display. B. Press again to set relative angle to 0.0°.

C. Press and hold to turn off.

HOLD Press once to HOLD displayed reading -Press again to return to measuring mode

Technical data

Resolution	0.1°
Repeatability	±0.1°
Measuring range	±180.00°(0°~360°)
Waterproof	IP54
Working current	<100μA
Dimension	2” ×2” ×1.3”
Power	Two AAA batteries (not included)

Feature

1.Measuring plane containing disk magnet can stick to the surface to be measured.

2.Works great for minter saws and table saws.

3.Sets the angle of jointer fences and band saw tables.

4.Machine cone bevel measuring and bevel measuring in processing

5.Telecommunication industry: Radar antenna angle calibration, elevation measuring for secondary planet antenna and television receiver;

6.Automobile:four-wheel location, pavement control and leveling for construction vehicles
