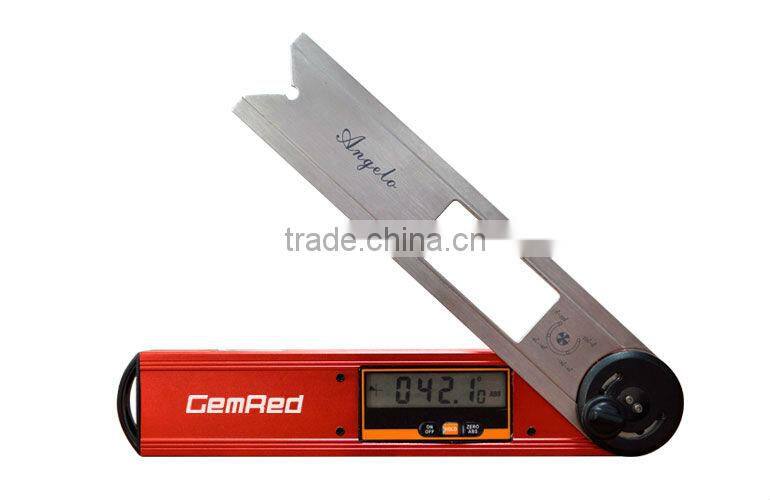

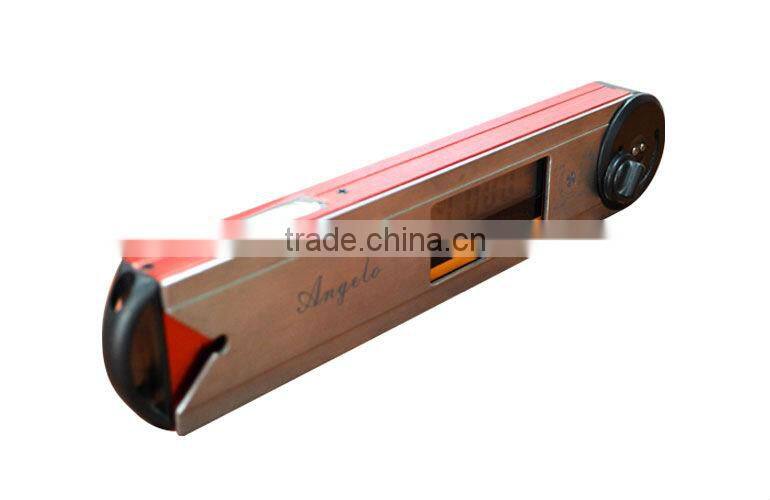

Professional Digital Angle Ruler Measuring Tool

About Product

professional digital angle ruler measuring tool   is an innovative angle finder which can measure all kinds of angle, drawing lines, and accessory of power tool. It is accurate and operate easily.

Technical data:

Resolution: 0.05°/3´

Accuracy: 0.15°

Measuring range: 360 °

Working current: <80μA

Work temperature: +5°C ~ +45°C

Work humidity: <85%RH

Length: 254mm(10")

Power: 3V CR2032 Lithium battery

Battery life: more than 2000 hours

Features:

1. Easy to measure all kinds of angle and draw lines.
2. Conversion between absolute measurement and relative measurement.
3. Display always reads upright, no matter which way it is turned.
4. Easy calibration and Zero setting.
5. Analogue quadrant showing for easy reading.
6. High accuracy level bubble for measuring horizontal level easily.
7. Lock the moving blade at any angle.

 Personal service

a.Customize product

1. Customize fixing body

 2.Customize logo on fixing blade

3.Customize logo on moving blade

b.Customize package

 1. Customize inner card

 2.Customize clamshell

 Standard products

Order NO.82302-00-R

unit size of product: 268mm*50mm*30mm

unit weight of product: Approx 335g

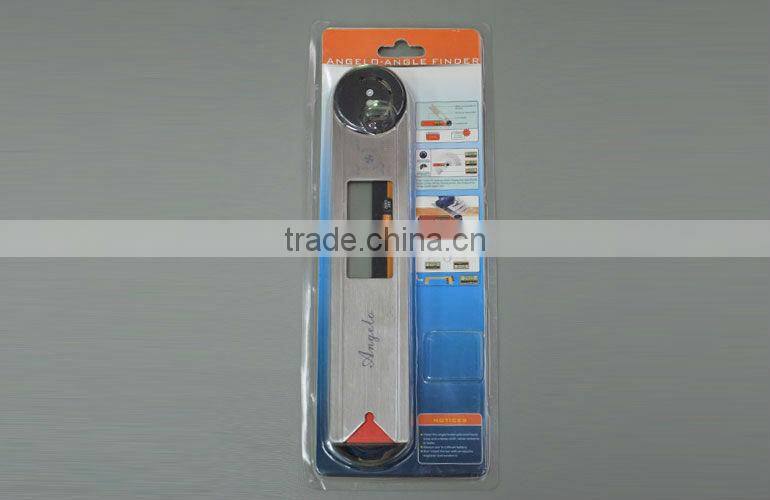

package: clamshell

Accessory: 3V cr2032 Lithium Battery; Leafle

unit size of unit package:125x32x325mm

unit weight of unite package:403g
