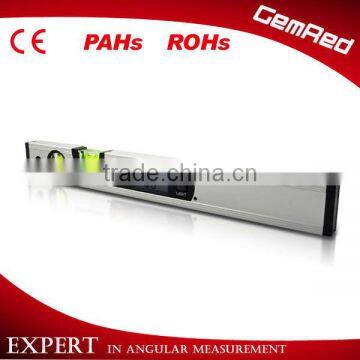

tools used for building construction digital inclinometer

About Product

tools used for building construction digital inclinometer

Product certification

The  auto level are complying with the requirements of CE(EMC),ROHS,PAHS.

Use range:

2.1 The floors, walls, doors, windows and glass curtain wall in construction, renovation and decoration industry can be measured and inspected the roughness, slope, level and vertical construction

2.2 The measurement, quality supervision and inspection of level, gradient, and inclination in water conservancy, road and bridge construction.

2.3 The measurement of communication facilities and antenna positioning.

2.4 The precision machinery manufacturing, industrial platform, device positioning, and the corresponding maintenance and upkeep in Industry, mining and military enterprises

2.5 The level and gradient of railway track construction inspection.

2.6 Others: oil exploration, drilling, fitness equipment, etc.

Mechanical Specifications

Technical data:

Features:

Measuring range:0°~360.0°

Hold function to freeze measurements

Conversion between absolute measurement and relative measurement and inclination measurement. Automatic shut off after 5 minutes

Calibration
The digital spirit level has been calibrated in the factory for maximum accuracy. If necessary, the digital spirit level can be re-calibrated.

1. Switch off the digital spirit level. Place it on a flat and level surface.
2. Press and hold the Hold/Light key (5). Then additionally press the On/Off key (3). The number "-1-"  is flashing on the display.

3. Press the On/Off key (3) once more. The number "-2-" is flashing on the display.

4. Horizontally flip over the digital spirit level by 180. Then press the On/Off key (3) one more time to finish the calibration process.

Note: Ensure the digital spirit level is kept absolutely steady during calibration.
