48V 140Ah mini electric forklift for sale

FOB Price

USD $4,000 - $6,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	ANSION	Model Number	FB075
Type	Powered Pallet Truck	Power Souce	AC Motor
Rated Loading Capacity	750 kg	Max. Lifting Height	2500 mm
Min. Lifting Height	35mm	Fork Length	920mm
Fork Width	100 mm	Overall Dimensions	2040x800x1680 mm
Certification	CE	After-sales Service Provided	No overseas service provided

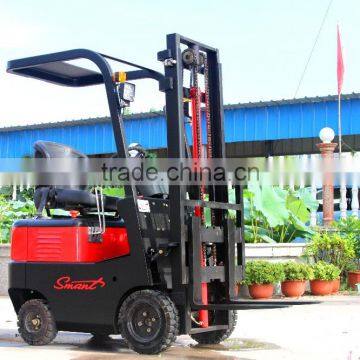

ANSION brand new 0.75 TON mini electric forklift FB075

Main Specification

ANSION ELECTRIC FORKLIFT TRUCK	FB075
Power type	Battery
Rated lifting capacity	750 kg
Loading center	300 mm
Driving type	Seat , overhead guard
Full length (with fork)	2040 mm
Full length (without fork)	1400 mm
Full width	800 mm
Full height (unrisen mast)	1680 mm
Full height (Overhead guard)	1820 mm
Full height (Max. Working height)	3070 mm
Distance from the seat face to the top of overhead guard	970 mm
Wheel base	860 mm
Front overhang	300 mm
Rear overhang	290 mm
Front wheel tread	700 mm
Rear wheel tread	668 mm
Min.ground clearance	90 mm
Standard lifting height	2500 mm
Free lifting height	80 mm
Fork adjusting scope	703 / 190 mm
Min. Turning radius (outside)	1200 mm
Min. right angle aisle width	1600 mm
Mast tilting angle (forward / backward)	6 / 12 ^o
Max. Lifting speed (unload)	400 mm/s
Max. Lifting speed (load)	350 mm/s
Max. Travel speed (unload)	13 km/h
Max. Travel speed (load)	12 km/h
Max. Grade ability (load)	≤ 10 %
Standard machine weight (unload)	1100 kg
Wheel x = driving wheel (front / rear)	2x/2
Front tyre	15x4 1/2-8
Rear tyre	3.50-5
Service brake	Hydraulic pedal
Parking brake	Mechanical manual
Battery voltage / volume	48 V / 140 Ah
Driving generator power	AC 3 kW
Oil pump generator power	DC 3 kW
