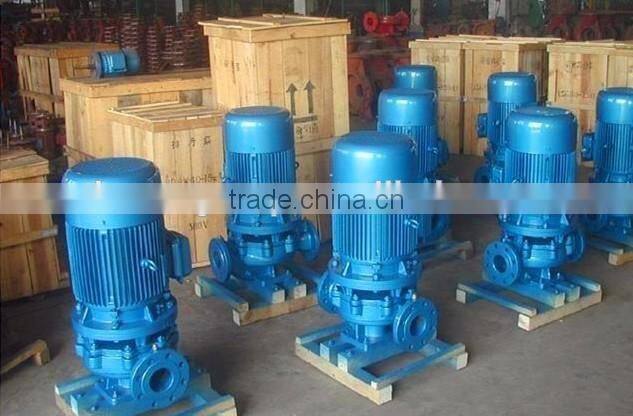

Vertical Inline Centrifugal Hot Water Pipe Pump

ISGType Low Speed pipeline single-stage single suction centrifugal pump system base on ZFW series and in line with international standards of performance parameters, and according to the unique structure design of pipeline centrifugal pump, and in strict accordance with international standards of design and manufacture.

The most advanced hydraulic model, the domestic pump experts to provide efficient, reliable performance, some products are exported overseas, deeply domestic and foreign customers praise.

Product Characteristic:

ISG Type Low Speed inline single-stage single suction centrifugal pump is equipped with low speed motor based on ZFW type horizontal centrifugal pump, greatly reducing the running noise, doubled the life of wearing parts, the most suitable for the end of the air-conditioning circulation and circulation heating and circulating system booster.

Vertical or horizontal structure innovation design so that it covers an area of and occupy less space, more convenient to use.

Working conditions:

1. The maximum working pressure of motor 0.75kW above pump system for 1.6MPa, namely the pump suction pressure + pump head ≤ 1.6MPa, 0.75kW below the highest working pressure of 0.8MPa pump system.

2. When ordering, please specify the system working pressure, pump pressure greater than 1.6MPa system, should be put in order, in order to manufacture pump over-current part and a connecting part adopts a more reasonable material.

3.ISG type pump medium for hot and cold water or similar physical and chemical properties of liquid water, medium temperature does not exceed 105 °C.

Product Usage:

ISG Type Low Speed pipeline single-stage single suction centrifugal pump: mainly used for air conditioning system of frozen water, cooling water circulation and terminal pressure, city heating system with local or at the end of the boosting circulation, and city building fire system of partial pressure and various air-conditioning hot water boiler.
