2BV Liquid ring vacuum pump Efficient compressor air compressor and vacuum pumps

Specifications

Desription

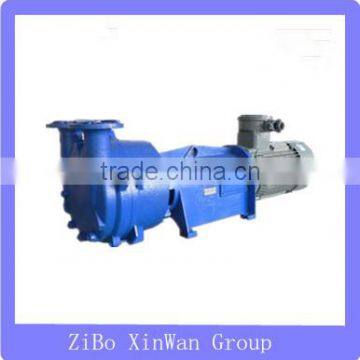

2BV series liquid ring type vacuum pump and compressor as the new generation of energy saving products, its outstanding performance and advantages will replace SK, 2SK series water ring vacuum pump, W, WY, WL series reciprocating vacuum pump.


Advantage


2BV series pump for air and water vapour pressure to breathe, 33mbar absolute pressure (97%), vacuum pump suction pressure when in 80mbar below the condition, long-term work connected with protecting tube cavitation erosion of pump injector, i.e., protecting atmosphere, inspiratory pressure can reach 10mbar, injector pump can be directly mounted in a compressor, the pressure, to 0.26 MPa (maximum absolute pressure).

2BV series water ring vacuum pumps as a new generation energy-saving products, and the excellent performance and numerous advantages will be fully replace with same properties of SK, 2SK series water ring vacuum pumps and W, WY, WL series reciprocating vacuum pump.
Vacuum pump accessories: impeller,disc, the pump cover, pump body materials can be chosen as following:
SUS304 (0Cr18Ni9)
SUS316 (0Cr17Ni12Mo2)
SUS316L (00Cr17Ni14Mo2)

Pump shaft materials:2Cr13, SUS304 and SUS316L
Mechanical seal uses imported products, Seals can use viton or PTFE.
2BV2 - Ex, 2BV6 series water ring type vacuum pump/compressor is mainly used for surking explosive gas, and various inflammable and explosive of working environment, its performance parameters are as the same as 2BV2, 2BV5 series
