Home > Products > New Products > 35mm Running Double-seal Flat Base Faucet Ceramic Cartridge Valve Core
35mm Running Double-seal Flat Base Faucet Ceramic Cartridge Valve Core
- 100000 Piece / Pieces per Month
- Shanghai Ningbo Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Yunkai | |
| Model Number | YK FC B35D | Material | Other, Ceramic, Ceramic |
As customer's requests of ceramic cartridge
Product Description

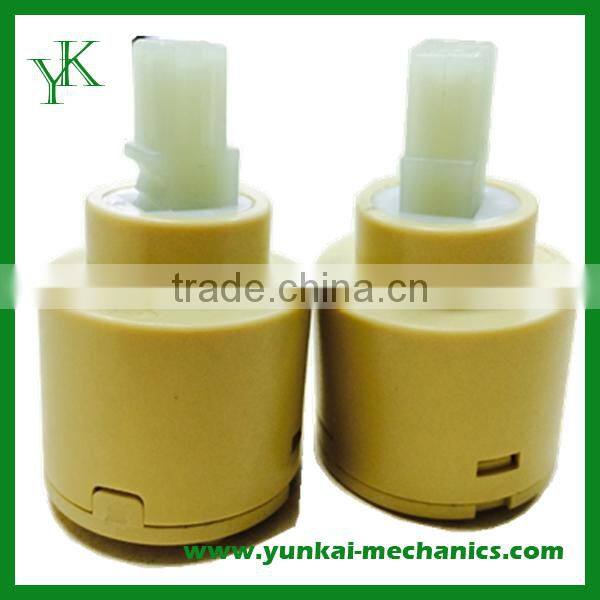

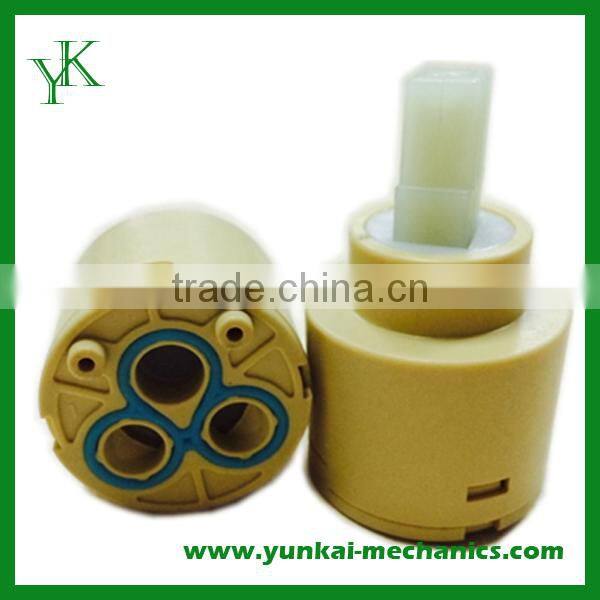

35mm Running Double-seal Flat Base Faucet Ceramic Cartridge Valve Core
FETURES:
1) Best Sealing capability
2) Long life cycle
3) Fluent flow rate
4) Quick delivery
5) Size and weight can be changed as your request.

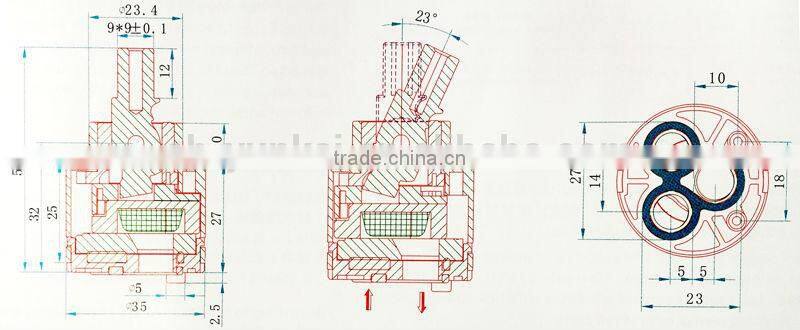

SPECIFICATION of Ceramic cartridge :
Max temperature | 90°C |
Max turn angle | 100° |
Max opening angle | 30° |
Level torque test | 0.2~0.3N.m (static pressure at zero) |
Burst test pressure | water static pressure Max 3.5MPa |
Air pressure test | 0.8MPa (One by one tested by 100%) |
Gland nut torque | 8~12N. m (Advice 10N.m) |
Noise level | Max 20db at 3bar (with noise reducer) |
Lever break torque | ≥15N m |
Ceramic disc | 1. Material: AL2O3 95% 2. Hardness: ≥1150HV5 3. Flatness: 0.2um 4. Roughness: 0.2um 5. Porosity: 60%~80% |

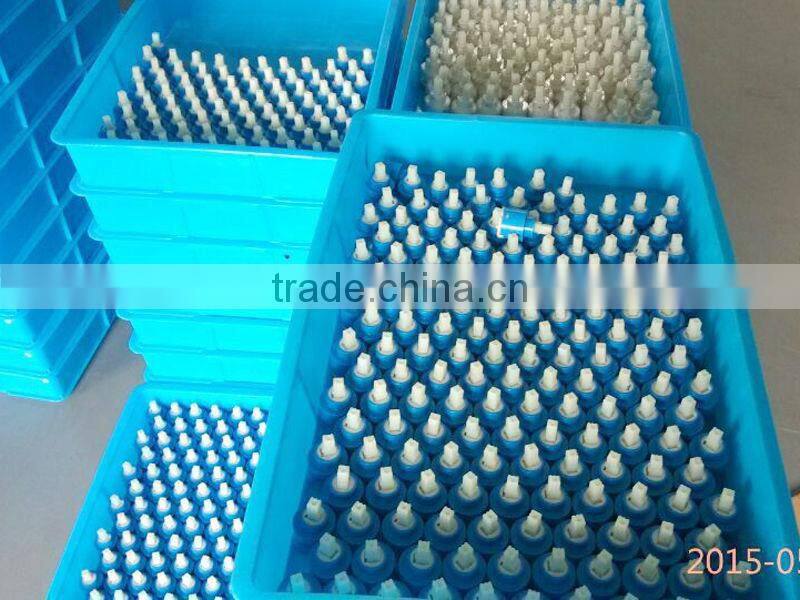

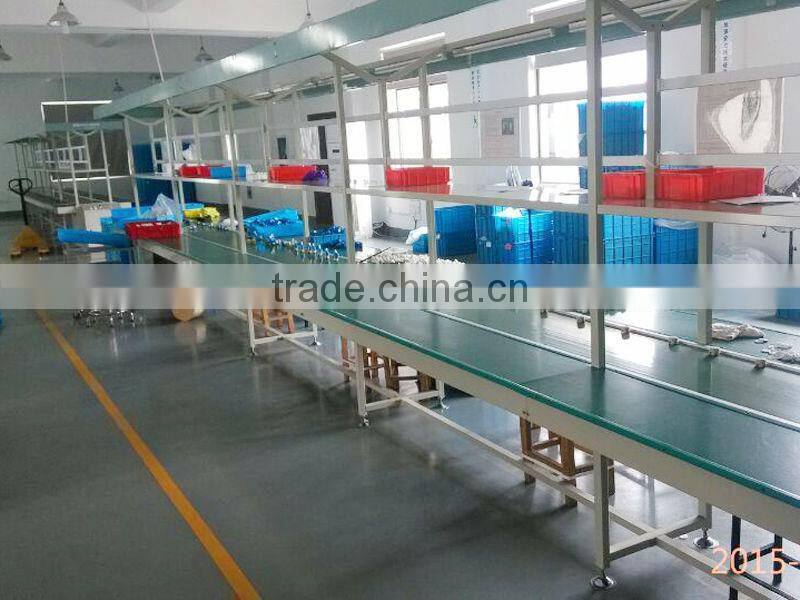

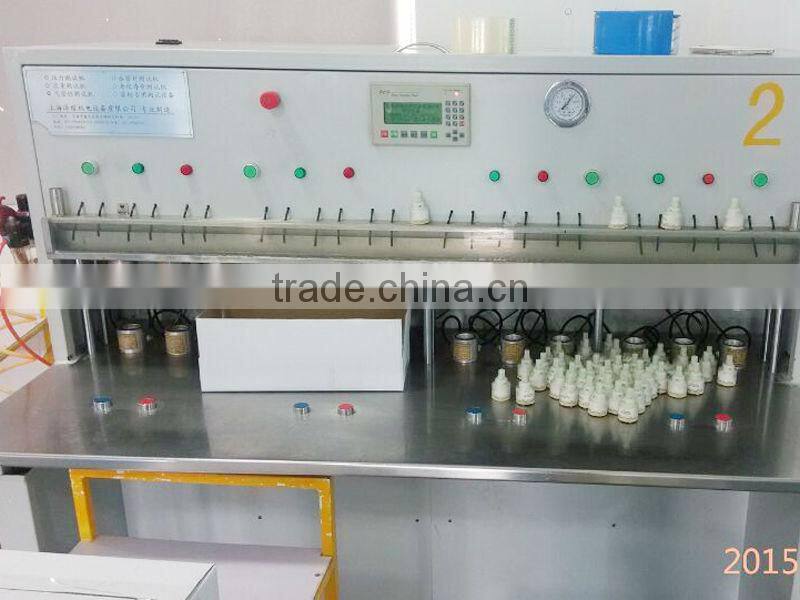

Factory Show
Yunkai Ceramic cartridge
Yunkai ceramic cartridge, is with best price and best quality. The cartridges can be used in kitchen, bathroom, etc, all places related with faucet.
All of our ceramic cartridges are best Sealing capability, long life cycle, and fluent flow rate, with 100% inspection before packing and shipping.
You can customize logo or packing as requests.
Yunkai Ceramic cartridge, your best cleaning choice.
Company Profile
We are a provider dedicated to providing OEM/ODM machining products, with years of experience in this field. - Wide product range: Customized products include a range of CNC machining products, plastic injection parts, Die casting parts, Stamping parts, etc. - Rich experience: Since 2004, we have started the business in this field. We have accumulated rich experience for understanding the drawing and machining requirements from different countries. - Dedicated staff: Our team consists of specialized sales personnel and highly skilled engineers. Good team cooperation becomes our core spirit. We trust team cooperation is stronger. Our own engineers can track the whole course and control the quality to ensure satisfactory parts are supplied to our customers - Strictly quality control system: We check each drawing carefully before quotation, with the complete process inspection, including raw-material general inspection, process random inspection, finished random inspection and packing inspection. When you choose Yunkai, you are selecting the best products, features, warranty and service.
