DF walking tractor, GN walking tractor, tractor parts

FOB Price

USD $700 - $1,000 / Set

5 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Walking Tractor
By wheel	2WD	Usage	Farm Tractor
Drive Type	Gear Drive	Power(W)	12hp
Certificate	CE	Brand Name	OEM
Model Number	121/151	Place of Origin	Anhui, China
After-sales Service Provided	Overseas third-party support available

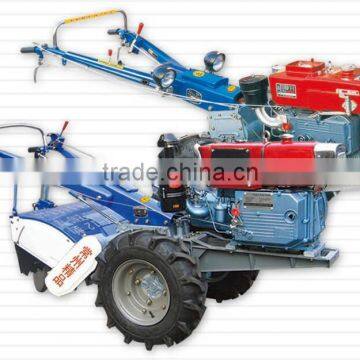

DF WALKING TRACTOR

DF121

Engine	Pattern	horizontal , One Cylinder, Four Stroke, Diesel powered, Water-cooled
	Model	ZS195N
	Displacement(L)	0.815
	Oil Consumption (g/ km. h)	less than250
	Engine Oil Consumption (g/ km. h)	less than2.00
	Rated Power(kw)	8.82
	Rated Speed(rpm)	2000
Type		DF
Machine Parameters	Starting Type	Hand start
	Overall Size(mm)	26809601250(without seat)
	Wheel Tread(mm)	800
	Minimum Ground Clearance(mm)	185
	Minimum Turning Radius(m)	0.9
	Structural Weight(kg)	360 (with connecting frame), 470(with rotary tiller)
	Tyre	6.00-12
	Theoretical Speed(km/h)	Forward:1.4,2.5,4.1,5.3,9.4,15.3 Reverse:1.1,3.8
	Rated Traction(N)	2000
	Gearbox	(3+1)×2
	Oil Type	0# in summer,-10# or 20# in winter
	Cooling type	Evaporation
	Rear-Wheel Diameter(mm)	340
Rotavator	Number of blades	18pcs
Rotavator	Rotary tilling width	600mm

DF151

Engine	Pattern	Vertical, One Cylinder, Four Stroke, Diesel powered, Water-cooled
	Model	1100
	Displacement(L)	0.913
	Oil Consumption (g/ km. h)	320
	Engine Oil Consumption (g/ km. h)	2.72
	Rated Power(kw)	10.3
	Rated Speed(rpm)	2000
Machine Parameters	Type	Pull and Drive
	Overall Size(mm)	26809601250(without seat)
	Wheel Tread(mm)	800
	Minimum Ground Clearance(mm)	185
	Minimum Turning Radius(m)	0.9
	Structural Weight(kg)	360 (with connecting frame), 480(with rotary tiller)
	Tyre	6.00-12
	Theoretical Speed(km/h)	Forward:1.4,2.5,4.1,5.3,9.4,15.3 Reverse:1.0,3.8
	Rated Traction(N)	2400
	Gearbox	(3+1)×2
	Oil Type	0# in summer,-10# or 20# in winter
	Cooling Type	Evaporation
	Rear-Wheel Diameter(mm)	340

DF181

Engine	Pattern	Vertical, One Cylinder, Four Stroke, Diesel powered, Water-cooled
	Model	1105
	Displacement(L)	1.194
	Oil Consumption (g/ km. h)	320
	Engine Oil Consumption (g/ km. h)	2.72
	Rated Power(kw)	13.23
	Rated Speed(rpm)	2000
Machine Parameters	Type	Pull and Drive
	Overall Size(mm)	26809601250(without seat)
	Wheel Tread(mm)	800
	Minimum Ground Clearance(mm)	185
	Minimum Turning Radius(m)	0.9
	Structural Weight(kg)	360 (with connecting frame), 480(with rotary tiller)
	Tyre	6.00-12
	Theoretical Speed(km/h)	Forward:1.4,2.5,4.1,5.3,9.4,15.3 Reverse:1.0,3.8
	Rated Traction(N)	2400
	Gearbox	(3+1)×2
	Oil Type	0# in summer,-10 or 20 in winter
	Cooling Type	Evaporation
	Rear-Wheel Diameter(mm)	340
