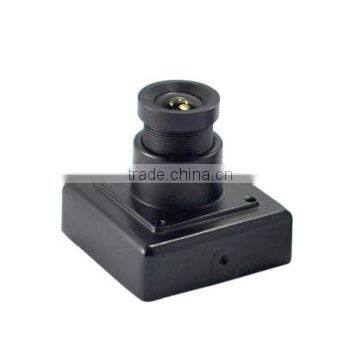

700TVL Effio-P SONY CCD Board Cameras

Specifications

Value

Total Pixel

NTSC: 1020(H) X 596(V)

PAL: 1020(H) X 596(V)

Effective Pixel

NTSC: 976(H) X 494(V)

PAL: 976(H) X 582 (V)

Inter  H/V

NTSC: 15,734/59.94Hz

PAL: 15,625/50Hz

LL H/V

NTSC: 15,750/60Hz

PAL: 15,625/50Hz

Horizontal/Vertical Resolution

700TV Lines

Minimum Illumination (F1 2)

Color: 0.1 Lux(501RE) / 0.02 Lux (151RE) BAN: 0.08Lux(501RE) / 0.002 Lux (151RE)

S/N Ratio

>52dB

Lens

3.6mm MTV lens (Wide angle lens, Pinhole lens, Vari-focal lens for option)

Full OSD Functions

Multi languages optional

Day and Night

Auto / Color / B/W

ATW

1800 - 10500K

High Speed Shutter

1/60(1/50) - lll0Ksec

Flicker-less

Off/On(External Optional)

ATR (Adaptive Tone Reproduction)

Off/ON (Luminance (L,M,H),Contrast (LML,M,MH,H))

AGO

Level Setting

AUTO iris

DC Auto Iris

MANUAL iris

Off/On (Level Setting)

Line Lock

Off/On (Phase Control)

Camera ID

Off/On (Letters A to Z, Numerals O to 9, Symbols)

White Balance

ATWIPUSH/USER1/USER2/ANTI/ CR/MANUAL/PUSH LOCK

Gammar

0.45

Color Gain Control

Level Setting

Motion Detection

4 Area (On/Off, Position, Sensitivity)

Privacy Mask

8 Area (On/Off, Color, Position)

Sense up

Auto x2 - Auto x512

Etc. Function

Sharpness, Reverse(H)

Alarm Output

1 ea(Open Collector)

Video Output

VBS 1.0V p-p (75ohm Terminated)

Power input

DC 12V±10%

Power Consumption

Max 1.8W

Size

30x30mm
