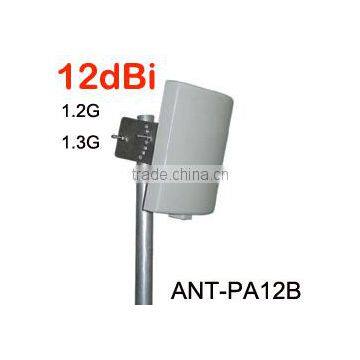

1.3GHz patch antenna for long range video transmitting

Specifications

Our 1.2 GHz wireless antennas to address applications including wireless video links, wireless security cameras, wireless video transmitters, and wireless security systems.

Applications:

* 1.2GHz Band

* Wireless Video Links

* Wireless Security Cameras

* Wireless Video Transmitters

* Wireless Security Systems

Fetures:

*  Elegant appereance

*  Anti-shock, weatherproof, anti-corrosion ability

* 24hrs working

*  Optimized size

* High gain, low VSWR, anti-jamming

Custom Connectors

If you need a customized connector for this antenna, please contact  for connector options, prices and availability. By default, we will ship the 1M extension cable with SMA male connector.

Electric Specifications:
Frequency range: 1100-1300MHz
Bandwidth: 200MHz
Gain: 12dBi
Beamwidth: H:65   V:40 degrees
VSWR: <1.5
Input Impedance: 50Ω
Polarization: Vertical
Max power: 50W
Lightning protection: DC ground
Connector type: N Male or others SMA

Mechanical Specifications:
Size: 225*195*47mm
Antenna weight: 0.45KG
Working Temperaturer: -40~60 C degrees
Rated Wind Velocity: 60 m/s
Radome color: white
Mounting way: hold in the pole
Pole diameter: 35-50mm
