Wholesale Rectangular Nickl Magnet

FOB Price

US$ 0.01 - 1 / Piece

1000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Richeng	Model Number	NMR
Type	Permanent	Composite	NdFeB Magnet
Shape	Other, Block, as per the picture	Application	Industrial Magnet

1.Dimension:1-150mm.can be customised
2.Grade:N33-N52M,H,SH,UH,EH,AH.
3.Working temp:80-230 degree.
4 Original Manufacture

Nickl Magnet
1)Material:Neodymium(29-32.5%)-Iron(63.95-68.65%)-Boron(1.1-1.2%);
2)Max working temp.:Much depend on the material of the magnet,our AH grade material can reach 230 degree centigrade;
3)Shape:Disc,cylinder,ring,rectangle,strip and other non-standard shapes are available;
4)Size:Custom made;
5)Surface treating:Nickel(Ni-Cu-Ni),Black Nickel,Zinc(Zn),Gold(Au),Silver(Ag),Black Epoxy etc;
6)Quality control:SGS.

Sintered Neodymium(NdFeB) magnets are the most advanced commercialized permanent magnet materials today.
With far better permanent magnetic performance compared with traditional magnets,sintered neodymium magnets
are the key functional materials for mordern industry.

RICHENG MAGNET have the ability to manufacture a full range of neodymium magnets from N33 to N52, and in various types.
In addition to the stock shapes, sizes, and grades listed, others are available. Please inquire. Non-standard shapes and sizes
can be machined to blueprint specifications.
welcome to the word of NdFeB magnet,we will give you the besr technical support at any convenient time

Product information:

Description	Disc Neodymium Magnets
Material	Neodymium-Ferrum-Boron
Working Temperature	Grade	Max.operating temperates	Hcj(koe)
	N35-N48	80°C	≥12
	N50-N52	60°C	≥11
	33M-48M	100°C	≥14
	33H-48H	120°C	≥17
	30SH-45SH	150°C	≥20
	30UH-40UH	180°C	≥25
	28EH-38EH	200°C	≥30
	28AH-35AH	220°C	≥33
Magnet Shape	Disc, Cylinder, Block, Ring, Countersunk,Trapezoid, Irregular shapes and more. Customized shapes for NdFeB magnet are available.

Magnet Coating	Nickel,Black, Zn, Gold, Silver, Copper, Epoxy, and more.

Material Advantage	Neodymium(29-32.5%)-Iron(63.95-68.65%)-Boron(1.1-1.2%)

Technology Advantage	Depending on advanced R&D center, Quality control team and professional machining technicians, we can surpass our competitors in the stability of quality and superiority of property

Delivery Advantage	The lead time must be 1-2days quicker than industry average because of more flexible machine process control.

Manufacture Advantage	we are the manufacturer,and specialized in this field for 8 years

Price Advantage	The price is 3%-5%cheaper than industry average because of an excellent and efficient management system.

Introduction	Sintered Neodymium(NdFeB) magnets are the most advanced commercialized permanent magnet materials today.With far better permanent magnetic performance compared with traditional magnets, Strong Cylinder magnet are the key functional materials for mordern industry.

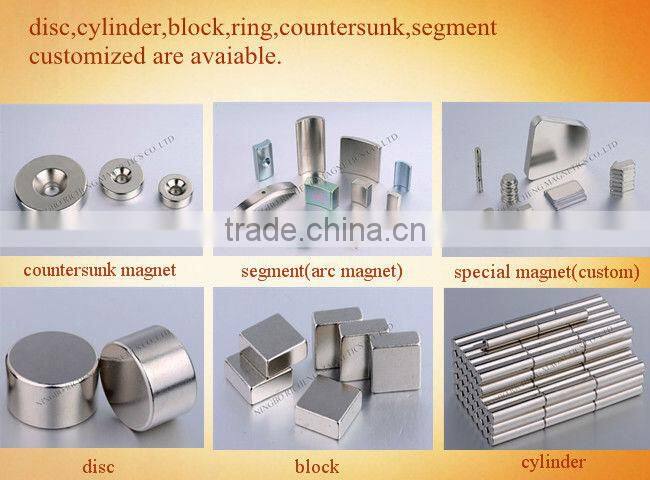

Magnet shape:

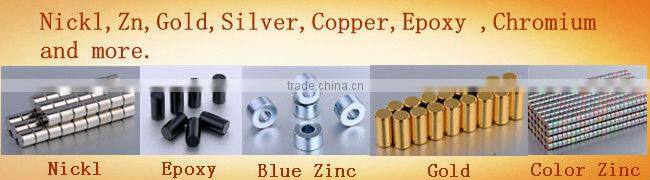

Magnet coating:

Surface	Coating	Thickness	Color	Resistance
Nickel	Ni+Ni	10 to 20	Bright Silver	Excellent against Humidity
	Ni+Cu+Ni
Zinc	Zn	8 to 20	Bright Blue	Good Against Salt Spray
	C-Zn		Shinny Color	Excellent Against Salt Spray
Gold	Ni+Cu+Au	10 to 20	Gold	Superior Against Humidity
Epoxy	Epoxy	15 to 25	Black,Red,Grey	Excellent Against Humidity & Salt Spray
	Ni+Cu+Epoxy
	Zn+Epoxy
Chemical	Ni	10 to 20	Silver Grey	Excellent Against Humidity

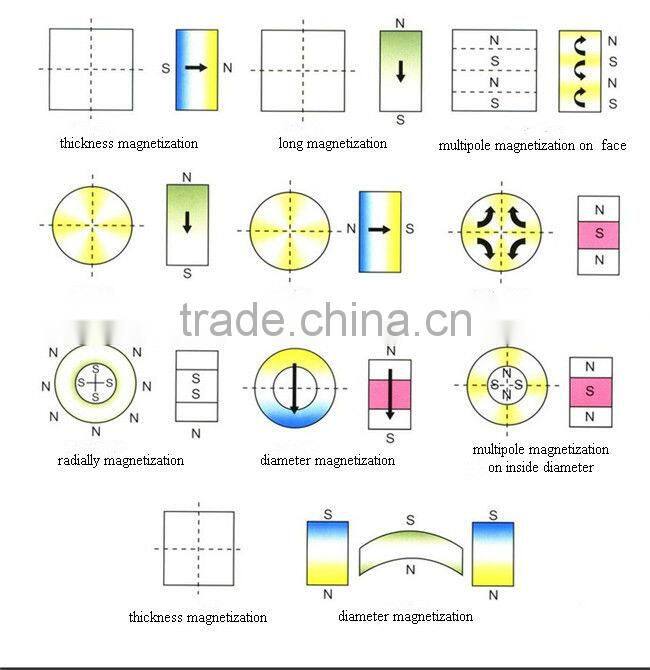

Magnetization:

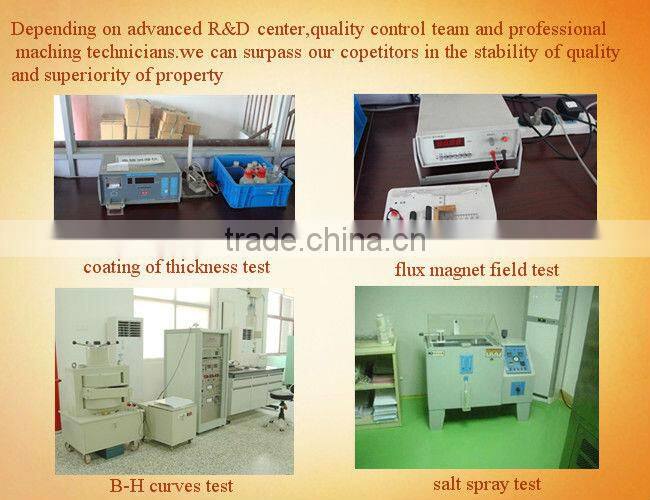

Inspection:

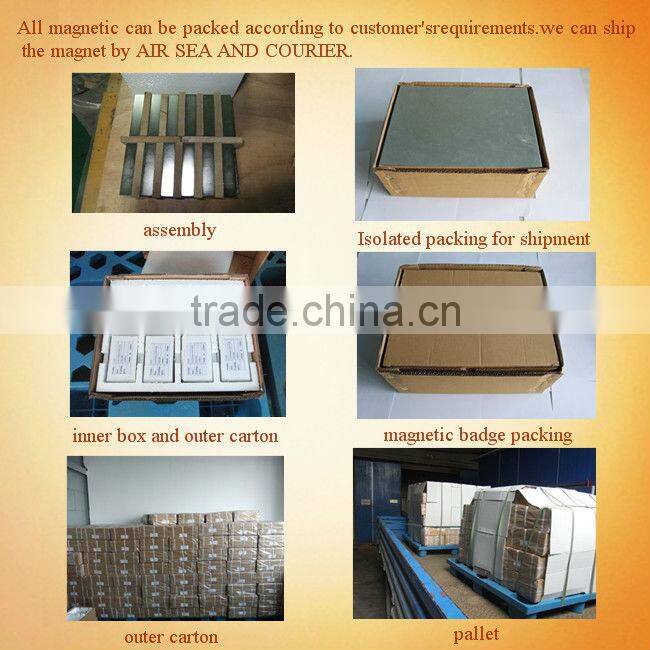

Packing:

QC Team

QC team consists of professional people to ensure products high quality.

Contact Us

We will reply your email or fax within 12 hours.

Please call me if you have any questions about your magnet

Transportation

All available shipping ways could be applied, by courier, air or sea.

Appointed shipping company or our own forwarders all could be used in shipment
