ADSS Cable Fittings Dead End Tension Clamp
- Xingang
 - T/T

You May Like
Product Details
| Brand Name | CMI guy wire clamp | Model Number | 6410 |
special design for Deadend Hardware offest 6410 5/8 Bolted Guy wire Clamp
Product Description

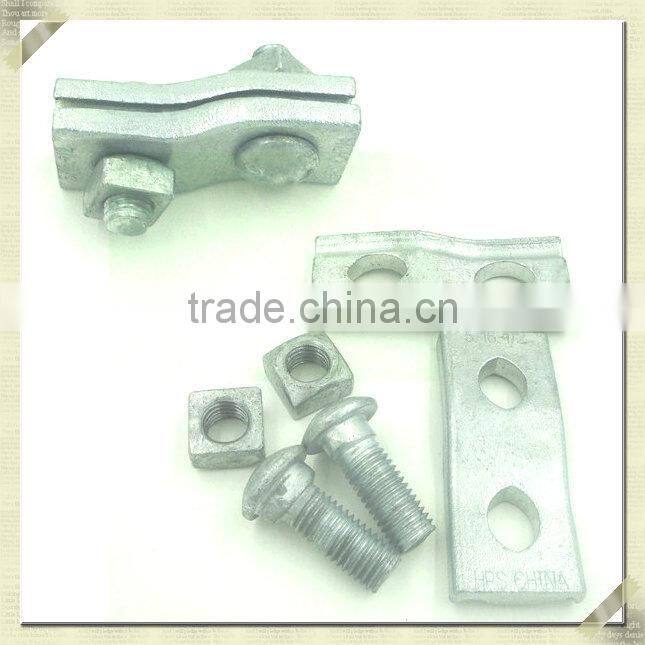

Deadend Hardware offest 6410 5/8Bolted Guy wire Clamp
1:This twobolt offset guy clamp with curved clamping member provides a more positive hold on the guy
strand.
2: This clamp has 5/8" diameter bolts.
3: Hot dip galvanized.
4: CMI Guy clamps are made from hot rolled steel bars.

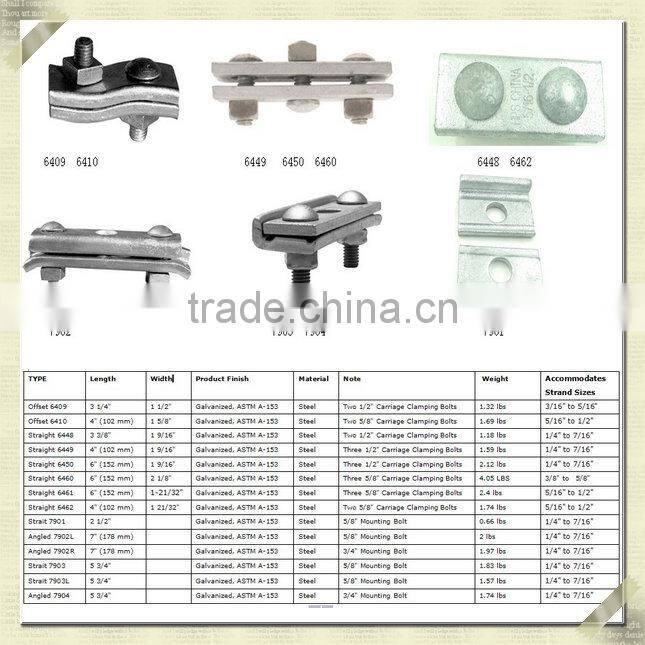

TYPE  | Length  | Width  | Product Finish  | Material  | Note  | Weight  | Accommodates  |
Offset 6409  | 3 1/4"  | 1 1/2"  | Galvanized, ASTM A-153  | Steel  | Two 1/2" Carriage Clamping Bolts  | 1.32 lbs  | 3/16" to 5/16"  |
Offset 6410  | 4" (102 mm)  | 1 5/8"  | Galvanized, ASTM A-153  | Steel  | Two 5/8" Carriage Clamping Bolts  | 1.69 lbs  | 5/16" to 1/2"  |
Straight 6448  | 3 3/8"  | 1 9/16"  | Galvanized, ASTM A-153  | Steel  | Two 1/2" Carriage Clamping Bolts  | 1.18 lbs  | 1/4" to 7/16"  |
Straight 6449  | 4" (102 mm)  | 1 9/16"  | Galvanized, ASTM A-153  | Steel  | Three 1/2" Carriage Clamping Bolts  | 1.59 lbs  | 1/4" to 7/16"  |
Straight 6450  | 6" (152 mm)  | 1 9/16"  | Galvanized, ASTM A-153  | Steel  | Three 1/2" Carriage Clamping Bolts  | 2.12 lbs  | 1/4" to 7/16"  |
Straight 6460  | 6" (152 mm)  | 2 1/8"  | Galvanized, ASTM A-153  | Steel  | Three 5/8" Carriage Clamping Bolts  | 4.05 LBS  | 3/8" to 5/8"  |
Straight 6461  | 6" (152 mm)  | 1-21/32"  | Galvanized, ASTM A-153  | Steel  | Three 5/8" Carriage Clamping Bolts  | 2.4 lbs  | 5/16" to 1/2"  |
Straight 6462  | 4" (102 mm)  | 1 21/32"  | Galvanized, ASTM A-153  | Steel  | Two 5/8" Carriage Clamping Bolts  | 1.74 lbs  | 5/16" to 1/2"  |
Strait 7901  | 2 1/2"  |
  | Galvanized, ASTM A-153  | Steel  | 5/8" Mounting Bolt  | 0.66 lbs  | 1/4" to 7/16"  |
Angled 7902L  | 7" (178 mm)  |
  | Galvanized, ASTM A-153  | Steel  | 5/8" Mounting Bolt  | 2 lbs  | 1/4" to 7/16"  |
Angled 7902R  | 7" (178 mm)  |
  | Galvanized, ASTM A-153  | Steel  | 3/4" Mounting Bolt  | 1.97 lbs  | 1/4" to 7/16"  |
Strait 7903  | 5 3/4"  |
  | Galvanized, ASTM A-153  | Steel  | 5/8" Mounting Bolt  | 1.83 lbs  | 1/4" to 7/16"  |
Strait 7903L  | 5 3/4"  |
  | Galvanized, ASTM A-153  | Steel  | 5/8" Mounting Bolt  | 1.57 lbs  | 1/4" to 7/16"  |
Angled 7904  | 5 3/4"  |
  | Galvanized, ASTM A-153  | Steel  | 3/4" Mounting Bolt  | 1.74 lbs  | 1/4" to 7/16"  |

Shanxi Century Metal have dealt wit the trade and manufacturing about 10years. Our products covering: diferent flanges, power line hardware, insulator fitting, roller shutter parts, trailer parts, valve parts etc. All of them are made as clients' drawings. Service ability is sound. Please take it easy to place order to us.



Company Profile

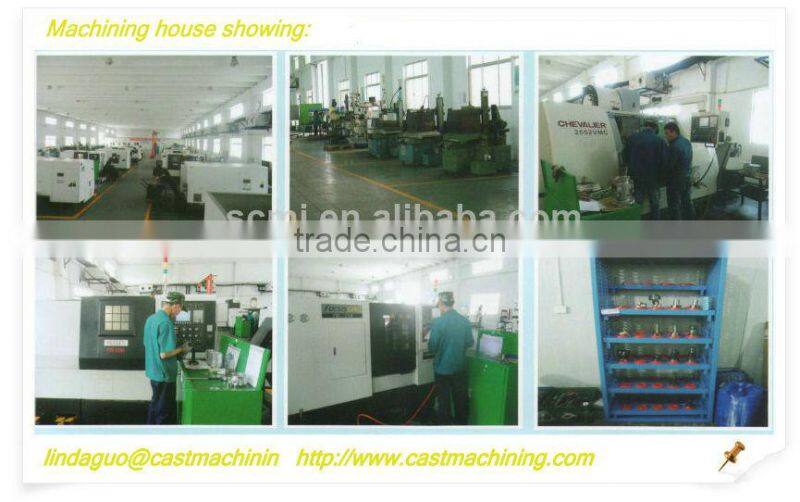

                    Shanxi Century Metal Industries Inc. is a privately owned and export-oriented manufacturer. Our production range inlcude investment casting, fabrication, CNC machining and assembly, and our quality products are being exported to United states, Canada, Austrailia, Demark, Korea and many other countries since 1998. With many years experience in metal processing, quality control and customer service, we have set up our unique management system for all our products. We start with your technical specification, our design engineers will work with your engineers to understand all of your requirements, recommend you the most effective production method, improve product performance and keep production costs to a minimum. After finalizing design and production method, production QA will be made by our engineers, and will be followed in production process. We will oversee all facts of the manufacture process, including casting, forging, machining, assembly, painting and galvanizing. We have a fully equipped laboratory with chemical composition tester, tensile tester, impact tester and hardness tester, our inspection engineer conducts mechanical property testing on each batch prior to delivery. All products made by us and all components sourcing from other manufacturers will be 100% inspected by our professional inspectors according to strict final inspection QA, which include material checking, visual checking, gauges checking, finishing checking and so on. Any out of specification products will be rejected by our internal quality system. For any delivery we have detailed internal inspection results records, and they are available for customers within 3 years. Complete Quality Assurance system makes our products 100% reliable, so we have very good reputation in our customers, and have become one of the top performers in our market segment. Our main focus is on the manufacture of specialized products for demanding applications, we guarantee economical price, frienly service and superb quality to you. To succeed with us together !
