Angular Contact Ball Bearings Bearings 3201BTNG 3203
- qingdao
- T/T D/P D/A Credit Card
You May Like
Product Details
| Brand Name | YWS oem | Bore Size | 5, 100 | |
| Outside Diameter | 7, 215 | Model Number | 3200 5200 3201 5201 3202 5202 3302 5302 3203 5203 3303 5303 | |
| Precision Rating | p0 p6 P5 | Seals Type | open | |
| Number of Row | Single Row | Place of Origin | Shandong, China |
Product Description

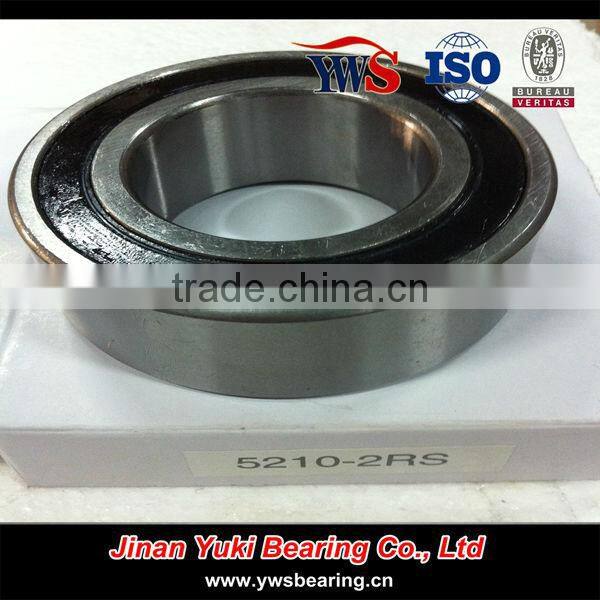

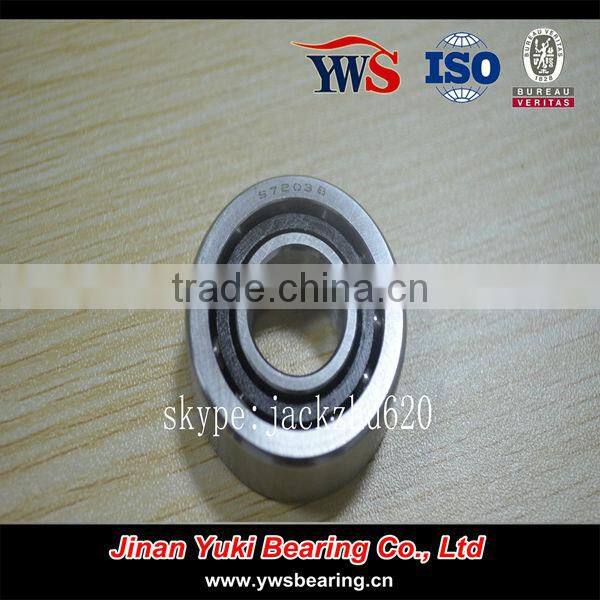

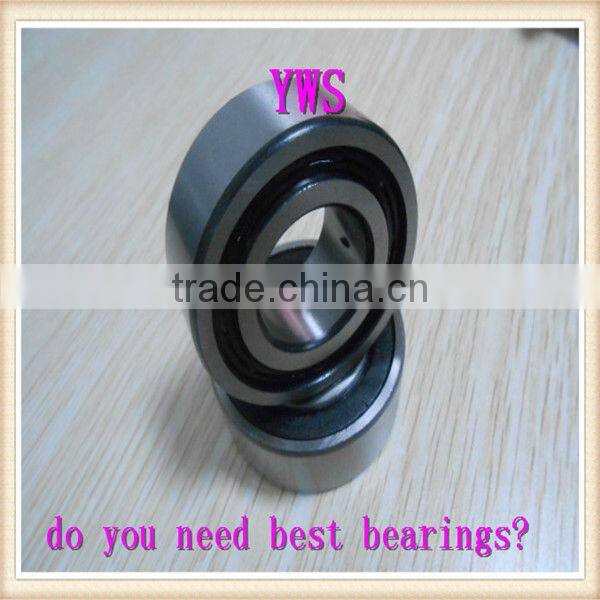

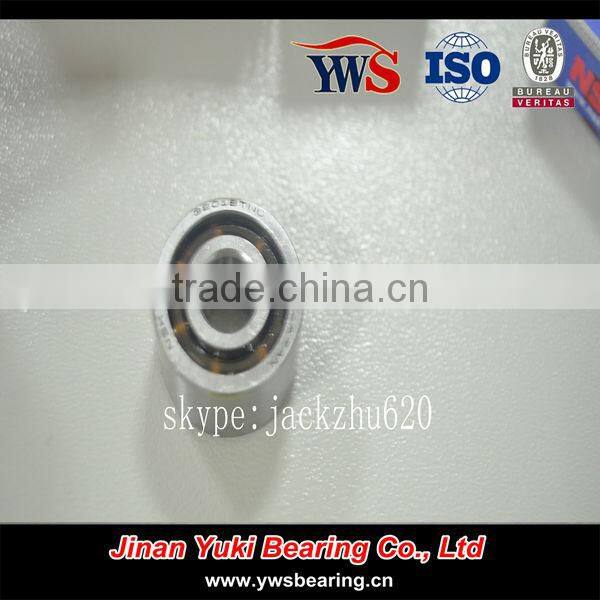

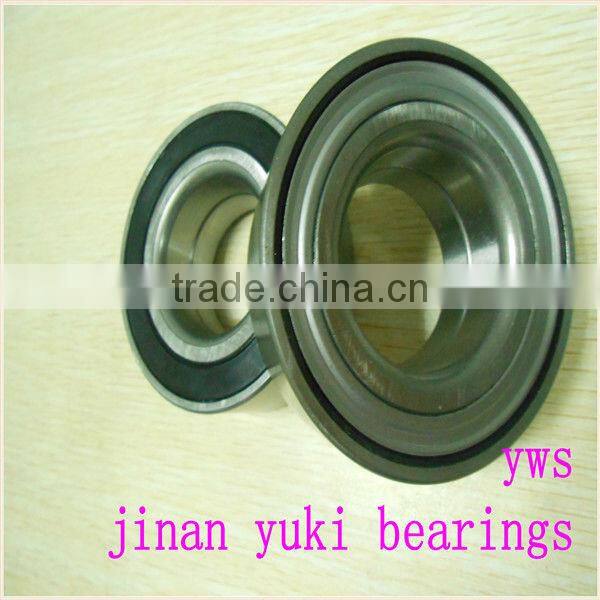

angular contact ball bearings bearings 3201BTNG 3203 :
Description:
Compared with the single row angular contact ball bearings, double row angular contact ball bearing has better rigidity, can withstand the overturning moment. Bearing is not separated. There is a requirement for high rigidity is particularly suited to applications. Widely used in the car front wheel hub (some models also use same size double row tapered roller bearing).
This kind of bearing outer ring of locking in on the inner and outer rings can not be separated, can be combined radial and axial loads and axial loads in one direction. Axial load capacity determined by the contact angle, the contact angle is large, the ability to withstand high axial loads. This kind of bearing shaft or housing to limit axial displacement in one direction.
l single row: 78XX, 79XX, 70XX, 72XX, 73XX, 74XX
2 Miniature bearings: 70X
3.double rows: 52XX, 53XX, 32XX, 33XX, LD57, LD58
4 four point contact: QJ2XX, QJ3XX
Specifications:
Products name | Ball Bearing |
Brand name | YWS or OEM Brands |
ID size | Standard and non-standard sizes available |
Material | Carbon Steel / Chrome Steel/STAINLESS STEEL |
Closures | Open, metal Sealed, rubber sealed, Nylon sealed |
Types | Open,Z,ZZ,RS,2RS,RZ,2RZ. For non standard bearing,there are many different types with various sizes for our clients and we can alsodesign or develop customized products as per the samples or drawings provided by our clients. |
Delivery date | 2-25 days |
Payment terms | A: 30% T/T in advance .70% against copy of B/L B.30% T/T in advance .70% against L/C at sight C.Western union D.Paypal |
About us | Established in 2004, Jinan yuki bearing Co., Ltd. is a sino-japanese joint ventured company |
Package | A.Polybag +Box+Carton B.Tube+Box+Carton C.As per customer's request |
|
|
part number
| model | model | d(mm) | D(mm) | B(mm) |
| 3200 | 5200 | 10 | 30 | 14.3 |
| 3201 | 5201 | 12 | 32 | 15.9 |
| 3202 | 5202 | 15 | 35 | 15.9 |
| 3302 | 5302 | 15 | 42 | 19 |
| 3203 | 5203 | 17 | 40 | 17.5 |
| 3303 | 5303 | 17 | 47 | 22.2 |
| 3204 | 5204 | 20 | 47 | 20.6 |
| 3304 | 5304 | 20 | 52 | 25.4 |
| 3205 | 5205 | 25 | 52 | 20.6 |
| 3305 | 5305 | 25 | 62 | 25.4 |
| 3206 | 5206 | 30 | 62 | 23.8 |
| 3306 | 5306 | 30 | 72 | 30.2 |
| 3207 | 5207 | 35 | 72 | 27 |
| 3307 | 5307 | 35 | 80 | 34.9 |
| 3208 | 5208 | 40 | 80 | 30.2 |
| 3308 | 5308 | 40 | 90 | 36.5 |
| 3209 | 5209 | 45 | 85 | 30.2 |
| 3309 | 5309 | 45 | 100 | 39.7 |
| 3210 | 5210 | 50 | 90 | 30.2 |
| 3310 | 5310 | 50 | 110 | 44.4 |
Angular contact ball bearings product catalogue |
706C , B706C series | 706C 707C 708C 709C B706C B707C B708C B709C |
724C series | 724C 725C 726C 727C 728C 729C | |
7000C series | 7000 7001 7002 7003 7004 7005 7006 7007 7008 7009 7010 7011 7012 7013 7014 7015 7016 7017 7018 7019 7020 7021 7022 7024 7026 7028 7030 7032 7034 7036 7038 7040 | |
7200C series | 7200 7201 7202 7203 7204 7205 7206 7207 7208 7209 7210 7211 7212 7213 7214 7215 7216 7217 7218 7219 7220 7221 7222 7224 7226 7228 7230 7232 7234 7236 7240 7244 7248 | |
7303C series | 7303 7304 7305 7306 7307 7308 7309 7310 7311 7312 7313 7314 7315 7316 7317 7318 7319 7320 7322 7324 7328 7330 7332 7336 7340 | |
7406 series | 7406 7407 7408 7409 7410 7411 7412 7413 7414 7415 7416 7418 | |
71900 series | 71900 71901 71902 71903 71904 71905 71906 71907 71908 71909 71910 719011 71912 71913 71914 71915 71916 71917 71918 71919 71920 71922 71924 71926 71928 71930 71932 71934 71936 71938 71940 | |
3200/5200 series | 3200 3201 3202 3203 3204 3205 3206 3207 3208 3209 3210 3211 3212 3213 3214 3216 3218 3219 | |
3302/5302 series | 3302 3303 3304 3305 3306 3307 3308 3309 3310 3311 3312 3313 3314 3315 3316 | |
QJ208 series | QJ208 QJ212 QJ215 QJ219 QJ220 QJ222 QJ224 QJ226 QJ230 QJ232 QJ234 QJ236 | |
QJ307 | QJ307 QJ313 QJ314 QJ315 QJ316 QJ317 QJ318 QJ319 QJ320 QJ322 QJ324 QJ326 QJ328 |
