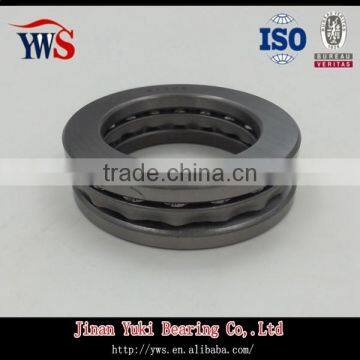

Steel cage thrust ball bearing 51708
US$ 0.5 - 3.2
/ Set
1 Set(Min. Order)
- Qingdao / Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | Yuki bearing/YWS | Bore Size | 10, 90 | |
| Outside Diameter | 24, 120 | Model Number | 51708 | |
| Precision Rating | P0 P6 P5, P0 P2 P4 P5 P6 | Seals Type | Open, open | |
| Number of Row | Single Row | Place of Origin | Shandong, China |
Product Description
Steel cage thrust ball bearing 51708
Product Description
Packaging & Shipping
Precautions
Types of thrust ball bearings
- Single direction thrust ball bearings: consist of two washers with raceways and balls guided b a cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.
- Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.
Bearing Catalog
| Model No. | Size | Load | Speed | Mass(Kg) | ||||
| mm | (kN) | (kN) | rpm | |||||
| d | D | T | Cr | Cor | Grease | oil | ||
| 51103 | 17 | 30 | 9 | 10.8 | 18.2 | 5,300 | 7,500 | 0.024 |
| 51104 | 20 | 35 | 10 | 14.2 | 24.5 | 4,800 | 6,700 | 0.036 |
| 51105 | 25 | 42 | 11 | 15.2 | 30.2 | 4,300 | 6,000 | 0.055 |
| 51106 | 30 | 47 | 11 | 16 | 34.2 | 4,000 | 5,600 | 0.062 |
| 51107 | 35 | 52 | 12 | 18.2 | 41.5 | 3,800 | 5,300 | 0.077 |
| 51108 | 40 | 60 | 13 | 26.8 | 62.8 | 3,400 | 4,800 | 0.11 |
| 51109 | 45 | 65 | 14 | 27 | 66 | 3,200 | 4,500 | 0.14 |
| 51110 | 50 | 70 | 14 | 27.2 | 69.2 | 3,000 | 4,300 | 0.15 |
| 51111 | 55 | 78 | 16 | 33.8 | 89.2 | 2,800 | 4,000 | 0.22 |
| 51112 | 60 | 85 | 17 | 40.2 | 108 | 2,600 | 3,800 | 0.27 |
| 51113 | 65 | 90 | 18 | 40.5 | 112 | 2,400 | 3,600 | 0.31 |
| 51114 | 70 | 95 | 18 | 40.8 | 115 | 2,200 | 3,400 | 0.33 |
| 51115 | 75 | 100 | 19 | 48.2 | 140 | 2,000 | 3,200 | 0.38 |
| 51116 | 80 | 105 | 19 | 48.5 | 145 | 1,900 | 3,000 | 0.4 |
| model | d | D | T |
| mm | mm | mm | |
| 51200 | 10 | 26 | 11 |
| 51201 | 12 | 28 | 11 |
| 51202 | 15 | 32 | 12 |
| 51203 | 17 | 35 | 12 |
| 51204 | 20 | 40 | 14 |
| 51205 | 25 | 47 | 15 |
| 51206 | 30 | 52 | 16 |
| 51207 | 35 | 62 | 18 |
| 51208 | 40 | 68 | 19 |
| 51209 | 45 | 73 | 20 |
| 51210 | 50 | 78 | 22 |
| 51211 | 55 | 90 | 25 |
| 51212 | 60 | 95 | 26 |
| 51213 | 65 | 100 | 27 |
| 51214 | 70 | 105 | 27 |
| 51215 | 75 | 110 | 27 |
| 51216 | 80 | 115 | 28 |
| 51217 | 85 | 125 | 31 |
| 51218 | 90 | 135 | 35 |
| 51220 | 100 | 150 | 38 |
Our company service
♥1.Your inquiry will be reply within 2 hours.
♥2.Fast delivery,within 7 working days.
♥3.Packing: you will receive a Perfect product with strong outside packing.
♥4.With advanced first-level facilities and testing equipment,to insure no mistake on the dimension of the bearings.
♥5.No M.O.Q, Because we are manufacture.
♥6.24 hours on line,no limited to talk to us.
Are you interested in these products? If so,pls send inquiry to me. :)
