30203 tapered roller bearings
- qingdao
- T/T Credit Card
You May Like
-
High Performance roller bearing 30305 Tapered Roller Bearing With good quality
-
Ceramic roller skate bearings tapered roller bearings
-
Best bearing 30213 30221 30210 tapered roller bearings
-
China bearing 32909 double-row tapered roller bearing
-
Tapered Roller Bearings 30205 ET-30205 HR30205J 330205JR 7205E
-
High quality bearing 32236 tapered roller bearing china manufactures
Product Details
| Brand Name | YWS OEM | Bore Size | 15, 170 | |
| Outside Diameter | 42, 360 | Model Number | 30203 | |
| Precision Rating | p0 p6 p5 p4 | Seals Type | open zz 2rs, Open ZZ 2RS | |
| Number of Row | Other, Single Row, Single Row | Place of Origin | Shandong, China |
Product Description

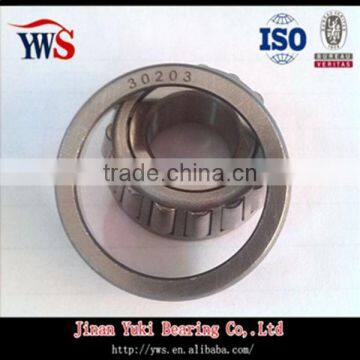

30203 tapered roller bearings
If you need wheel hub bearing,please Click the next picture:
If you need ball bearing,please Click the next picture:
If you need one way bearing,please Click the next picture:
taper roller bearing specification
Structure: | Taper | Type: | Roller | Brand Name: | yws or other brands |
Bore Size: | 21.430 - 280 mm | Outside Diameter: | 45.237 - 380 mm | Model Number: |
|
Precision Rating: | P0 P5 P6 | Seals Type: | open zz rs | Number of Row: | Single Row |
Place of Origin: | Shandong,China | Material:: | Chrome steel,carbon steeel .stainless steel POM plastic | Hardness::: | HRC60-HRC65 |
Cage::: | Brass,Steel,nylon | HS:: | 84822000 | Quality:: | Original,OEM brand,high quality. |
Rotational Speed:: | 1000-4000 | ServiceRange:: | OEM brand,Specially produce diversified brand for customer Require |
|
|
taper roller bearing feature
Tapered roller bearings have taper-formed raceways on inner and outer rings, and have taper formed rollers between raceways.
If the conical surface extension, it will eventually converge in the bearing axis on a bit.
- This kind of bearings are generally used to support combined load mainly consisting of radial load.Bearing’s axial bearing capacity by contact angle a that outer raceway point of view decision.
- The greater the angle,the axial bearing capacity is the bigger.
- Tapered roller bearings are separable bearings.
- Their rollers,cage and inner ring are called as cone and outer ring are named as cup.
- Cone and cup can be mounted respectively.
- The bearings are classified by elements as single row,double row and multiple row bearings.
| model | ID | OD | W | Cr | Cor | Grease lubrication speed | Oil lubrication speed | weight |
| (mm) | (mm) | (mm) | (kN) | (kN) | (r/min) | (r/min) | (kg) | |
| 30202 | 15 | 35 | 11 | 14.9 | 13.4 | 12000 | 16000 | 0.053 |
| 30244 | 220 | 400 | 73 | — | — | — | — | 35.5 |
| 30340 | 200 | 420 | 80 | 1120 | 1450 | 820 | 1100 | 53.5 |
| 30352 | 260 | 540 | 114 | — | — | — | — | 108 |
| 32205 | 25 | 72 | 24.25 | — | — | — | — | 0.174 |
| 30302 | 15 | 42 | 13 | 22.8 | 21.5 | 9000 | 12000 | 0.094 |
| 30203 | 17 | 40 | 12 | 20.8 | 21.8 | 9000 | 12000 | 0.079 |
| 30303 | 17 | 47 | 14 | 28.2 | 27.2 | 8500 | 11000 | 0.129 |
| 32303 | 17 | 47 | 19 | 31.9 | 29.9 | 9400 | 13000 | 0.17 |
| 32904 | 20 | 37 | 12 | 13.2 | 17.5 | 9500 | 13000 | 0.056 |
| 32004 | 20 | 42 | 15 | 25 | 28.2 | 8500 | 11000 | 0.095 |
| 30204 | 20 | 47 | 14 | 28.2 | 30.5 | 8000 | 10000 | 0.126 |
| 30304 | 20 | 52 | 15 | 30.5 | 28.4 | 8300 | 11000 | 0.17 |
| 32304 | 20 | 52 | 21 | 42.8 | 46.2 | 7500 | 9500 | 0.23 |
| 329/22 | 22 | 40 | 12 | 15 | 20 | 8500 | 11000 | 0.065 |
| 320/22 | 22 | 44 | 15 | 26 | 30.2 | 8000 | 10000 | 0.1 |
| 32905 | 25 | 42 | 12 | 16 | 21 | 6300 | 10000 | 0.064 |
| 32005 | 25 | 47 | 15 | 28 | 34 | 7500 | 9500 | 0.11 |
| 33005 | 25 | 47 | 17 | 32.5 | 42.5 | 7500 | 9500 | 0.129 |
| 30205 | 25 | 52 | 15 | 32.2 | 37 | 7000 | 9000 | 0.154 |
| 33205 | 25 | 52 | 22 | 47 | 55.8 | 7000 | 9000 | 0.216 |
| 30305 | 25 | 62 | 17 | 46.8 | 48 | 6300 | 8000 | 0.263 |
| 31305 | 25 | 62 | 17 | 40.5 | 46 | 6300 | 8000 | 0.262 |
| 32305 | 25 | 62 | 24 | 61.5 | 68.8 | 6300 | 8000 | 0.368 |
| 329/28 | 28 | 45 | 12 | 16.8 | 22.8 | 750D | 9500 | 0.069 |
| 320/28 | 28 | 52 | 16 | 31.5 | 40.5 | 6700 | 8500 | 0.142 |
| 332/28 | 28 | 58 | 24 | 58 | 68.2 | 6300 | 8000 | 0.286 |
| 32906 | 30 | 47 | 12 | 17 | 23.2 | 7000 | 9000 | 0.072 |
| 32006X2 | 30 | 55 | 16 | 27.8 | 35.5 | 6300 | 8000 | 0.16 |
| 32006 | 30 | 55 | 17 | 35.8 | 46.8 | 6300 | 8000 | 0.17 |
| 33006 | 30 | 55 | 20 | 43.8 | 58.8 | 6300 | 8000 | 0.201 |
| 30206 | 30 | 62 | 17.5 | 43.2 | 50.5 | 6000 | 7500 | 0.231 |
| 32206 | 30 | 62 | 20 | 51.8 | 63.8 | 6000 | 7500 | 0.287 |
| 33206 | 30 | 62 | 25 | 63.8 | 75.5 | 6000 | 7500 | 0.342 |
| 30306 | 30 | 72 | 21 | 59 | 63 | 5600 | 7000 | 0.387 |
| 23334 | 170 | 360 | 120 | — | — | — | — | — |
| 31306 | 30 | 72 | 21 | 52.5 | 60.5 | 5600 | 7000 | 0.392 |
| 32306 | 30 | 72 | 27 | 81.5 | 96.5 | 5600 | 7000 | 0.562 |
| 329/32 | 32 | 52 | 14 | 23.8 | 32.5 | 6300 | 8000 | 0.106 |
| 320/32 | 32 | 58 | 17 | 36.5 | 49.2 | 6000 | 7500 | 0.187 |
About us
Jinan Yuki Bearing Co., Ltd. is a Sino-Japanse joint ventured company, specializing in designing and manufacturing various types of bearings including deep groove ball bearings, spherical insert bearings, tapered roller bearings, angular contact ball bearings, thrust ball bearings, self-aligning ball bearings as well as plastic bearings, ceramic bearing and so on. We could also provide OEM service according to our customers' requirements.
Are you interested in these products? If so,pls send inquiry to me. :)
