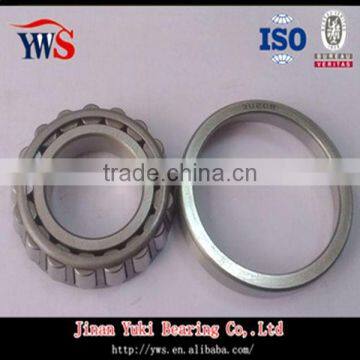

30228 Single Row tapered roller bearing
USD $0.2 - $5.2
/ Piece
1 Piece(Min.Order)
- 200000 Piece / Pieces per Month
- QINGDAO
- T/T Credit Card
You May Like
Product Details
| Brand Name | YWS /OEM | Bore Size | 19, 150 | |
| Outside Diameter | 10, 360 | Model Number | 30228 | |
| Precision Rating | ABEC1 ABEC3 ABEC5 ABEC7 | Seals Type | open 2RS ZZ RS | |
| Number of Row | Other, Single Row, single row | Place of Origin | Shandong, China |
Product Description
30228 Single Row tapered roller bearing
Product Description
Related Products
If you need wheel hub bearing,please Click the next picture:
If you need ball bearing,please Click the next picture:
If you need one way bearing,please Click the next picture:
Packaging & Shipping
taper roller bearing specification
Structure: | Taper | Type: | Roller | Brand Name: | yws or other brands |
Bore Size: | 21.430 - 280 mm | Outside Diameter: | 45.237 - 380 mm | Model Number: |
|
Precision Rating: | P0 P5 P6 | Seals Type: | open zz rs | Number of Row: | Single Row |
Place of Origin: | Shandong,China | Material:: | Chrome steel,carbon steeel .stainless steel POM plastic | Hardness::: | HRC60-HRC65 |
Cage::: | Brass,Steel,nylon | HS:: | 84822000 | Quality:: | Original,OEM brand,high quality. |
Rotational Speed:: | 1000-4000 | ServiceRange:: | OEM brand,Specially produce diversified brand for customer Require |
|
|
taper roller bearing feature
Tapered roller bearings have taper-formed raceways on inner and outer rings, and have taper formed rollers between raceways.
If the conical surface extension, it will eventually converge in the bearing axis on a bit.
- This kind of bearings are generally used to support combined load mainly consisting of radial load.Bearing’s axial bearing capacity by contact angle a that outer raceway point of view decision.
- The greater the angle,the axial bearing capacity is the bigger.
- Tapered roller bearings are separable bearings.
- Their rollers,cage and inner ring are called as cone and outer ring are named as cup.
- Cone and cup can be mounted respectively.
- The bearings are classified by elements as single row,double row and multiple row bearings.
Bearing Catalog
| model | ID | OD | W | Cr | Cor | Grease lubrication speed | Oil lubrication speed | weight |
| (mm) | (mm) | (mm) | (kN) | (kN) | (r/min) | (r/min) | (kg) | |
| 30202 | 15 | 35 | 11 | 14.9 | 13.4 | 12000 | 16000 | 0.053 |
| 30244 | 220 | 400 | 73 | — | — | — | — | 35.5 |
| 30340 | 200 | 420 | 80 | 1120 | 1450 | 820 | 1100 | 53.5 |
| 30352 | 260 | 540 | 114 | — | — | — | — | 108 |
| 32205 | 25 | 72 | 24.25 | — | — | — | — | 0.174 |
| 30302 | 15 | 42 | 13 | 22.8 | 21.5 | 9000 | 12000 | 0.094 |
| 30203 | 17 | 40 | 12 | 20.8 | 21.8 | 9000 | 12000 | 0.079 |
| 30303 | 17 | 47 | 14 | 28.2 | 27.2 | 8500 | 11000 | 0.129 |
| 32303 | 17 | 47 | 19 | 31.9 | 29.9 | 9400 | 13000 | 0.17 |
| 32904 | 20 | 37 | 12 | 13.2 | 17.5 | 9500 | 13000 | 0.056 |
| 32004 | 20 | 42 | 15 | 25 | 28.2 | 8500 | 11000 | 0.095 |
| 30204 | 20 | 47 | 14 | 28.2 | 30.5 | 8000 | 10000 | 0.126 |
| 30304 | 20 | 52 | 15 | 30.5 | 28.4 | 8300 | 11000 | 0.17 |
| 32304 | 20 | 52 | 21 | 42.8 | 46.2 | 7500 | 9500 | 0.23 |
| 329/22 | 22 | 40 | 12 | 15 | 20 | 8500 | 11000 | 0.065 |
| 320/22 | 22 | 44 | 15 | 26 | 30.2 | 8000 | 10000 | 0.1 |
| 32905 | 25 | 42 | 12 | 16 | 21 | 6300 | 10000 | 0.064 |
| 32005 | 25 | 47 | 15 | 28 | 34 | 7500 | 9500 | 0.11 |
| 33005 | 25 | 47 | 17 | 32.5 | 42.5 | 7500 | 9500 | 0.129 |
| 30205 | 25 | 52 | 15 | 32.2 | 37 | 7000 | 9000 | 0.154 |
| 33205 | 25 | 52 | 22 | 47 | 55.8 | 7000 | 9000 | 0.216 |
| 30305 | 25 | 62 | 17 | 46.8 | 48 | 6300 | 8000 | 0.263 |
| 31305 | 25 | 62 | 17 | 40.5 | 46 | 6300 | 8000 | 0.262 |
| 32305 | 25 | 62 | 24 | 61.5 | 68.8 | 6300 | 8000 | 0.368 |
| 329/28 | 28 | 45 | 12 | 16.8 | 22.8 | 750D | 9500 | 0.069 |
| 320/28 | 28 | 52 | 16 | 31.5 | 40.5 | 6700 | 8500 | 0.142 |
| 332/28 | 28 | 58 | 24 | 58 | 68.2 | 6300 | 8000 | 0.286 |
| 32906 | 30 | 47 | 12 | 17 | 23.2 | 7000 | 9000 | 0.072 |
| 32006X2 | 30 | 55 | 16 | 27.8 | 35.5 | 6300 | 8000 | 0.16 |
| 32006 | 30 | 55 | 17 | 35.8 | 46.8 | 6300 | 8000 | 0.17 |
| 33006 | 30 | 55 | 20 | 43.8 | 58.8 | 6300 | 8000 | 0.201 |
| 30206 | 30 | 62 | 17.5 | 43.2 | 50.5 | 6000 | 7500 | 0.231 |
| 32206 | 30 | 62 | 20 | 51.8 | 63.8 | 6000 | 7500 | 0.287 |
| 33206 | 30 | 62 | 25 | 63.8 | 75.5 | 6000 | 7500 | 0.342 |
| 30306 | 30 | 72 | 21 | 59 | 63 | 5600 | 7000 | 0.387 |
| 23334 | 170 | 360 | 120 | — | — | — | — | — |
| 31306 | 30 | 72 | 21 | 52.5 | 60.5 | 5600 | 7000 | 0.392 |
| 32306 | 30 | 72 | 27 | 81.5 | 96.5 | 5600 | 7000 | 0.562 |
| 329/32 | 32 | 52 | 14 | 23.8 | 32.5 | 6300 | 8000 | 0.106 |
| 320/32 | 32 | 58 | 17 | 36.5 | 49.2 | 6000 | 7500 | 0.187 |
Are you interested in these products? If so,pls send inquiry to me. :)
