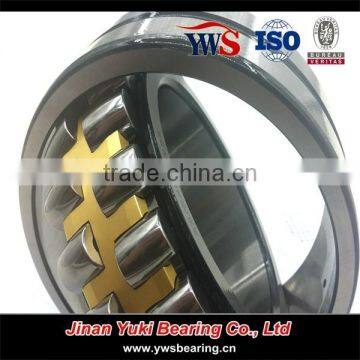

Cooper cage Spherical Roller Bearings 23168 bearings

FOB Price

USD $40 - $120 / Piece

1 Piece(Min.Order)

Supply Ability 30000 Piece / Pieces per Month
Port Qingdao
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	YWS OR OEM	Bore Size	25, 1180
Outside Diameter	52, 1540	Model Number	23168
Precision Rating	P0,P6 P5 P4	Seals Type	open
Number of Row	Double Row	Place of Origin	Shandong, China

Product Description

Cooper cage Spherical Roller Bearings 23168 bearings

Product Description

Related Products

If you need adapter sleeve,please Click the next picture:

if you need Steel (CC /W33) cage,please click the picture:

if you need brass (CA/W33) cage,please click the picture:

if you need MB cage,please click the picture:

if you need E cage,please click the picture:

Packaging & Shipping

Spherical Roller Bearings suffix

C(J) CC : Two window-type steel cages, flangeless inner ring and guide ring centred on the inner ring

EC(J) ECC(J) : Two window-type steel cages, flangeless inner ring, guide ring centred on the inner ring and reinforced roller complement

CA : One-piece machined brass cage, double-pronged, retaining flanges on the inner ring and guide ring centred on the inner ring

ECA ECAC : Reinforced roller complement, one-piece machined brass cage, double-pronged, retaining flanges on the inner ring, guide ring centred on the inner ring

E : For bearings with a bore diameter d ≤ 65 mm:
Two pressed window-type steel cages, flangeless inner ring and guide ring centred on the inner ring

W33 : stands for 3 oil holes on the outer ring groove.

1.Products/Model Series:

213 series / 222 series / 223 series / 230 series

231 series / 232 series / 240 series /241 series

Spherical Roller Bearing CC series

Spherical Roller Bearing CA series

Spherical Roller Bearing CAE series

Spherical Roller Bearing MB series

Spherical Roller Bearing E series

and

1, spherical roller bearings (20000 CC type)
2, tapered bore spherical roller bearings (20000 CCK type)
3, self-aligning roller bearings (20000 CC / W33 type)
4, tapered bore spherical roller bearings (20000 CCK / W33 type)
5, mounted on an adapter sleeve bore spherical roller bearings (20000 CCK + H0000 type)
6, mounted on an adapter sleeve bore spherical roller bearings (20000 CCK / W33 + H0000 type)

2.APPLICATION:

Papermaking machinery, reducer, railway vehicle axle, gear box bearing, rolling mill rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial reducer, Papermaking machinery, deceleration devices, railway vehicle axles, gear box bearing rolling mill, rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial gear, vertical seat belt aligning bearings

3.Products Description:

1.Brand Name: YWS & OEM

2.Spherical roller bearing types: CC,CA,MB,E,CAK,CAE,CCK series

3.YWS bearing: High precision, long life, low noise, high-end technology, low vibration and conform to the export standard

4.main market: United States,Europe,Asia,Middle East,South Africa etc

5.Application:

Spherical roller bearing is widely used in Steel industry, oil industry, cement industry, mining&construction, papermaking machinery, rolling mill, sugar mill, vibrating screens, conveyors, air blower, transmissions, and other heavy machinery.

me size:

Bearing No.	Adapter No.	Housing No.

23220 CCK/W33	H.2320	SNH.520-617
23030 CCK/W33	H.3030	SN.3030
23222 CCK/W33	H.2322	SNH522-619
23232 CCK/W33	H.2332	SNH.532
23228 CCK/W33	H.2328	SNH.528
23034 CCK/W33	H.3034	SN.3034
23040 CCK/W33	H.3040	SN.3040
22213 EK	H.313	SNH.513-611
22216 EK	H.316	SNH.516-613
23218 CCK/W33	H.2318	SNH.518-615
22217 EK	H.317	SNH.517
23224 CCK/W33	H.2324	SNH.524-620
22215 EK	H.315	SNH 515-612

MODEL	d(mm)	D(mm)	B(mm)	MODEL	d(mm)	D(mm)	B(mm)
22205/20E	20	52	18	22211E	55	100	25
22205E	25	52	18	22211EK	55	100	25
22205EK	25	52	18	21311E	55	120	29
21305CC	25	62	17	21311EK	55	120	29
22206E	30	62	20	22311E	55	120	43
22206EK	30	62	20	22311EK	55	120	43
21306CC	30	72	19	22212E	60	110	28
21306CCK	30	72	19	22212EK	60	110	28
22207E	35	72	23	21312E	60	130	31
22207EK	35	72	23	21312EK	60	130	31
21307CC	35	80	21	22312E	60	130	46
21307CCK	35	80	21	22312EK	60	130	46
22208E	40	80	23	24013CC/W33	65	100	35
22208EK	40	80	23	24013cck30/w33	65	100	35
21308E	40	90	23	22213e	65	120	31
21308EK	40	90	23	22213ek	65	120	31
22308E	40	90	33	21313E	65	140	33

MODEL	d(mm)	D(mm)	B(mm)	MODEL	d(mm)	D(mm)	B(mm)
23022CC/W33	110	170	45	23028	140	210	53
23022CCK/W33	110	170	45	24028	140	210	69
24022CC/W33	110	170	60	23128	140	225	68
24022CCK/W33	110	170	60	24128	140	225	85
23122CC/W33	110	180	56	22228	140	250	68
23122CCK/W33	110	180	56	23228	140	250	88
24122CC/W33	110	180	69	22328	140	300	102
24122CC/K/W33	110	180	69	23030	150	225	56
22222E	110	200	53	24030	150	225	80
22222EK	110	200	53	23130	150	250	80
23222CC/W33	110	200	69.8	24130	150	250	100
23222CCK/W33	110	200	69.8	22230	150	270	73
22322e	110	240	80	23230	150	270	96
22322ek	110	240	80	22330	150	320	108
23024CC/W33	120	180	46	23032	160	240	60
23024CCK/W33	120	180	46	24032	160	240	80
24024CC/W33	120	180	60	23132	160	270	86
24024CCK/W33	120	180	60	24132	160	270	109
23124CC/W33	120	200	62	22232	160	290	80
23124CCK/W33	120	200	62	23232	160	290	104
24124CC/W33	120	200	80	22332	160	340	114
24124CCK/W33	120	200	80	23034	170	260	67
22224E	120	215	58	24034	170	260	90
22224EK	120	215	58	23134	170	280	88
23224CC/W33	120	215	76	24134	170	280	109
232244CCK/W33	120	215	76	22234	170	310	86

MODEL	d(mm)	D(mm)	B(mm)	MODEL	d(mm)	D(mm)	B(mm)
23952	260	360	75	23968	340	460	90
23052	260	400	104	23068	340	520	133
24052	260	400	140	24068	340	520	180
23152	260	440	144	23168	340	580	190
24152	260	440	180	24168	340	580	243
22252	260	480	130	23268	340	620	224
23252	260	480	174	23972	360	480	90
22352	260	540	165	23072	360	540	134
23956	280	380	75	24072	360	540	180
23056	280	420	106	23172	360	600	192
24056	280	420	140	24172	360	600	243
23156	280	460	146	22272	360	650	170
24156	280	460	180	23272	360	650	232
22256	280	500	130	23976	380	520	106
23256	280	500	176	23076	380	560	135
22356	280	580	175	24076	380	560	180
23860	300	380	60	23176	380	620	194
23960	300	420	90	34176E	380	620	243
23060	300	460	118	23276CA	380	680	240
24060	300	460	160	23980	400	540	106
23160	300	500	160	23080	400	600	148
24160	300	500	200	24080	400	600	200
22260	300	540	140	23180	400	650	200
23260	300	540	192	24180	400	650	250
23964	320	440	90	23280	400	720	256
