Home > Products > Self aligning roller bearings > spherical roller bearings 22318

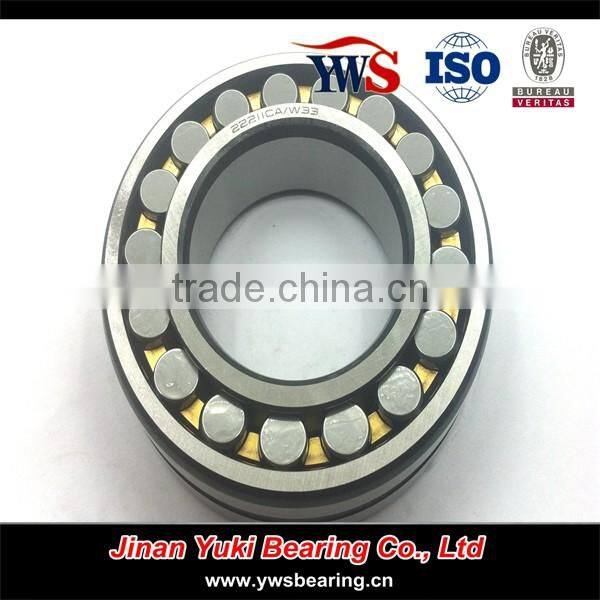

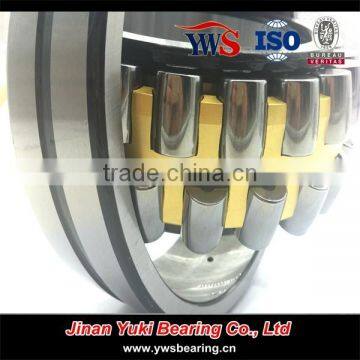

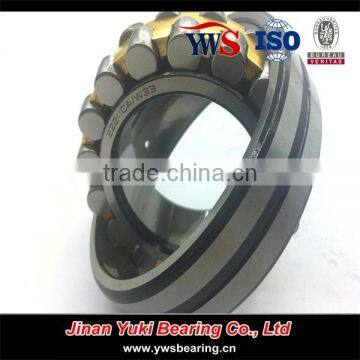

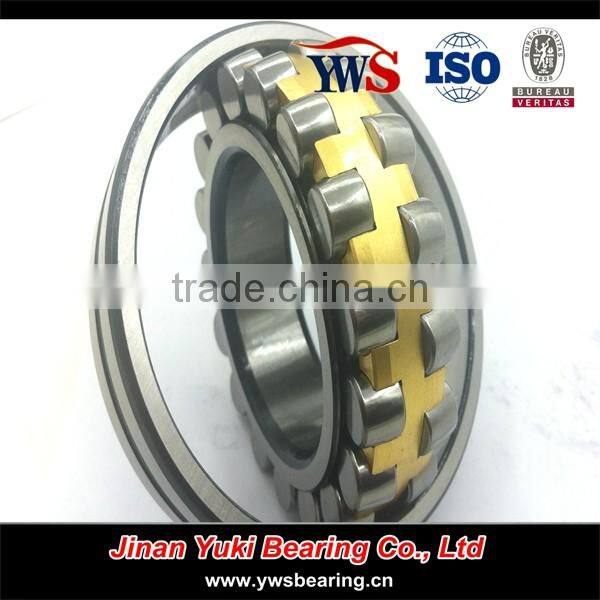

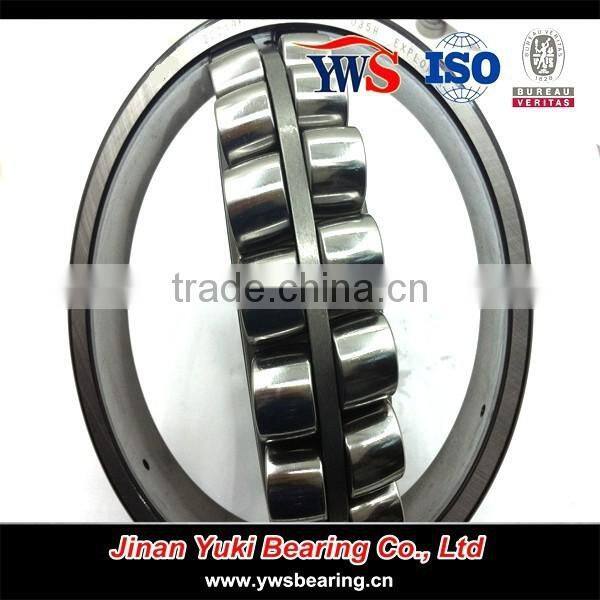

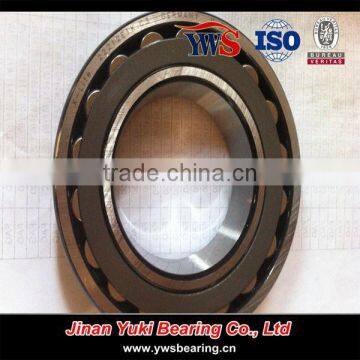

spherical roller bearings 22318
- 30000 Piece / Pieces per Month
- Qingdao
- T/T Credit Card PayPal
You May Like
Product Details
| Brand Name | YWS OR OEM | Bore Size | 25, 1180 | |
| Outside Diameter | 52, 1540 | Model Number | 22318 | |
| Precision Rating | P0,P6 P5 P4 | Seals Type | open | |
| Number of Row | Double Row | Place of Origin | Shandong, China |
Product Description
spherical roller bearings 22318
If you need adapter sleeve,please Click the next picture:
if you need Steel (CC /W33) cage,please click the picture:
if you need brass (CA/W33) cage,please click the picture:
if you need MB cage,please click the picture:
if you need E cage,please click the picture:
Spherical Roller Bearings suffix
C(J) CC : Two window-type steel cages, flangeless inner ring and guide ring centred on the inner ring
EC(J) ECC(J) : Two window-type steel cages, flangeless inner ring, guide ring centred on the inner ring and reinforced roller complement
CA : One-piece machined brass cage, double-pronged, retaining flanges on the inner ring and guide ring centred on the inner ring
ECA ECAC : Reinforced roller complement, one-piece machined brass cage, double-pronged, retaining flanges on the inner ring, guide ring centred on the inner ring
E : For bearings with a bore diameter d ≤ 65 mm:
Two pressed window-type steel cages, flangeless inner ring and guide ring centred on the inner ring
W33 : stands for 3 oil holes on the outer ring groove.
1.Products/Model Series:
213 series / 222 series / 223 series / 230 series
231 series / 232 series / 240 series /241 series
Spherical Roller Bearing CC series
Spherical Roller Bearing CA series
Spherical Roller Bearing CAE series
Spherical Roller Bearing MB series
Spherical Roller Bearing E series
and
1, spherical roller bearings (20000 CC type)
2, tapered bore spherical roller bearings (20000 CCK type)
3, self-aligning roller bearings (20000 CC / W33 type)
4, tapered bore spherical roller bearings (20000 CCK / W33 type)
5, mounted on an adapter sleeve bore spherical roller bearings (20000 CCK + H0000 type)
6, mounted on an adapter sleeve bore spherical roller bearings (20000 CCK / W33 + H0000 type)
2.APPLICATION:
Papermaking machinery, reducer, railway vehicle axle, gear box bearing, rolling mill rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial reducer, Papermaking machinery, deceleration devices, railway vehicle axles, gear box bearing rolling mill, rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial gear, vertical seat belt aligning bearings
3.Products Description:
1.Brand Name: YWS & OEM
2.Spherical roller bearing types: CC,CA,MB,E,CAK,CAE,CCK series
3.YWS bearing: High precision, long life, low noise, high-end technology, low vibration and conform to the export standard
4.main market: United States,Europe,Asia,Middle East,South Africa etc
5.Application:
Spherical roller bearing is widely used in Steel industry, oil industry, cement industry, mining&construction, papermaking machinery, rolling mill, sugar mill, vibrating screens, conveyors, air blower, transmissions, and other heavy machinery.
me size:
| Bearing No. | Adapter No. | Housing No. |
| 23220 CCK/W33 | H.2320 | SNH.520-617 |
| 23030 CCK/W33 | H.3030 | SN.3030 |
| 23222 CCK/W33 | H.2322 | SNH522-619 |
| 23232 CCK/W33 | H.2332 | SNH.532 |
| 23228 CCK/W33 | H.2328 | SNH.528 |
| 23034 CCK/W33 | H.3034 | SN.3034 |
| 23040 CCK/W33 | H.3040 | SN.3040 |
| 22213 EK | H.313 | SNH.513-611 |
| 22216 EK | H.316 | SNH.516-613 |
| 23218 CCK/W33 | H.2318 | SNH.518-615 |
| 22217 EK | H.317 | SNH.517 |
| 23224 CCK/W33 | H.2324 | SNH.524-620 |
| 22215 EK | H.315 | SNH 515-612 |
| MODEL | d(mm) | D(mm) | B(mm) | MODEL | d(mm) | D(mm) | B(mm) |
| 22205/20E | 20 | 52 | 18 | 22211E | 55 | 100 | 25 |
| 22205E | 25 | 52 | 18 | 22211EK | 55 | 100 | 25 |
| 22205EK | 25 | 52 | 18 | 21311E | 55 | 120 | 29 |
| 21305CC | 25 | 62 | 17 | 21311EK | 55 | 120 | 29 |
| 22206E | 30 | 62 | 20 | 22311E | 55 | 120 | 43 |
| 22206EK | 30 | 62 | 20 | 22311EK | 55 | 120 | 43 |
| 21306CC | 30 | 72 | 19 | 22212E | 60 | 110 | 28 |
| 21306CCK | 30 | 72 | 19 | 22212EK | 60 | 110 | 28 |
| 22207E | 35 | 72 | 23 | 21312E | 60 | 130 | 31 |
| 22207EK | 35 | 72 | 23 | 21312EK | 60 | 130 | 31 |
| 21307CC | 35 | 80 | 21 | 22312E | 60 | 130 | 46 |
| 21307CCK | 35 | 80 | 21 | 22312EK | 60 | 130 | 46 |
| 22208E | 40 | 80 | 23 | 24013CC/W33 | 65 | 100 | 35 |
| 22208EK | 40 | 80 | 23 | 24013cck30/w33 | 65 | 100 | 35 |
| 21308E | 40 | 90 | 23 | 22213e | 65 | 120 | 31 |
| 21308EK | 40 | 90 | 23 | 22213ek | 65 | 120 | 31 |
| 22308E | 40 | 90 | 33 | 21313E | 65 | 140 | 33 |
| MODEL | d(mm) | D(mm) | B(mm) | MODEL | d(mm) | D(mm) | B(mm) |
| 23022CC/W33 | 110 | 170 | 45 | 23028 | 140 | 210 | 53 |
| 23022CCK/W33 | 110 | 170 | 45 | 24028 | 140 | 210 | 69 |
| 24022CC/W33 | 110 | 170 | 60 | 23128 | 140 | 225 | 68 |
| 24022CCK/W33 | 110 | 170 | 60 | 24128 | 140 | 225 | 85 |
| 23122CC/W33 | 110 | 180 | 56 | 22228 | 140 | 250 | 68 |
| 23122CCK/W33 | 110 | 180 | 56 | 23228 | 140 | 250 | 88 |
| 24122CC/W33 | 110 | 180 | 69 | 22328 | 140 | 300 | 102 |
| 24122CC/K/W33 | 110 | 180 | 69 | 23030 | 150 | 225 | 56 |
| 22222E | 110 | 200 | 53 | 24030 | 150 | 225 | 80 |
| 22222EK | 110 | 200 | 53 | 23130 | 150 | 250 | 80 |
| 23222CC/W33 | 110 | 200 | 69.8 | 24130 | 150 | 250 | 100 |
| 23222CCK/W33 | 110 | 200 | 69.8 | 22230 | 150 | 270 | 73 |
| 22322e | 110 | 240 | 80 | 23230 | 150 | 270 | 96 |
| 22322ek | 110 | 240 | 80 | 22330 | 150 | 320 | 108 |
| 23024CC/W33 | 120 | 180 | 46 | 23032 | 160 | 240 | 60 |
| 23024CCK/W33 | 120 | 180 | 46 | 24032 | 160 | 240 | 80 |
| 24024CC/W33 | 120 | 180 | 60 | 23132 | 160 | 270 | 86 |
| 24024CCK/W33 | 120 | 180 | 60 | 24132 | 160 | 270 | 109 |
| 23124CC/W33 | 120 | 200 | 62 | 22232 | 160 | 290 | 80 |
| 23124CCK/W33 | 120 | 200 | 62 | 23232 | 160 | 290 | 104 |
| 24124CC/W33 | 120 | 200 | 80 | 22332 | 160 | 340 | 114 |
| 24124CCK/W33 | 120 | 200 | 80 | 23034 | 170 | 260 | 67 |
| 22224E | 120 | 215 | 58 | 24034 | 170 | 260 | 90 |
| 22224EK | 120 | 215 | 58 | 23134 | 170 | 280 | 88 |
| 23224CC/W33 | 120 | 215 | 76 | 24134 | 170 | 280 | 109 |
| 232244CCK/W33 | 120 | 215 | 76 | 22234 | 170 | 310 | 86 |
| MODEL | d(mm) | D(mm) | B(mm) | MODEL | d(mm) | D(mm) | B(mm) |
| 23952 | 260 | 360 | 75 | 23968 | 340 | 460 | 90 |
| 23052 | 260 | 400 | 104 | 23068 | 340 | 520 | 133 |
| 24052 | 260 | 400 | 140 | 24068 | 340 | 520 | 180 |
| 23152 | 260 | 440 | 144 | 23168 | 340 | 580 | 190 |
| 24152 | 260 | 440 | 180 | 24168 | 340 | 580 | 243 |
| 22252 | 260 | 480 | 130 | 23268 | 340 | 620 | 224 |
| 23252 | 260 | 480 | 174 | 23972 | 360 | 480 | 90 |
| 22352 | 260 | 540 | 165 | 23072 | 360 | 540 | 134 |
| 23956 | 280 | 380 | 75 | 24072 | 360 | 540 | 180 |
| 23056 | 280 | 420 | 106 | 23172 | 360 | 600 | 192 |
| 24056 | 280 | 420 | 140 | 24172 | 360 | 600 | 243 |
| 23156 | 280 | 460 | 146 | 22272 | 360 | 650 | 170 |
| 24156 | 280 | 460 | 180 | 23272 | 360 | 650 | 232 |
| 22256 | 280 | 500 | 130 | 23976 | 380 | 520 | 106 |
| 23256 | 280 | 500 | 176 | 23076 | 380 | 560 | 135 |
| 22356 | 280 | 580 | 175 | 24076 | 380 | 560 | 180 |
| 23860 | 300 | 380 | 60 | 23176 | 380 | 620 | 194 |
| 23960 | 300 | 420 | 90 | 34176E | 380 | 620 | 243 |
| 23060 | 300 | 460 | 118 | 23276CA | 380 | 680 | 240 |
| 24060 | 300 | 460 | 160 | 23980 | 400 | 540 | 106 |
| 23160 | 300 | 500 | 160 | 23080 | 400 | 600 | 148 |
| 24160 | 300 | 500 | 200 | 24080 | 400 | 600 | 200 |
| 22260 | 300 | 540 | 140 | 23180 | 400 | 650 | 200 |
| 23260 | 300 | 540 | 192 | 24180 | 400 | 650 | 250 |
| 23964 | 320 | 440 | 90 | 23280 | 400 | 720 | 256 |
