Home > Products > PTO Gearbox > Gearbox 70007 to Fiat Tractor Spare Parts
Gearbox 70007 to Fiat Tractor Spare Parts
- NINGBO / SHANGHAI
- T/T
You May Like
-
Speed Multiplier 60000 Serie 60001 Type for Group 2 Gear Pump
-
Multiplicateurs 60000 Serie 60002 Type for Group 2 Gear Pump
-
60000 Serie 60003 Type Gearbox
-
PTO Variable Speed Increaser Gearbox 60001 for Gear Pumps
-
70000 Serie 70001 Type Agricultural Pto Gearbox
-
Agricultural Speed up Gearbox Serie 70000 Type 70001 for Group 3 Hydraulic Gear Pump

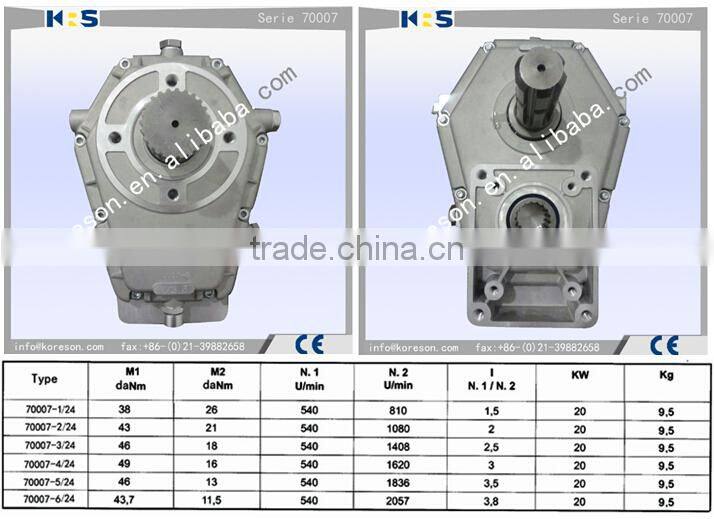

Product Details
| Place of Origin | Zhejiang, China | Brand Name | KRS | |
| Model Number | 70007-4/24 | Gearing Arrangement | Spur | |
| Output Torque | 16NM | Rated Power | 20KW | |
| Input Speed | 540RPM | Output Speed | 1620RPM |
Product Description
gearbox 70007 to fiat tractor spare parts

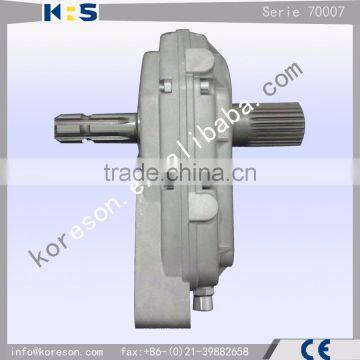

PTO Gearbox: 70007-4/24
The PTO Gearboxes are designed for connecting gear pumps to farm tractor power take offs (PTO). Output speed of power take offs is 540rpm which can be compared with the proper running speeds of hydraulic pumps. Different input running speeds can also be suitable,provided that the PTO gearbox output speed does not exceed 3000 rpm.
Housing
Made in shell-cast aluminum or in high mechanical resistance cast iron.
Gears
Made in Steel UNI 18 PCR M03.Stub teeth guarantee very high resistance and run very quietly.
Shafts
Made in steel UNI 16 CRN4.They are coupled with splined gears and are designed to stand the torque values stated in the catalogue.
Torques
The torque figures mentioned in the technical charts of all the PTO Gearboxes refer to continuous duty cycles. Torques under intermittent working conditions can be exceeded by 20%.
Lubrication
SAE 90 gear oil must be put in the pto gearbox prior to use-please note we do not supply the gear oil and will not accept responsibility for customers not putting oil in. Change the oil after the first 60-80 hours and then every 12 months or 1500 hours which ever falls first.
Maintenance
Please check the oil level via the special oil window every 50 hours. Working temperatures should not exceed 120 degrees celcius under continuos duty cycle.
Plastic bag packing for one piece,
One piece in one exporting carton;
100 cartons put on a pallet;
Service A: OEM and customized products are acceptable
Our company can do OEM and customized products according to the requirements of customer.
Service B: Develop new products is welcome
We have technicians and research department to make new products, if customers need us to develop new products according to sample or drawing, it is welcome.
Service C: Sourcing related producs
Our company have much experience in hydraulic and transmissions parts field, if you need other products, we can find for you.
Other requirement from customers can be discussed.
Shanghai Koreson machinery(KRS) dedicated resources and power to the development, production and sales of hydraulic and transmission parts,starts produce speed increaser PTO gearboxes since 2013,mainly export to European market,such as France,Germany,Turkey,UK..,moren than 15 countries.
With our resources in hydraulic and farm machinery field,we also distributes gear pump,tractor machinery,dump truck pumps... from selected premium supplier in China,combined orders with gearboxes will enjoy special discount after discussion.
Welcome to inquiry,you will get response within 12 hours.
1.Q: Is your company a trading company or a manufacturer?
A: Our company is a trading company also a manufacturer, we have our own factory to produce gearbox, pump support..etc
Also we distribute gear pumps, tractor machinery,dump truck pump from selected premium suppliers to meet customers’ variable demand.
2.Q:What about the quality control and warranty ?
A: “Quality first, Customers foremost”.Every piece of products is cheeked and tested strictly one by one before packing and shipping.
Our products have one year warranty, technical support is endless from us.
3.Q:Can you provide samples for checking and testing?
A:yes,we provide free samples for checking the build quality and real performance of our products,the freight need to be coverd by customer.
4.Q:How can I get to your company?
A: Our company address is No.888 Huaxu Road,Qingpu district,Shanghai,China
It is about 30 minutes by car from Shanghai Hongqiao airport or Shanghai Hongqiao Railway station.

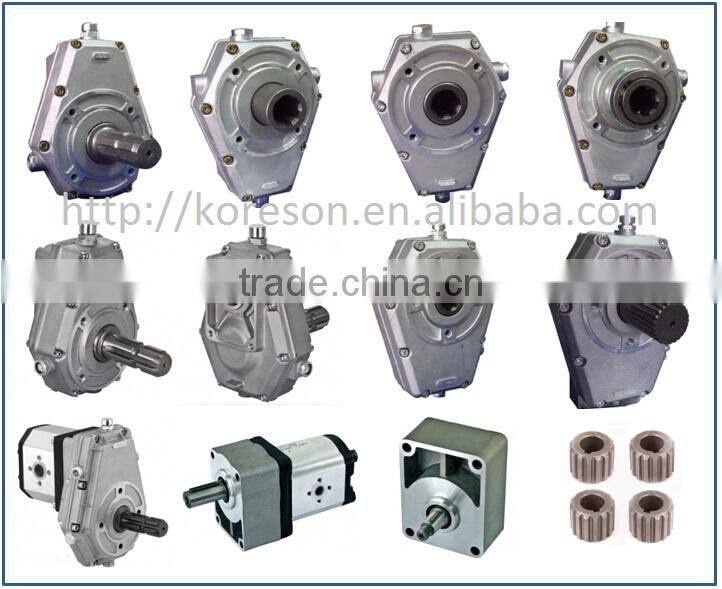

Click the below photos to see more products:
