Product Details
| Place of Origin | Hebei, China | Material | Galvanized Steel Wire | |
| Type | Weave Wire Mesh | Application | Filters | |
| Weave Style | Plain Weave | Wire Diameter | 0.4mm-2.5mm | |
| Technique | Woven | Model Number | JQSX1214 | |
| Brand Name | JUNQIAO |
Product Description
Material: low carbon steel , stainless steel wire
Surface treatment: galvanized (electro galvanized after weaving; hot dip galvanized after weaving)

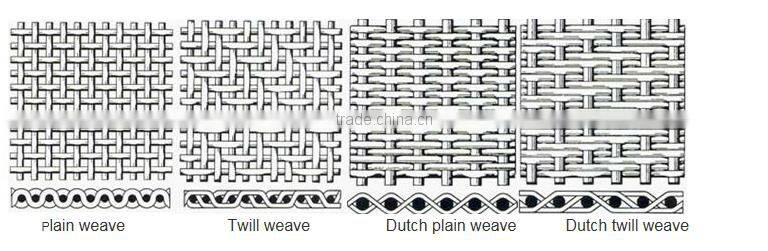

Weaving:Plain,Twill,Dutch
Plain weave Twill weave Dutch plain weave Dutch twill weave
Assortments available:
<1>Crimped square wire mesh
<2>Standard square wire mesh
<3>Hot-dipped galvanized after woven square wire mesh
<4>Galvanized after woven square wire mesh
<5>Galvanized before woven square wire mesh
<6> Iron Square Wire Mesh
length: 25m, 30m, 50m
Width : 3’ ,1m, 4’
Mesh: 4 – 30 mesh(10 ,18,20)
wire diameter: 0.4-2.5mm(can be calculated from weight and mesh)
Packing: In rolls , waterproof paper inside and plastic woven bags outside. Special packing may be arranged if necessary.
Usage:Used in industry and construction to sieve grain powder, filter liquid and gas, safety guards on machinery enclosures and so on.
specification list:
Specification of Galvanized square Wire Mesh | |||||
mesh | wire diameter (mm) | opening (mm) | mesh | wire diameter (mm) | opening |
3x3 | 1.60 | 6.87 | 20x20 | 0.27 | 1.00 |
4x4 | 1.20 | 5.15 | 22x22 | 0.25 | 0.90 |
5x5 | 0.95 | 4.13 | 24x24 | 0.23 | 0.83 |
6x6 | 0.80 | 3.43 | 26x26 | 0.20 | 0.78 |
8x8 | 0.60 | 2.57 | 28x28 | 0.18 | 0.73 |
10x10 | 0.50 | 2.04 | 30x30 | 0.15 | 0.70 |
12x12 | 0.50 | 1.61 | 35x35 | 0.14 | 0.59 |
14x14 | 0.40 | 1.41 | 40x40 | 0.14 | 0.50 |
16x16 | 0.35 | 1.24 | 50x50 | 0.12 | 0.39 |
18x18 | 0.30 | 1.11 | 60x60 | 0.12 | 0.30 |
