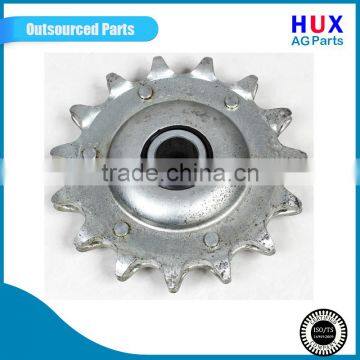

AG2437 Hardended Single Pitch 15 Teeth Sprocket Idler
USD $3.9 - $4
/ Piece
500 Pieces(Min.Order)
- 50000 Piece / Pieces per Month
- Ningbo
- T/T
You May Like
-
Lower Idler Strap H144503
-
Steel Deck Plate H94952, John Deere Corn Head Parts
-
40 Series Corn Head Snout Center Point H135290, H84480
-
Corn Head Snout Steel Center Point 176227C1, 199375C1
-
Corn Head Gathering Chain AN102009, 176279C91, with hardened pins
-
AN102448 Idler Sprocket Chain Sprocket for Corn Head
Product Details
| Type | Other, Sprocket Idler | Use | Harvesters | |
| Place of Origin | Zhejiang, China | Brand Name | HUX | |
| Model Number | HX2437 |
Product Description
Product name: Hardened 15 Teeth Single Pitch Sprocket Idlers.
Specification:
Chain Number: 60
Pitch: 3/4 in
Roller Diameter: 15/32 in
Number of Teeth: 15
Bore Size (Dim. A): 0.643 in, 0.649in
Dimension B: 7/8 in
Outside Diameter (Dim. C): 3-29/32 in
Tooth Width (Dim. D): 7/16 in
Dimension E: 27/32 in
Hub Width (Dim. F): 0.927 in
Weight: 1.08 lbs
Advantages:
- Case hardened teeth prolong chain and idler life.
- Over-size, factory packed lubricant chamber assures maximum life and operating efficiency without troublesome relubrication.
- Bearings races are case hardened to resist wear, outers are coined and inners are burnished for smooth running.
- Full ball complement.
- Free running, self wiping seal provides positive contact under all conditions of misalignment.
- Accurately contoured heavy gauge form available in a range of sprocket sizes.
