Agricultural PTO Shaft for farm machines
- Ningbo or Shanghai
- T/T
You May Like
Product Details
| Structure | Spline | Material | Other | |
| Model Number | 5-45QDQD | Place of Origin | Zhejiang, China | |
| Brand Name | Changheng |
Product Description
Specifications

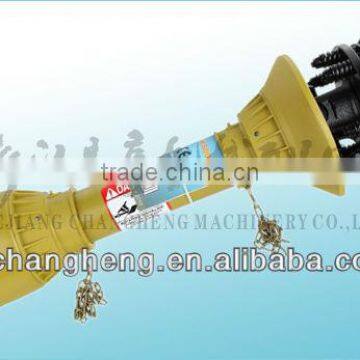

Picture shows PTO shaft , series 5, Overall length 40", quick release yokes both ends,Our factory is specialized in producing PTO SHAFT for farm machines. We supplied spare parts to Euro Cardan in Italy and for other countries and zones all over the world.
Agricultural PTO shaft Features:
1. We provide pto shaft series 1#, 2#, 3#, 4#, 5#, 6#, 7#, 7N#, 8#.
2.Cross journal specifications: series1#: 22 * 54mm series 2#: 23.8 * 61.3mm series 3#: 27 * 70mm series 4#: 27 *74.6mm series 5#: 30.2 * 80mm series 6#: 30.2 * 92mm series 7#: 30.25*106.35mm series 7N: 35*94mm series 8: 35 * 106.5mm
3.Types of tube: triangle profile tube, lemon profile tube.
4. Minimum overall length: 600-1800mm or 27"-60"
5.End yokes & safety devices: quick release yokes, plain bore yokes, friction
type torque limiters, ratchet type torque limiter,etc.
6.Plastic safety guard: black or yellow.
We also provide splined shaft.If you have any interest, please don't hesitate to let us know. You could visit our website for more detailed information.
