High precision Forged steel drive shaft Spicer yoke 2-28-1697 drive shaft 1330 SPL25 tube weld yoke used for Mercedes Benz

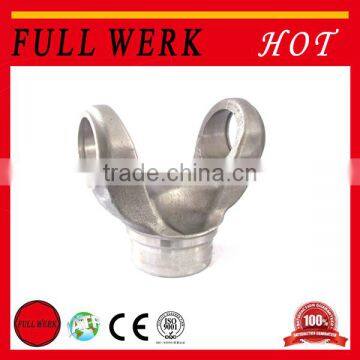

Weld Yoke

Weld yoke  Specification

Forged steel drive shaft Spicer yoke 26-118 on sale driveshaft cardan part 1410 1510 tube weld yoke, Auto parts

 1.Weld yoke Warranty: It depends

 2.Customizations: yoke Colors,yoke size,yoke drawings or sample

 3.Series No: 1410 1480 1510

 4.Application:    Mercedes Benz 1113 a 2213


Weld Yoke  Advantages

 1. High intensity and rigidity, corrosion and aging resistance, stable function, safety and long durability

 2. Advanced equipments, professional &experienced designers

 3. Fine quality with competitive price and timely delivery

 4. Suit for various kinds of vehicles shaft use

 5. Perfect after - sale service system

Weld Yoke  Material

 1.China:45# steel

 2. US:AISI/SAE 1045

 3.Germany,France/Italy:C45

Weld Yoke
ZDC No.	A	B	C	D	Spicer No.:	Similar	U-joint	Vehicle	Seires
862-01	67	98	Φ38	Φ64.10	26-118	GR1337	5-12213X          62*38	Mercedes Benz 1113 a 2213	1410    1480   1510
862-02	44.5	88	Φ27	Φ72.3	2-28-1697	GR1031	5-273X           94.9*27	GM D-10/ D-20, Ford F-1000 / F-4000	1330     SPL25
862-03	53	113	Φ34.90	Φ84.9	3-28-537	GR1033	5-263X             SPL55-1X              109.05*34.9	Ford Cargo 1415, Ford F7000 a F14000, VW 9.140	1410   1480   SPL55
862-05	56.4	134	Φ34.90	Φ84.30	4-28-307	GR1035	5-275X          5-155X           129*34.9	Ford Cargo 2218 /F 14000/VW 12-140T / 12-170BT                12-190E	1410   1550    SPL70
862-06	77.9	134.9	Φ47.65	Φ95	5-28-327	GR1036	5-438X           134.85*47.65	Mercedes Benz 1618,Equivalentes VW 14.200 a 26.300,Ford 2425	1610
862-07	76	159	Φ44	Φ81.4	26-135	GR1430	5-12276X               152.45*44	Scania 111,Agco Maxion (Modelo 285)	T60
862-08	86	171.6	Φ49.98	Φ85.5	26-163	GR1431	5-12278X              167.95*49.98	Scania 112/113,T70          Agco Maxion	1780   T70

Production Process

Brief  Introduction

Our  Photos

Our certificates:

Contact information:

A: Our main products are cardan shaft,universal coupling,universal joints and center support bearing.

Q2. What is the MOQ?

A: Usually our MOQ is 100pcs.

Q3. What is the delivery date?

A: It takes 5~7 days if there is stock, but takes 30 days if there is no stock.

Q4. What is the packet?

A: Neutral packing or customer made packing.

Q5. What is the payment method?

A: Our payment method:T/T, WEST UNION, PAYPAL.

Q6.How is the quality?

A: Strict control before shipment.

Q7.What are our major market?

A: Our main markets are middle east, Africa, southeast Asia and south America,European..
