Home > Products > Agriculture PTO Drive Shaft > High Quality PTO Drive Shaft Complete Drivelines With Overrun Clutch on Sale (Speedway)
High Quality PTO Drive Shaft Complete Drivelines With Overrun Clutch on Sale (Speedway)
- Shanghai Ningbo port
- T/T Credit Card
You May Like
-
High Quality PTO Drive Shaft Complete Drivelines With Shear Pin Clutch on Sale (Speedway)
-
High Quality PTO Drive Shaft General Purpose Drivelines on Sale (Speedway)
-
High Quality Cardan Shaft Tractor
-
Most Popular Products Agriculture PTO Drive Shaft Splined Yoke With Double Push Pin, Drive Shaft Parts
-
High Quality Agriculture PTO Drive Shaft Friction Torque Limiters Clutche
-
Hot Selling Tractor Spare Parts With CE Certification
Product Details
| Type | Shafts | Use | Tractors | |
| Place of Origin | Zhejiang, China | Brand Name | FULL WERK | |
| Model Number | Series 5, 6 |
Product Description
Specifications

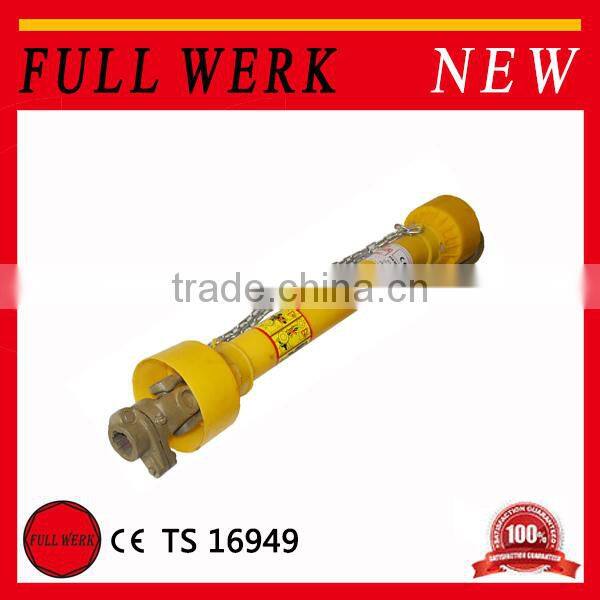

PTO Drive Shaft Complete Drivelines with Overrun Clutch

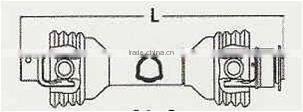

| Series | Length (L) | Tractor | Implement | Part# | Typical Use | |
| 5 | 44" | 1 3/8" 6 spline | 1 3/8" 6 sp OR CL | CS53517 | Disc Mower w/Overrun Clutch | |
| 6 | 39" | 1 3/8" 6 spline | 1 3/8" 6 sp OR CL | CS62917 | Disc Mower w/Overrun Clutch |
Features:
1.Model Number/Cross Series: | T01,T02,T03,T04,T05,T06,T07,T08 and some special cross Journal |
2. Dimension/Size: | Minimum overall length: 600-1800mm or 27"-60" |
3. Working Condition: | For Tractors, Trucks and Agricultural Use |
4. Shield Colour: | Yellow or black |
5. Material: | Steel and Plastic |
6. Tube: | Triangular, Lemon, Star and Splined |
7. Apply | Tractor, Rotary Cultivator, Planter Machine ,Farm and etc. |
8. Certificate | CE Certificate |
PTO shaft structure:
Technical data:
Item | Cross journal size | 540dak-rpm | 1000dak-rpm | |||
Series 1 | 22mm | 54mm | 12KW | 16HP | 18KW | 25HP |
Series 2 | 23.8mm | 61.3mm | 15KW | 21HP | 23KW | 31HP |
Series 3 | 27mm | 70mm | 26KW | 35HP | 40KW | 55HP |
Series 4 | 27mm | 74.6mm | 26KW | 35HP | 40KW | 55HP |
Series 5 | 30.2mm | 80mm | 35KW | 47HP | 54KW | 74HP |
Series 6 | 30.2mm | 92mm | 47KW | 64HP | 74KW | 100HP |
Series 7 | 30.2mm | 106.5mm | 55KW | 75HP | 87KW | 18HP |
Series 8 | 35mm | 106.5mm | 70KW | 95HP | 110KW | 150HP |
Series38 | 38mm | 102mm | 70KW | 95HP | 110KW | 150HP |
Product advantages:
1.All parts are forged.
2. Use vertical broacher machine,this will produce good centric degree.
3. Plastic cover can work normally between -35 °C to 80 °C .
4. All torque limiter are torque set ready before transportation.
Production process:
Why Speedway?
1. Customized and designed according to the customers' sample, drawing or requirements.
2. Following the customers' requirements or as our usual packing.
3. Customer-First, Price-Competitive, Quality- High, Services- Professional.
4. Flexible minimum order quantity.
For more information about us, contact us right away.
Q1: Can I buy one of your products for Sample?
A: Yes, we can provide you sample, and will send you by DHL or according to your requirements, or find the cheapest forwards for you.
Q2: How could I know if the product suitable for my machine or not?
A: Pls tell us which product you are interested in, We will give you the main sizes, or you can provide your drawings or samples, we will make according to your drawings.
Q3: I want to find a supplier for my new products, can you help me ?
A: Yes, kindly offer us your drawings or samples. We will quote you the cost.
Q4: How long for your to make a new products?
A: Usually 20-35days for the drawing ones and 35-60 days for the sampled ones.
Q5: What is the payment method?
A: Our payment method: T/T, WEST UNION, PAYPAL.
Q6: How is the quality?
A: Strict control before shipment.
Q7: What are our major market?
A: Our main markets are Middle east, Africa, Southeast Asia and South America, European…
