Home > Products > Semi Trailer > Sinotruck 3 axles 45tons drop sidewall cargo semi trailer

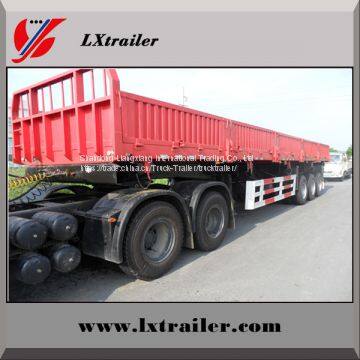

Sinotruck 3 axles 45tons drop sidewall cargo semi trailer
- 500 Unit / Units per Month
- Tianjin port
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 25 days
You May Like
Product Details
| Brand Name | Liangxiang brand | Place of Origin | China | |
| Model Number | LX14562 | Material | Steel | |
| Size | 12500*2500*3400 | Certification | CE | |
| Type | Semi-Trailer | Max Payload | 45t |
Product Description
DESCRIPTION | Side Wall Semi-Trailer | |||
MAKE | LiangXiang | MODEL | ||
SPECIFICATIONS | ||||
PARAMETER | ||||
OVERALL DIMENSION (mm) | Length | 12300 | ||
Width | 2500 | |||
Height | 2750 | |||
WEIGTH RATING (kg) | Kerb. Weight | 7800 | ||
Payload | 45000 | |||
Total Mass | 52800 | |||
WHEELBASE (mm) | 6800+1310+1310 | |||
MAIN FRAME | ||||
DESCRIPTION | Heavy duty and extra durability designed high tensile steel Q345B, welded by automatic Submerged-Arc processes 500mm height Beam | |||
TOP FLANGE (mm) | 14 mm Width | |||
MIDDLE FLANGE (mm) | 8mm | |||
BOTTOM FLANGE (mm) | 16 mm Width | |||
PLATFORM | ||||
STRUCTURE (mm) | Front & Rear | 2 | ||
Right & Left | 2 | |||
Floor | 3 | |||
SUSPENSION | ||||
Type | One Couple of Tri-axle Mechanical Suspension | |||
DESCRIPTION | Six Sets of 10 pieces 13x100mm leaf spring | |||
AXLE | ||||
MAKE & BRAND | Fuwa alxe | |||
WEIGHT RATING & TOTAL AXLE | 13000kg x 3 | |||
KINGPIN | ||||
TYPE | One unit of #90 SAE standard welded Kingpin | |||
LANDING GEAR | ||||
TYPE | 28T, 2 Speed, manual operating, heavy duty landing gear | |||
BRAKE SYSTEM | ||||
TYPE | A system with emergency brake and parking brake; Dual line- air brake,piggyback spring on all axles;Two units of WABCO RE 4 relay valve(or equivalent); Four units of T30/30 spring brake chamber; Two units of T30 brake chamber, two units of 40L air tanks; two units of standard copper air-connector. | |||
TIRE & RIM | ||||
RIM SIZE X NUMBERS | 8.5 -20 x 12 pieces | |||
TYRE TYPE & SIZE X NUMBERS | 11.00R20 x 12 pieces | |||
SPARE WHEEL CARRIER | One set of spare wheel carrier | |||
ELECTRICAL SYSTEM | ||||
VOLTAGE | 24 volt standard 7 pin plug SAE / ISO1185 socket, support from tractor | |||
ELECTRICAL APPLIANCES | Tail lamp with turning signal, brake light & reflector, Side lamp etc. One set of 6-core standard Cable | |||
FINISHING | ||||
COATING | Sand blasting processing on rust– proof protection. One coat of anti corrosive primer | |||
PAINTING | Two(2) coat of finishing paint, body color and black color flame | |||
ACCESSORIES | ||||
STANDARD | One tooling box with a set of standard trailer tool | |||
