Short Installation Period Hot-dipped Galvanized Livestock Fence
- Tianjin or as request
You May Like
-
Galvanized Wire Mesh Roll Wire Fencing,Metal Fencing With 3d Folded
-
High Strength Galvanized,Pvc 3d Fence Panel
-
V Guard Mesh Fencing Face to USA Market
-
358 Industrial Security Mesh/anti-climb Fence/steel Security Fence
-
Post of Using Three Strands or Barbed Wire Palisade Fencing
-
China Factory Powder Coated Stainless Steel Security Mesh
Product Details
| Place of Origin | Hebei, China | Brand Name | FR | |
| Model Number | FR-22 | Material | Other, Low-Carbon Iron Wire, Low-Carbon Iron Wire, high-quality carbon steel wire and stainless steel wire | |
| Type | Electric Wire Mesh | Application | Fence Mesh | |
| Hole Shape | Square | Aperture | weft 15-65cm and warp 6-15cm | |
| Wire Gauge | Set and bottom 2.5mm;In sink 2.0mm |
Product Description
Specifications
livestock fence1 Simple in structure;
2 Easy maintenance;
3 Short installation period.
live stock fence
Product Introduction
Grassland fence also called Cattle Fence, Sheep Fence
Be made by automated machine, offer high strength and tensile strength, provide safety fencing
against fierce striking of cattle, horse or goats. Grassland fence makes an ideal fencing material
for grassland husbandry.
Specification
Opening in cm: (Warp) 15-14-13-11-10-8-6; (weft) 15-18-20-40-50-60-65;
Fence height: 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.4m;
Length: 115 inch (50m) or 330 inch (100m);
Sizes of mesh opening, roll height and length can be customized.
NO | Specification mesh
| Gross Weight | Set and bottom silk Diameter | In silk | Volume diameter (mm) | ||
Type | Specification | ||||||
1 | 7/150/813/50 | 102+114+127+140+ 152+178 | 19.3 | 2.5 | 2.0 | 270 | |
2 | 8/150/813/50 | 89(75)+89+102+114+ 127+140+152 | 20.8 | 2.5 | 2.0 | 270 | |
3 | 8/150/902/50 | 89+102+114+127+140 +152+178 | 21.6 | 2.5 | 2.0 | 270 | |
4 | 8/150/1016/50 | 102+114+127+140+ 152+178+203 | 22.6 | 2.5 | 2.0 | 270 | |
5 | 8/150/1143/50 | 114+127+140+152+ 178+203+229 | 23.6 | 2.5 | 2.0 | 270 | |
6 | 9/150/991/50 | 89(75)+89+102+114+ 127+140+152+178 | 23.9 | 2.5 | 2.0 | 270 | |
7 | 9/150/1245/50 | 102+114+127+140+ 152+178+203+229 | 26.0 | 2.5 | 2.0 | 270 | |
8 | 10/150/1194/50 | 89(75)+89+102+114+127+ 140+152+178+203 | 27.3 | 2.5 | 2.0 | 270 | |
9 | 10/150/1334/50 | 89+102+114+127+140+ 152+178+203+229 | 28.4 | 2.5 | 2.0 | 270 | |
10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+ 152+178+203+229 | 30.8 | 2.5 | 2.0 | 270 | |

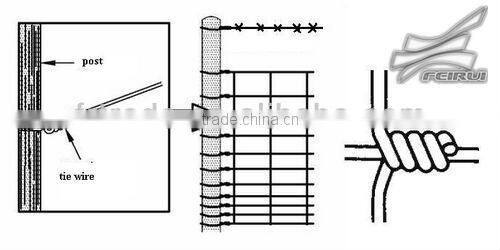

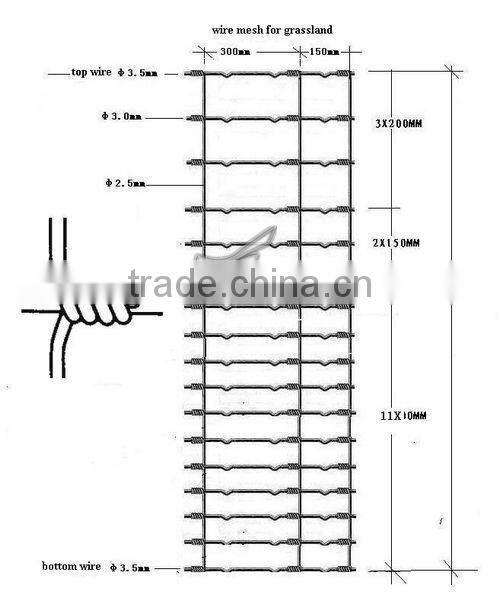

Diagram

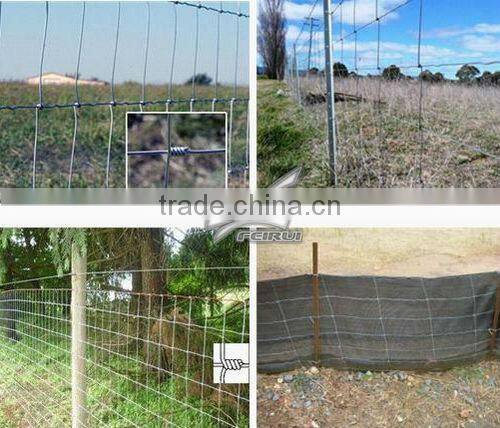

Application
