Palisade Fence Panel With Finishing Galvanised and Polyester Powder Coated to Any RAL
- Tianjin
- T/T
You May Like
-
2013 Direct Factory Price Hot Galvanized 3d Fencing Panels
-
Securifor 358 Security Fencing(hot Sale)
-
Palisade Fencing With Finishing Galvanised and Polyester Powder Coated to Any RAL
-
Short Installation Period Hot-dipped Galvanized Livestock Fence
-
Galvanized Wire Mesh Roll Wire Fencing,Metal Fencing With 3d Folded
-
High Strength Galvanized,Pvc 3d Fence Panel
Product Details
| Place of Origin | Hebei, China | Brand Name | FR | |
| Model Number | FR-10 | Material | Other, plate, Galvanized Iron Wire | |
| Type | Other, fitting with bolt | Application | Other, schools, commercial and industrial areas | |
| Hole Shape | Square | Aperture | spacing 150mm | |
| Wire Gauge | width of plate 65-70mm |
Product Description
Palisade Fence panel Description
Steel palisade is an excellent security fencing, very strong steel with sharp points make it hard to climb over.
Pales
'D' Profile - 3.5mm Security
'W' Profile - 3mm Security
Rails
40x40mm 45x45mm 50x50mm
Steel Angle Rails connected with 12mm cup sq.bolts and Permacones.
All rails are fully punched for pale attachment and are optionally available with one or two support feet per bay.
Posts
100 x 55 / 102 x 44 /120x74

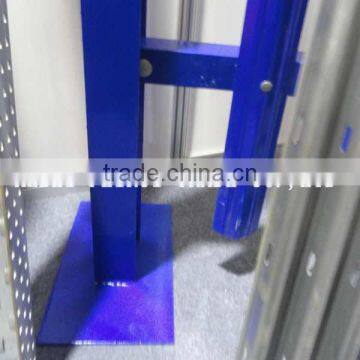

Available with optional base plates, wall mounting or cranked option.

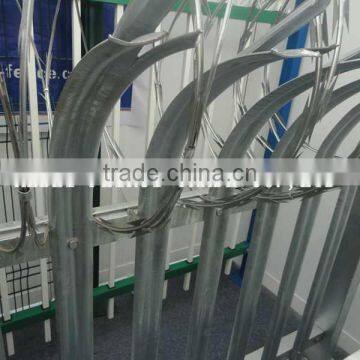

Posts are also available manufactured for use with three strands or barbed wire.

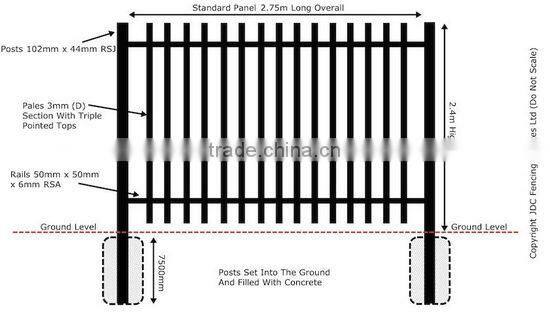

Drawing
Fittings
Rivets and Collars - Bolts and Permacone nuts: M8 ('snap-off' / anti-vandal)
Finishes
Self-Colour for self applied finish
Galvanised, hot-dipped galvanised
Galvanised and Polyester Powder Coated to any RAL or BS colour.
Height
Heights available from 0.9m to 3.6m

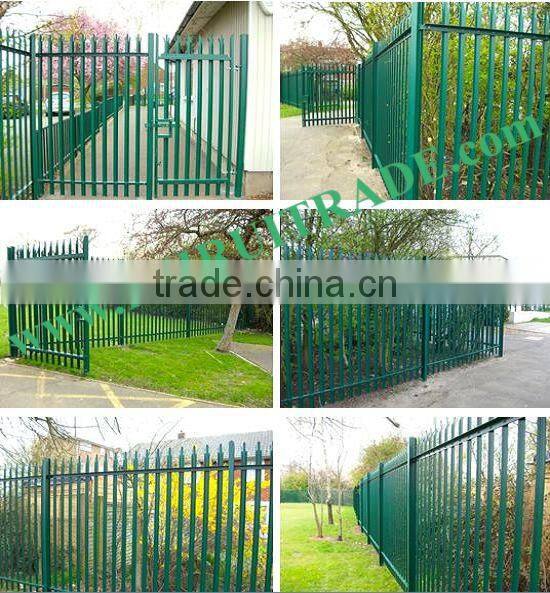

Picture Show
Palisade Fencing Applications
Steel palisade is most commonly used for medium level security environments, such as schools,
commercial and industrial areas.
Palisade Fencing Options
Also available gates to match fencing, either automated or manual and vehicle or pedestrian access.
