Egypt wire demister pad

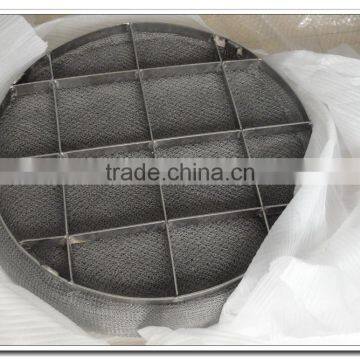

 Demister pad

It is also known as mist eliminators or sprays. This is a kind of high efficiency separation devices, used throughout all kinds of process industries, to remove liquid droplets from gas or vapour streams.

Demister pad

Applications: Chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping and environment protection. Demister pad is mainly used to eliminate streams with diameter of more than 3μm to 5μm.

    Features:1. Simple structure with light weight.
                     2. Less pressure drop and big surface.
                     3. High demisting efficiency.
                     4. It is convenient for installation, operation and maintenance.
                     5. Long service life.

    Demister pad

Specifications:

Standard type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model :40-100 60-150 ,140-400
Common diameter :0.20-0 .45 mm
Form code: SP
Weight capacity: 168 Kg/m³
Specific surface area: 529.6 m^2/m³
Porosity : 0.9788ε

High efficient type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 60-100 80-150 200-400 80-100  90-150
Common diameter : 0.12-0.45mm
Form code: HR
Weight capacity: 128 Kg/m³
Specific surface area: 403.5  m2/m³
Porosity : 0.9839ε

Shock absorption type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 20-40, 30-80, 40-120,50-120
Common diameter : 0.21mm
Form code: HR
Weight capacity: 168 Kg/m3
Specific surface area: 529.6 m2/m3
Porosity : 0.9788ε
