Stainless Steel Demister Pads

Specifications

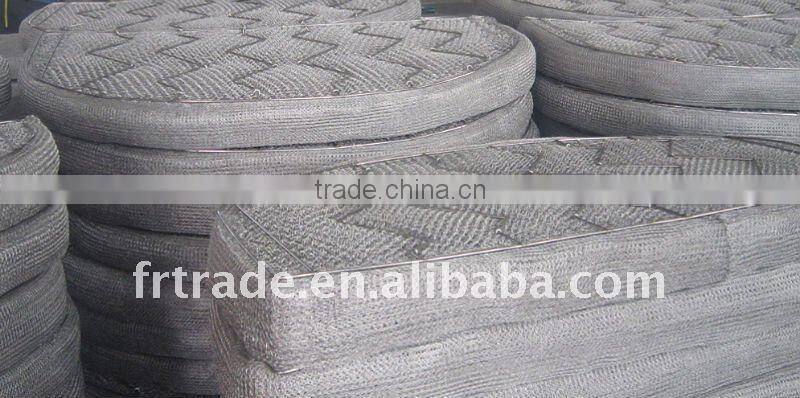

SS Demister Pads

It is also known as mist eliminators or sprays. This is a kind of high efficiency separation devices, used throughout all kinds of process industries, to remove liquid droplets from gas or vapour streams.

     Applications: Chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping and environment protection. Demister pad is mainly used to eliminate streams with diameter of more than 3μm to 5μm.

    Features:1. Simple structure with light weight.
                     2. Less pressure drop and big surface.
                     3. High demisting efficiency.
                     4. It is convenient for installation, operation and maintenance.
                     5. Long service life.

    Specifications:

Standard type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model :40-100 60-150 ,140-400
Common diameter :0.20-0 .45 mm
Form code: SP
Weight capacity: 168 Kg/m³
Specific surface area: 529.6 m^2/m³
Porosity : 0.9788ε

High efficient type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 60-100 80-150 200-400 80-100  90-150
Common diameter : 0.12-0.45mm
Form code: HR
Weight capacity: 128 Kg/m³
Specific surface area: 403.5  m2/m³
Porosity : 0.9839ε

Shock absorption type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 20-40, 30-80, 40-120,50-120
Common diameter : 0.21mm
Form code: HR
Weight capacity: 168 Kg/m3
Specific surface area: 529.6 m2/m3
Porosity : 0.9788ε
