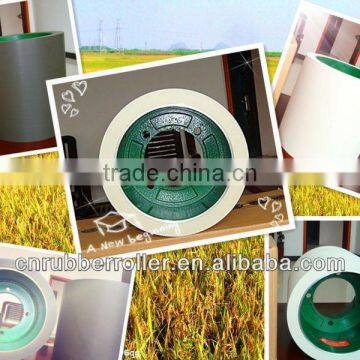

10 inch rubber roller machine

Specifications

Specification of Rubber rollers

Rubber Roller Character:

1. Hardness is 90 ~95 degrees;
2. Excellent in heat and abrasion resistance;
3. Offering very strong bonding between rubber and drum;
4. High shelling efficiency up to 95%;
5. The SBR and NBR rice huller rubber roller can be options.
6. Elastic stiffness, Strong plasticity under the high hardness, moderate grain force, high roughness, low cardamine.
7. Good wear resistance, long using period. trong temperature, no climate impact, not deformation, soft, anti-tear at high-speed.
8. Health and non-toxic, no pollution to rice and bran, clean, bright white grain of rice, pure color quality.

the leadership pays a great attention to explore and inport the talents since the entrprise established. we have gotten a strong technology advantage and obtain a stable market. the company marches on success for workers' development. this business goal ensure our enterprise to be invincible.

Usage:

1. Rice hulling rubber is the main part of rice huller machine, because of speed difference of veer and reversion between two rubber rollers, paddy are torn up by two rubber rollers, in the end, rice grains come out.
2. NBR roller is the 2nd generation of rice huller rubber roller, is adopted 100% NBR rubber materials, the original color is Amber with innocuity, and its outputs will be two or three times more than SBR roller at least.
3. We are pleasure to offer the main styles of hulling rubber rollers in our company. Our enterprise also can design special product according to your individual requirement.

Attentions:

1. Handle carefully during the transportation.
2. Store in dry place, away from Acid, Alkali, Salt, oil, and dirty, forbidden to put under sun for long time.
3. Take sands away from the paddy; keep paddy dry and cleaning when using the rollers.
4. Two rollers should be at the same lever, the space must be equal.
5. The paddy inputting should be keeping the balance.
6. keep the rate of the re-hulling under the limited
7. Don’t make the machine work for a long time, in case effect the hulling capacity.
8. The surrounding temperature is better under the 50°C.
9. Change the fast and slow roller at a certain time.

   Type	Wheels Type					Nested
   Spec. (Inch)	4	6	8	10	12	14	20	25	28
   External Diameter (mm)	223±1.0	223±1.0	225±1.0	255±1.0	270±1.0	227±1.0	258±1.0	258±1.0	258±1.0
   Length(mm)	100±1.0	152±1.0	200±1.0	254±1.0	300±1.0	355±1.0	508±1.0	635±1.0	708±1.0
   Thickness of Rubber (mm)	20±0.5	20±0.5	25±0.5	24.5±0.5	30.5±0.5	30±0.5	30.5±0.5	30.5±0.5	30.5±0.5
   Color	Brown, white, amber
   Hardness Shore A	90-95degree
   Brand	Roaring Lion, QiaoWang,Yashi,OEM
