High power Marine gearbox bearing 29418

High power Marine gearbox bearing 29418

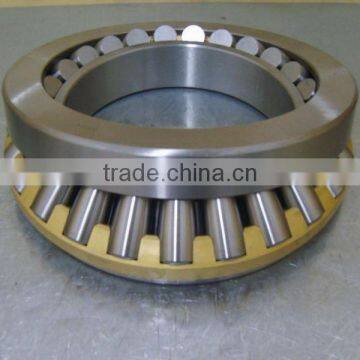

Introductions of marine gearbox bearing 29418

Marine Gearbox Bearing 29418  is widespread dimensions thrust spherical roller bearings, also named self-aligning roller bearings as the type of bearing have self aligning ability as such will tolerate misalignment and deal with both axial and radial loads simultaneously. And these bearings can support very heavy axial loads and permit relatively high speed operation.

  The rollers of these bearings are of spherical shape, and the spherical raceway surface of the housing washer is selfaligned. Spherical roller thrust bearings are featured by the extremely big axial load carrying capacity and meanwhile they can also carry cetrain radial load. Oil lubrication is commonly used while working. Applications of these bearings can be found in hydroelectric generators, vertical motors, propeller axle of vessels, tower cranes and squeezing presses.

1): Able to accommodate misalignment
2): Suitable for high axial and some radial loads
3): Relatively high speed ratings
4): Series: 29200, 29300, 29400,
5): Application examples: Heavy vertical shafts, injection moulding machines, etc.

Thrust roller bearings for axial load mainly axial, radial joint load, but the radial load should not exceed 55% of the axial load. With other thrust roller bearings compared to such bearings lower friction coefficient, high speed, and for aligning performance

 Descriptions

Thrust roller bearings are separable bearings, can only withstand axial load and a slight impact, to limit the shaft (or shell) of the

axial displacement in one direction, it can be used as single-axis to the position. But its carrying capacity is far greater than the thrust ball bearings. Roller rolling, because the roller ends

 of lines at different speeds, the roller raceway in the ring sliding inevitably arise, so such bearing speed limit lower than the thrust

 ball bearings, usually only for low speed applications. Standard design thrust cylindrical roller bearings with machined metal solid

cage, according to user requirements, but also can be other types or material cage. Thrust tapered roller bearings can withstand

axial load, one-way bearing to limit axial displacement, it can be used as a one-way axial positioning.

Features :
1 The bearings  are principally provided with two rows of symmetrical spherical rollers and a common sphere raceway in

out ring, the two inner ring raceways are included at an angle to the bearing axia.

2 The bearings have good selfaligning ability and can operate when the shaft deflection under load or the shaft deflection

 under load or the shaft misaligning in mounting, and their permissible aligning angle is 1 to 2.5 degree.

3 The bearings have heavy load carrying capacity and anti-impact ability, in addition to radial loads, they also can carry axial loads in two directions

Model numbers

More questions please make a inquiry!
