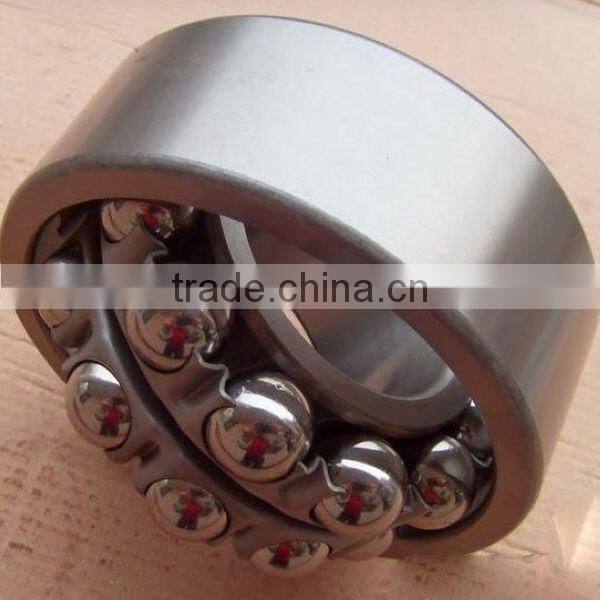

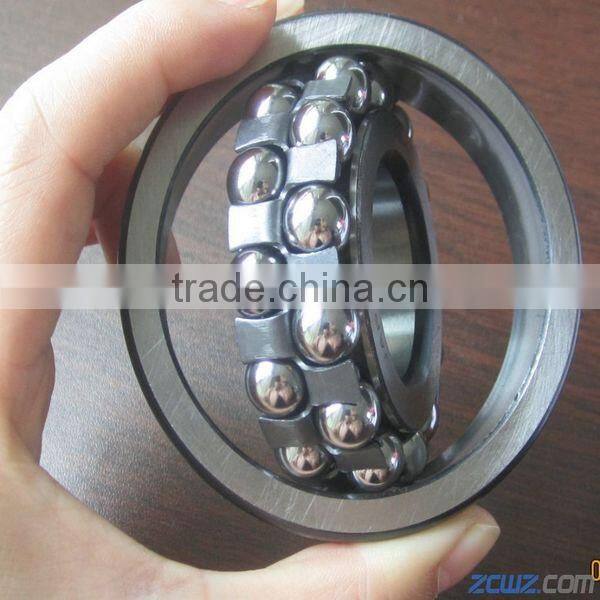

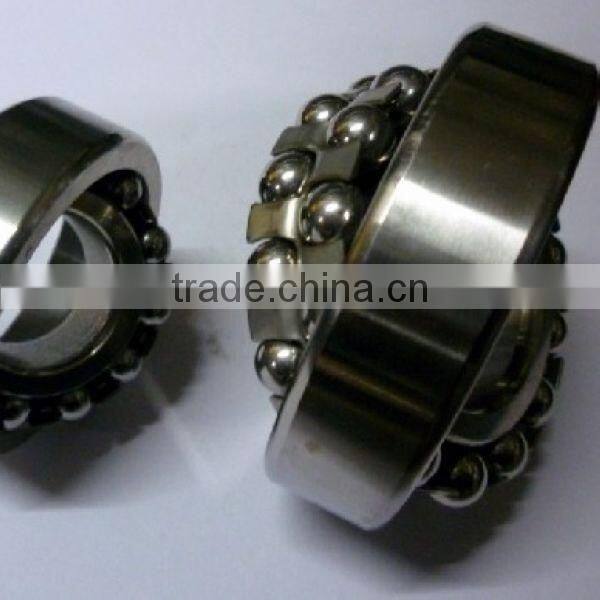

Self Aligning Ball Bearing 80x140x26mm Ball Bearing 1216

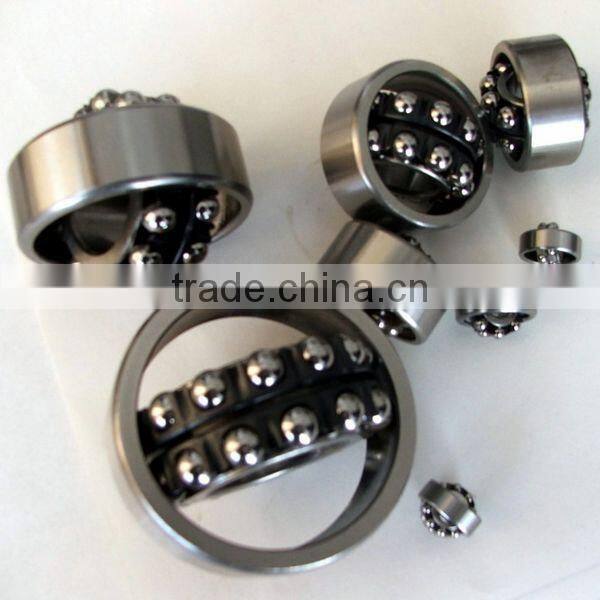

Self-aligning Ball Bearings

Deal Brand

CLUNT

Principal

d

80mm

D

140mm

T

26mm

Basic loading rating

Dynamic Cr

39.5KN

Staic Cor

16.8KN

Speed ratings

grease

4300r/min

Materials:

Gcr15

Bearing Retainer

Nylon,Steel,Brass

Grease

SRL Alvanin,SRI2 Chevron,ordinary grease etc.

Seal Type

open

Module Series

1026,1027, 1029,1200series

Service

OEM

Quality Standard

ISO9001:2000

Delivery

Within 7-15days after down payment

Payment terms:

A:30% T/T inadvance,70% before shippment

B:100% L/C at sight

Transport terms

by sea or by air

Package:

Single paper box or according to requirements

Performance

1,The most popular types among rolling bearings, widely used in a variety of industries.
2,Radial load and axial load in both directions can be accommodated.
3,Suitable for operation at high speed, with low noise and low vibration.
4,Sealed bearings employing steel shields or rubber seals are filled with the appropriate volume of grease when manufactured.

Application

electric motors,   construction machinery,   transmission shafts,   gear shafts and various kinds of professional mac

Basic Bearing No.

Main Dimension

Weight   approximate                   kg

cylindrical bore

d                                 mm

D                               mm

B                               mm

1201

12

32

10

0.039

1202

15

35

11

0.051

1203

17

40

12

0.072

1204

20

47

14

0.120

1205

25

52

15

0.140

1206

30

62

16

0.220

1207

35

72

17

0.320

1208

40

80

18

0.415

1209

45

85

19

0.465

1210

50

90

20

0.525

1211

55

100

21

0.705

1212

60

110

22

0.900

1213

65

120

23

1.150

1214

70

125

24

1.300

1215

75

130

25

1.410

1216

80

140

26

1.730

1217

85

150

28

2.090

1218

90

160

30

2.550

1219

95

170

32

3.210

1220

100

180

34

3.820

1221

105

190

36

4.520

1222

110

200

38

5.330
