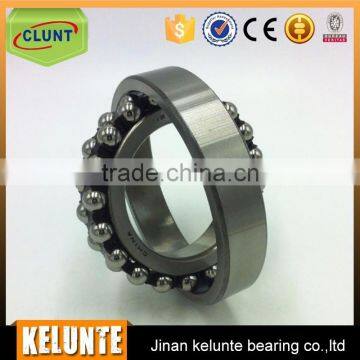

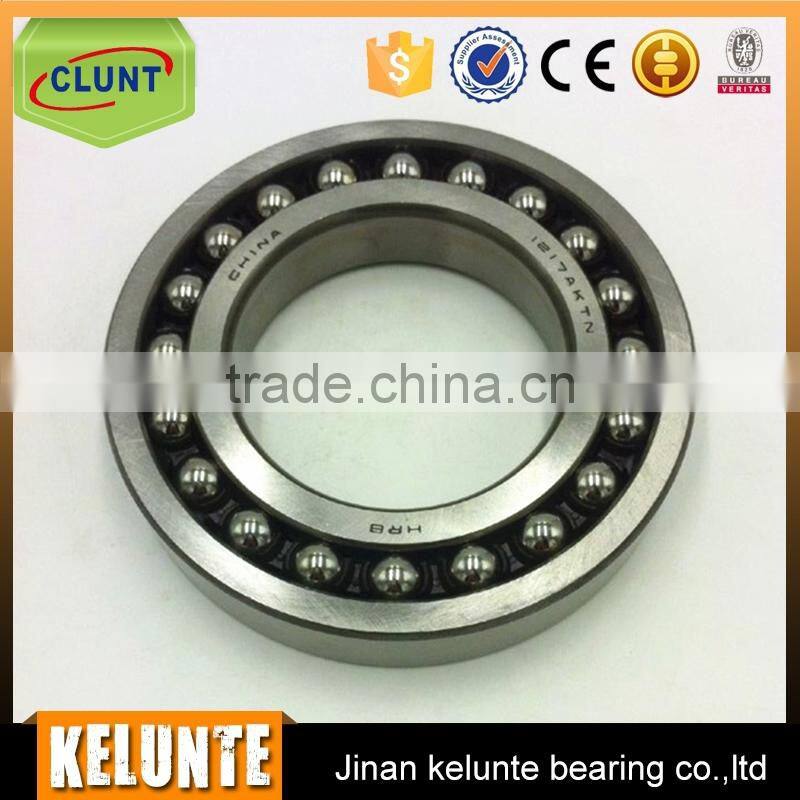

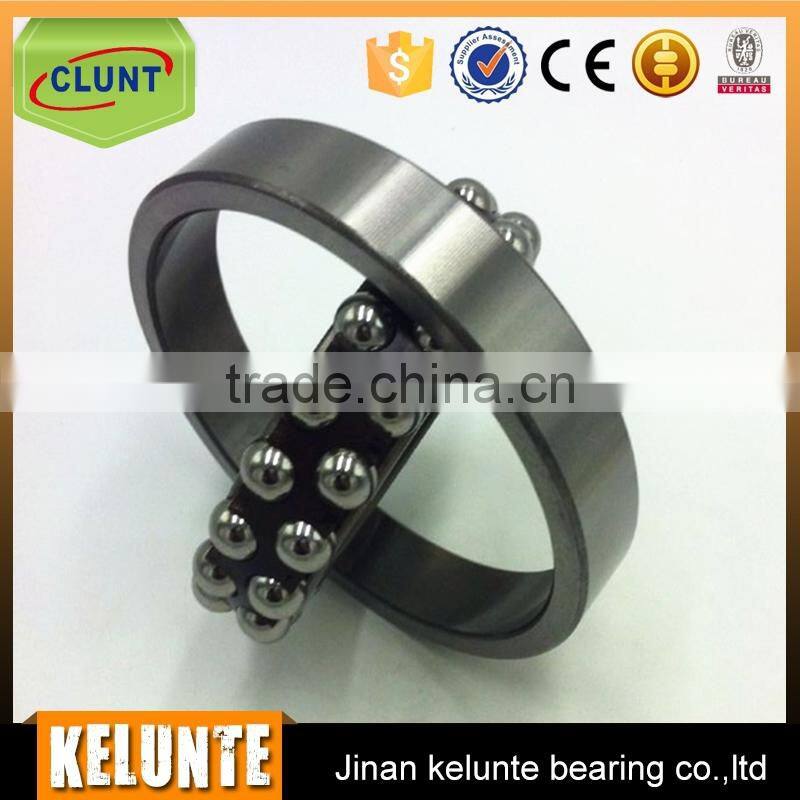

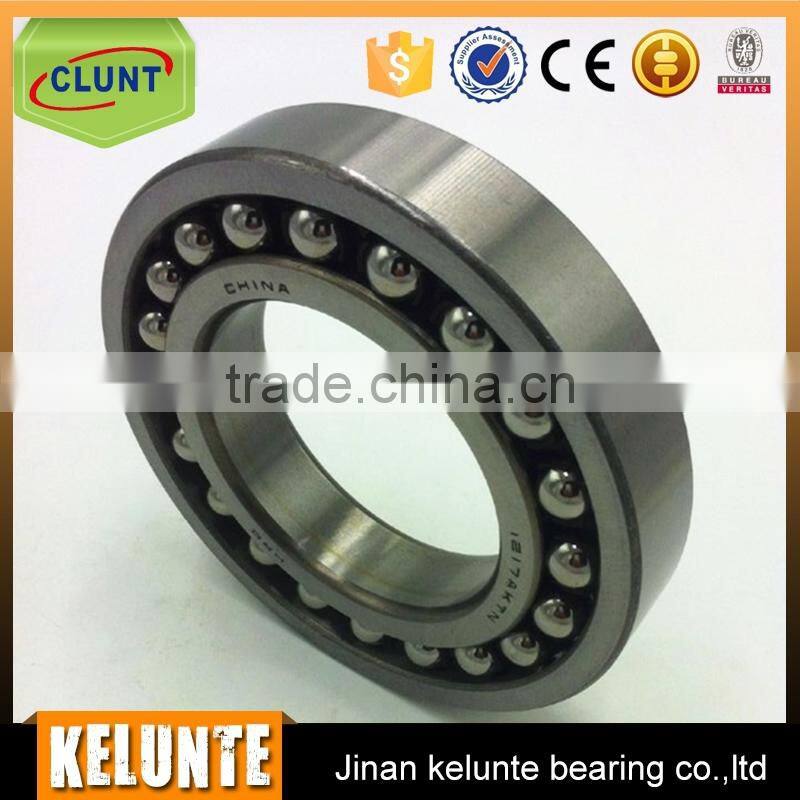

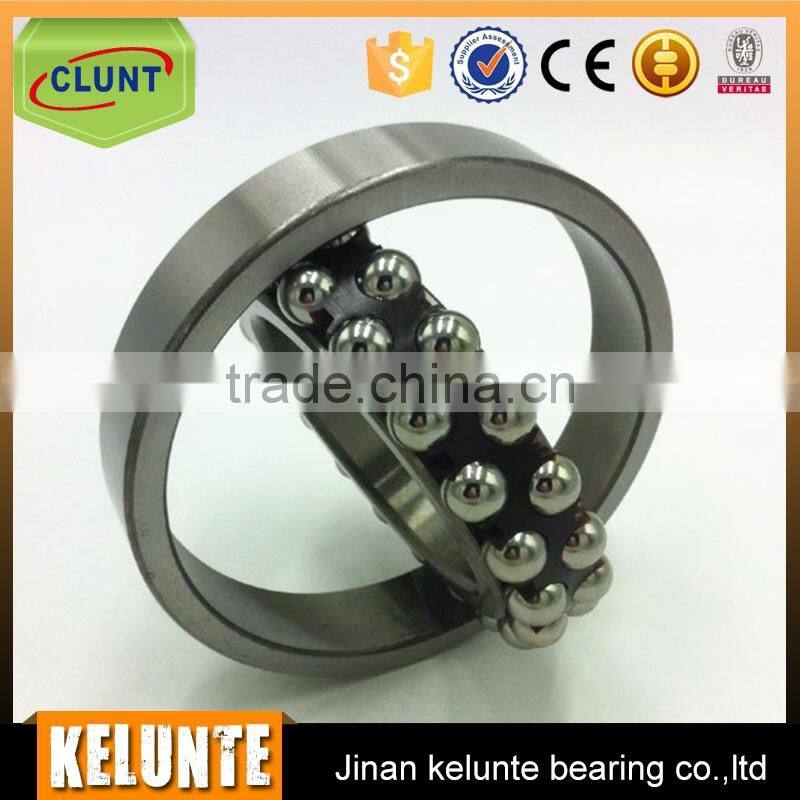

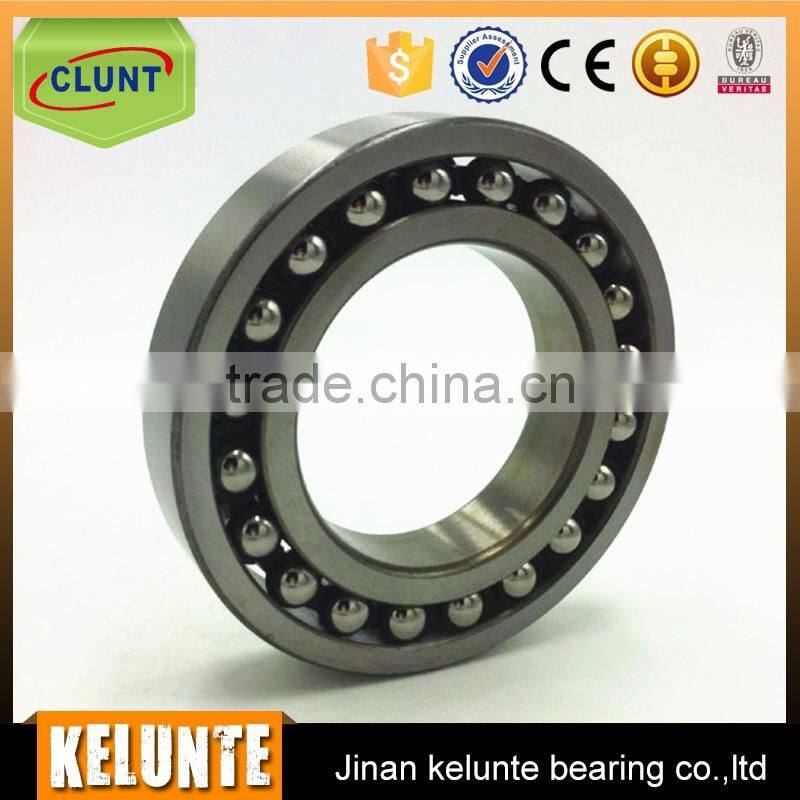

CLUNT Build a bear/bearing supplier/Self-aligning Ball Bearing 1210

Structure

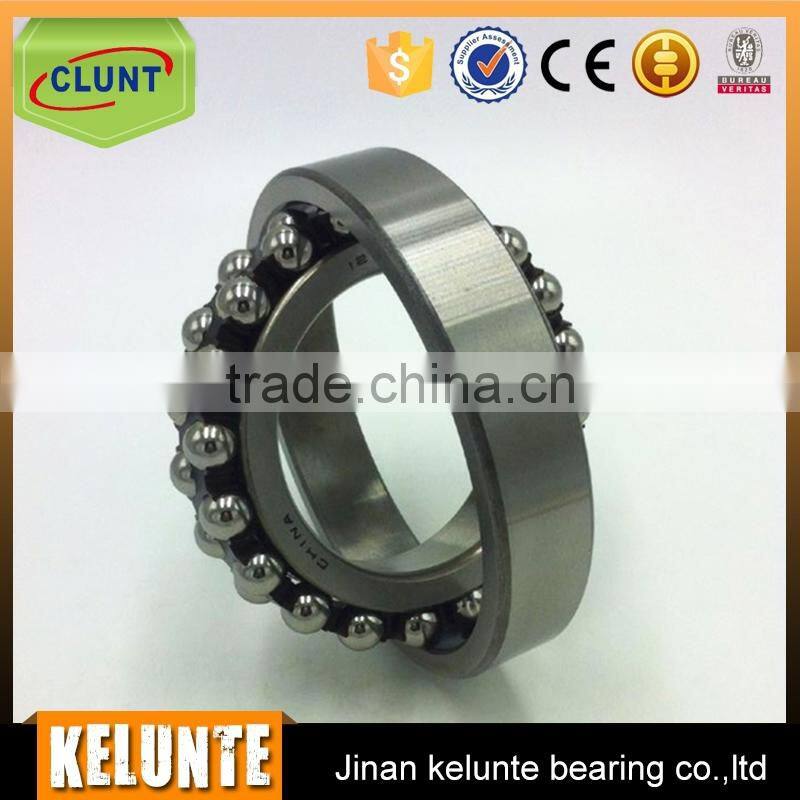

Self-aligning ball bearings are constructed with the inner ring and ball assembly contained within an outer ring that has a spherical raceway. This construction allows the bearing to tolerate a small angular misalignment resulting from deflection or improper mounting. It is particularly suitable for applications where considerable shaft deflections or misalignment are to be expected. Additionally, the self-aligning ball bearing has the lowest friction of all rolling bearings, which enables it to run cooler even at high speeds.

 Tolerance

 self-aligning ball bearings are manufactured as standard to Normal tolerances, except the bore of the bearings with extended inner ring, which is produced to tolerance JS7.

The values of the Normal tolerances are in accordance with ISO 492:2002.

Product Features and Benefits:

• High quality Steel - Ultra clean steel to extend bearing life by up to 80%.
• Pressed steel and polyamide cages available.
• Advanced Grease Technology - NSK lubricants that can extend grease life and performance.
• High Grade Balls - Quiet and smooth operation even at high speed.
• Super Finished Raceways - Specially honed to minimise noise and improve lubricant distribution and life.
• Sealed versions available

Produces self-aligning ball bearings to several designs. These are

– open bearings of the basic design

– sealed bearings

– open bearings with an extended inner ring

– self-aligning ball bearing are constructed with the inner ring and ball assembly contained within an outer ring that has a

spherical raceway .This construction allows the bearing to tolerate a small angular misalignment resulting from deflection or improper mounting

Needing attention

1.Self-Aligning ball bearing with the dust cover and seal, has filled in the appropriate grease assembly, not be heated or

 cleaning before installation,and need to be lubricated during processing, the operating temperature is - 30 DEG C to +120 °C.

2.Self-aligning ball bearing main uses: suitable for precision instruments, low noise motor, automobile, motorcycles and

general machinery, most widely used in machinery industry.
